120V Device Station Kit with 4 outlets for Tent-X

Four-Outlet Device Station Kit for Tent-X Controllers

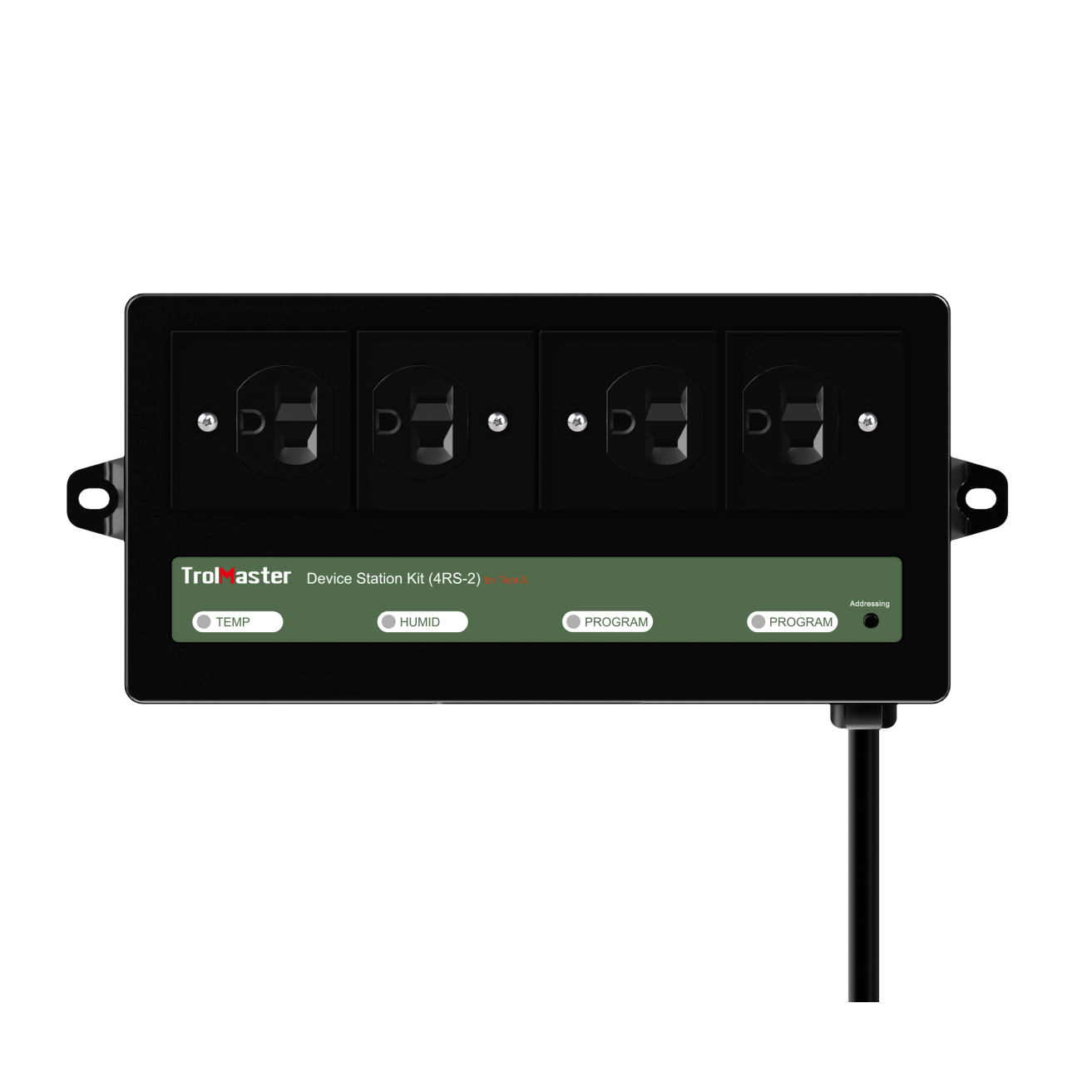

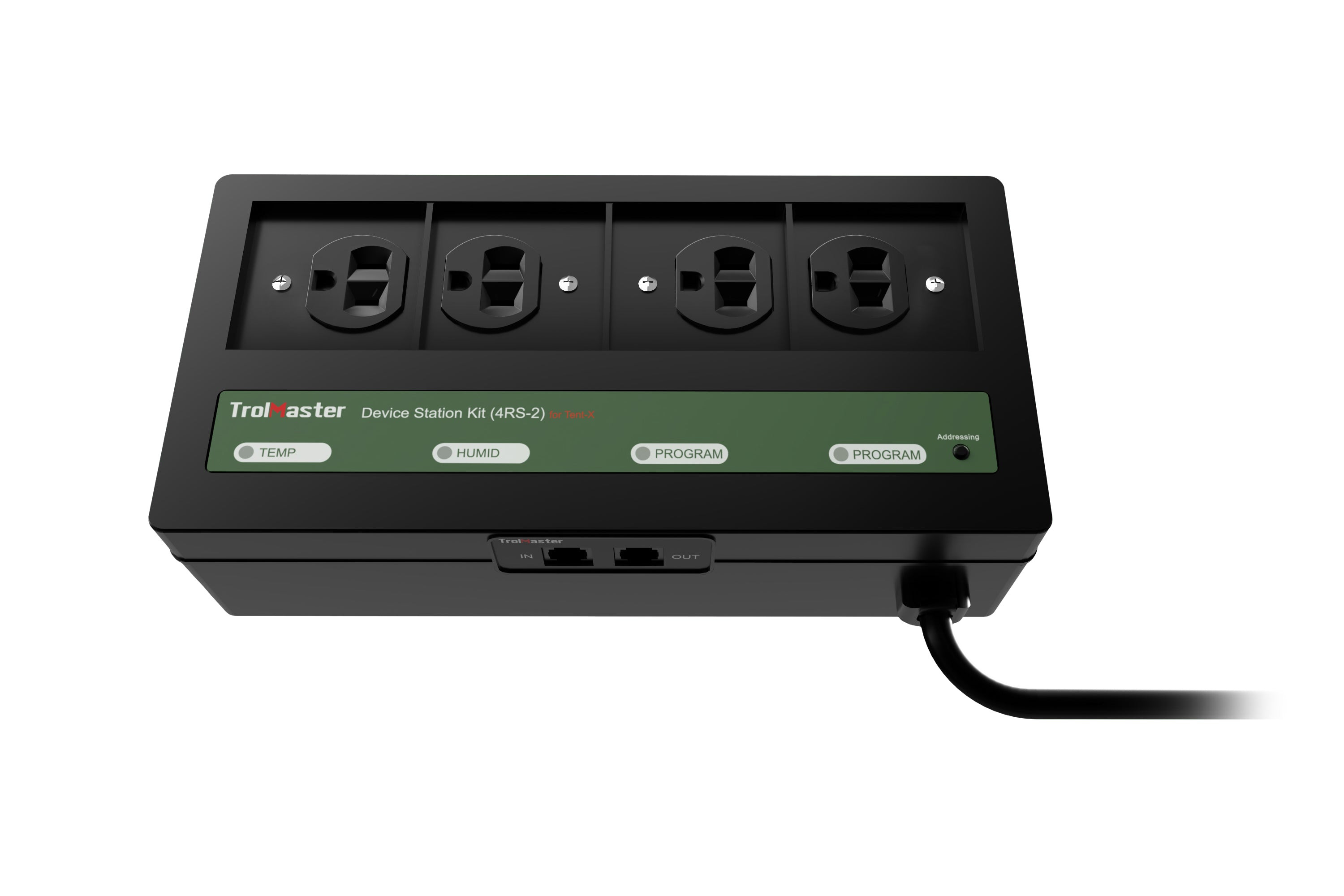

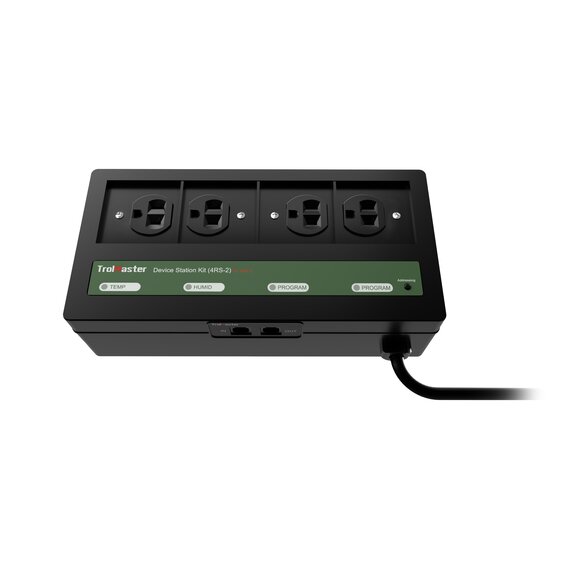

Wiring four separate device modules into a Tent-X controller one at a time takes longer than it needs to when a grower just wants four ready-to-use outlets. The 4RS-2 device station kit condenses that setup into one compact unit, connecting directly to a Tent-X controller through RJ12 cables and delivering four pre-configured outlets without wiring each one separately.

Each outlet is rated for up to 15 amps, defaulted left to right to DST, DSH, and DSP-style outputs, and the kit takes up four device module slots on the controller with plug-and-play cabling.

Key Features & Benefits

• Plug-and-Play Cabling — power cable connects directly to the socket for a fast, tool-free setup.
• Four Pre-Configured Outputs — comes defaulted left to right with DST, DSH, and DSP-style outlets.
• 15A Per Outlet — each output safely handles up to 15 amps for demanding equipment.
• Saves Controller Slots — takes up four device modules at once instead of wiring four separately.

Who Should Use the 4RS-2 Device Station Kit

Growers running a Tent-X controller who need to power several devices, such as fans, humidifiers, or lights, from one compact module without purchasing and wiring individual device stations will find the 4RS-2 suited to that setup.

About TrolMaster

TrolMaster's Tent-X controller line, part of the company's broader environmental-control platform out of Sacramento, California, pairs with device station kits like the 4RS-2 to add pre-configured outlet capacity without individually wired modules.

Frequently Asked Questions

How many outlets does the 4RS-2 kit provide?

Four pre-configured outlets, defaulted left to right to DST, DSH, and DSP-style outputs. That default configuration is set at the factory rather than requiring manual assignment.

How does it connect to a Tent-X controller?

Directly through RJ12 cables, taking up four device module slots on the controller in one connection. The power cable itself connects directly to the socket for a tool-free setup.

What is the maximum amperage per outlet?

Each of the four outlets can safely handle up to 15 amps. That rating covers most fans, humidifiers, and similar grow-room equipment run from a Tent-X system.

What's included in the box?

One complete device station kit, ready to connect to a Tent-X controller. Package dimensions are 275 x 255 x 95mm, and the unit operates on 100-240VAC at 50/60Hz.
