120V Program Device Station, Timer Control Relay w/ cables

Multi-Function Timer and Master Pump Control for Hydro-X

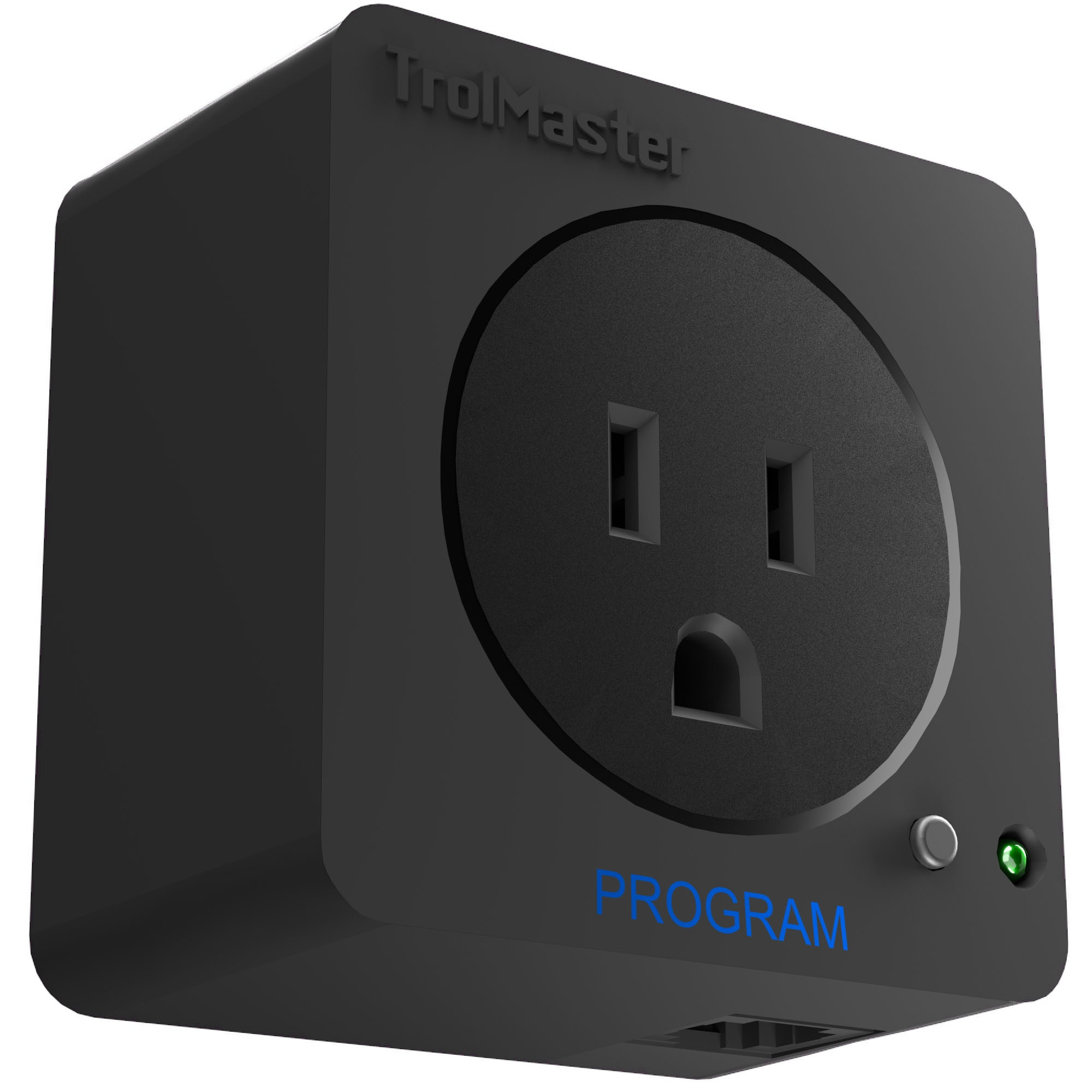

The DSP-1 program device station works as a flexible, multi-function timer for any device rated up to 10 amps at 120 volts or less on your Hydro-X or Aqua-X system.

Beyond basic timing, the DSP-1 can run as a recycling timer with an optional maximum cycle count, or serve as a master pump controller that automatically activates whenever any connected 24VAC irrigation zone turns on.

Key Features & Benefits

• Multi-Function Timer — Set specific times of day or night to activate any connected device.
• Recycling Timer Mode — Configure repeat cycles with or without a maximum cycle limit.
• Master Pump Control — Automatically powers a pump when any 24VAC irrigation zone activates.
• Plug & Play Setup — LED indicator and address assignment make installation straightforward.

Who Should Use the DSP-1 Program Device Station

Growers using irrigation timers or a master pump on an Aqua-X or Hydro-X system who need flexible, time-based or cycle-based control of a 120V device.

Specifications

Input and output voltage range from 100-240VAC at 50/60Hz, with a 10A output current rating. Rated for working temperatures of 32-122°F and humidity of 90% or less. Includes a 16 ft and 4 ft RJ12 cable plus a T-splitter.

Frequently Asked Questions

What's the maximum load the DSP-1 can control?

Any device rated up to 10 amps at 120 volts or less.

Can the DSP-1 act as a master pump controller?

Yes, it can automatically power a pump whenever a connected 24VAC irrigation zone activates.

Does it support recycling timer cycles?

Yes, it can be configured with or without a maximum number of cycles.

What cables are included?

A 16 ft RJ12 cable, a 4 ft RJ12 cable, and an RJ12 T-splitter.
