25" Standard Controller Cabinet for Hydro-X Plus

Mount Hydro-X Plus Components in One Sealed Cabinet

The TrolMaster SCC-3 is a modular electrical enclosure and wire management system built for Hydro-X Plus controllers, giving growers a single waterproof home for power supplies, modules, and splitter boards.

Mounting everything inside one IP56-rated cabinet keeps device stations clean, dry, and organized, while a detachable design and bi-directional RJ12 cabling let you lay out the cabinet to match your own zone count.

Key Features & Benefits

• IP56 Waterproof Rating — Protects mounted components from dust and moisture in grow room conditions.
• All-in-One Module Housing — Holds the controller and device modules in a single enclosure.
• Bi-Directional RJ12 Cabling — Lets you design your own cabinet layout around your zone count.
• Detachable Design — Simplifies access for maintenance and future upgrades.

Who Should Use the TrolMaster SCC-3 Cabinet

growers running a Hydro-X Plus system who want a clean, professional, waterproof installation instead of loose modules and exposed cabling.

Cabinet Capacity and Specifications

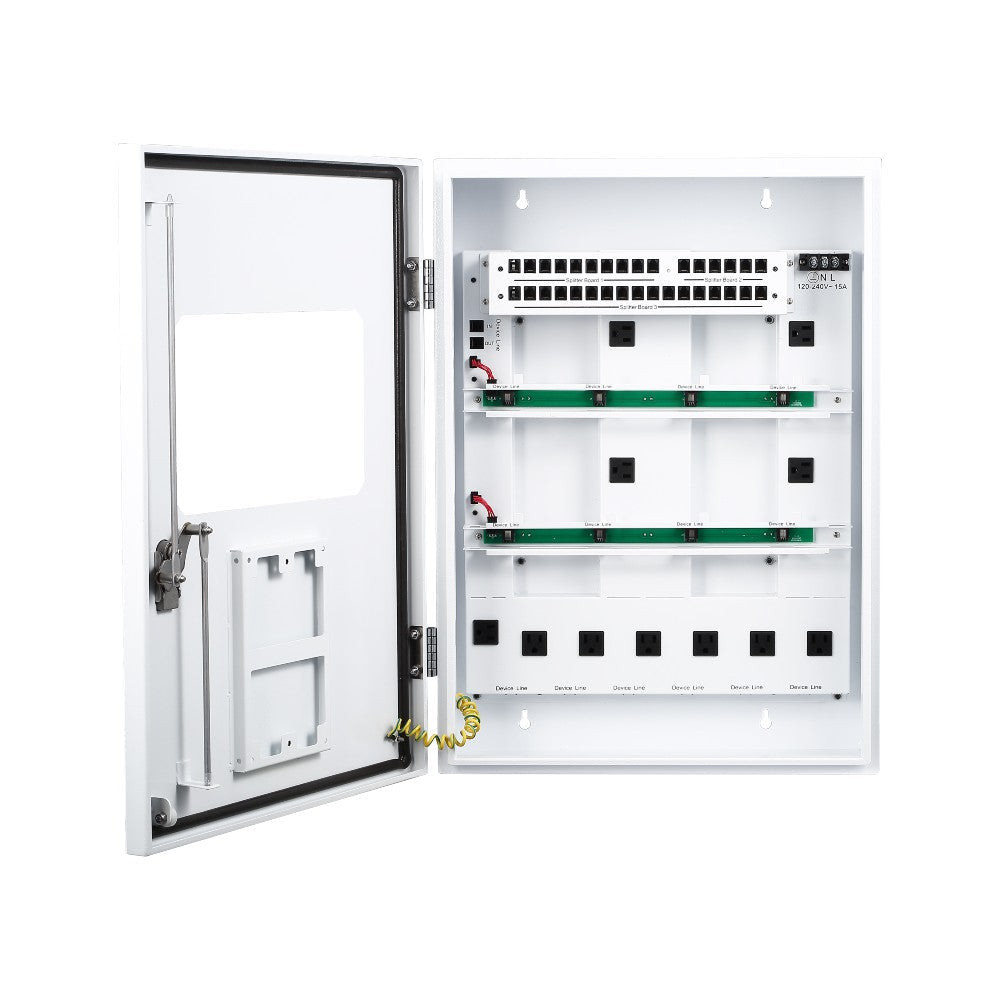

The cabinet includes five splitter boards (10, 6, 17, 2x4, and 6 ports) plus 4+1+6 power outlets, with overall dimensions of 25" (L) x 18" (W) x 6.26" (H). It carries an IP56 rating equivalent to NEMA 4X, handles 32-104°F, runs on 120V input, and is rated for 15A.

Frequently Asked Questions

What does the SCC-3 cabinet include?

It ships with the controller cabinet, an installation manual, 4 long and 16 short RJ12 cables, 4 power cables, and a screw set for OA6-24/OA6-110 power supplies.

Is the SCC-3 cabinet waterproof?

Yes, it carries an IP56 rating, equivalent to NEMA 4X, suited to humid grow room environments.

Which TrolMaster system does the SCC-3 fit?

It is sized and configured for Hydro-X Plus controllers and their associated device modules.

What is the cabinet's input rating?

The cabinet accepts 120V input and is rated for 15A.

Can I customize the cable layout inside the cabinet?

Yes, the bi-directional RJ12 cabling and detachable design let you arrange splitter boards to match your own zone count.
