AXEON 30 Gallon Tank and 4 GPD Chemical Injection System 110V

Precisely Dose Nutrients and Chemicals in Your Water Supply With a 4 GPD Injection System

Chemical injection systems introduce precise, metered amounts of chemical solutions — nutrients, pH adjusters, chlorine, scale inhibitors, or other treatment compounds — into a water supply line. This allows consistent, automated dosing without manual measurement and mixing, which is essential in commercial-scale hydroponic water treatment where volume and consistency both matter.

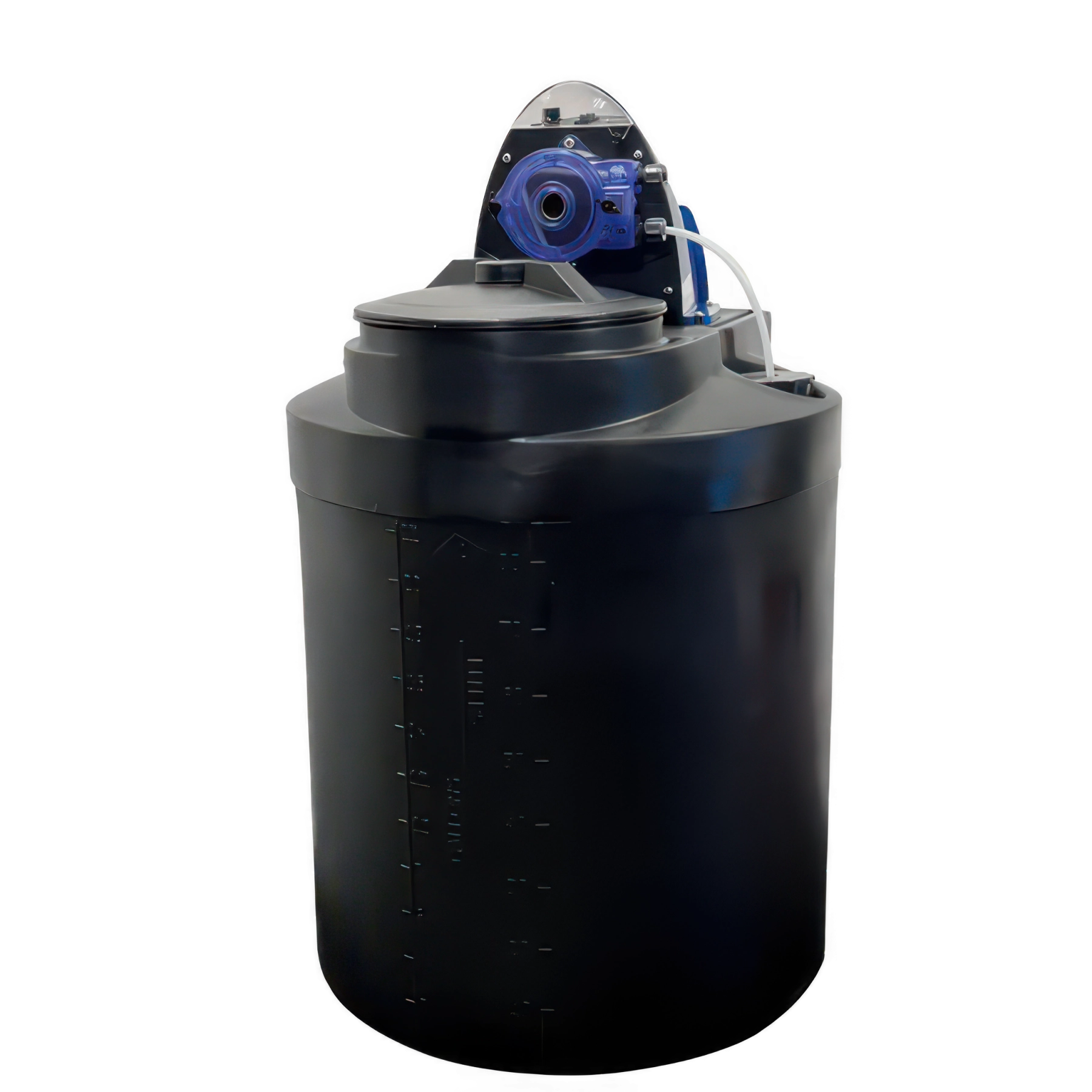

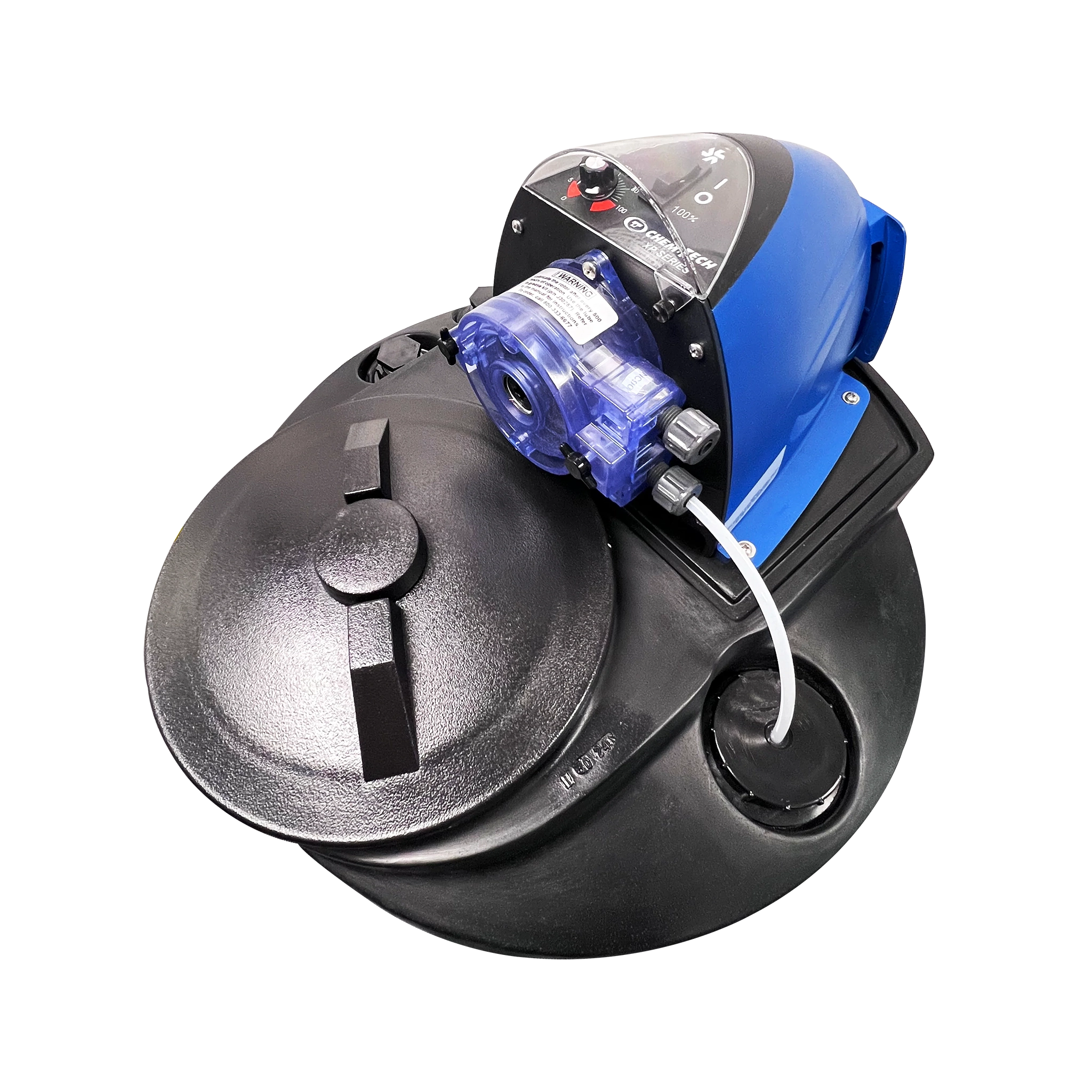

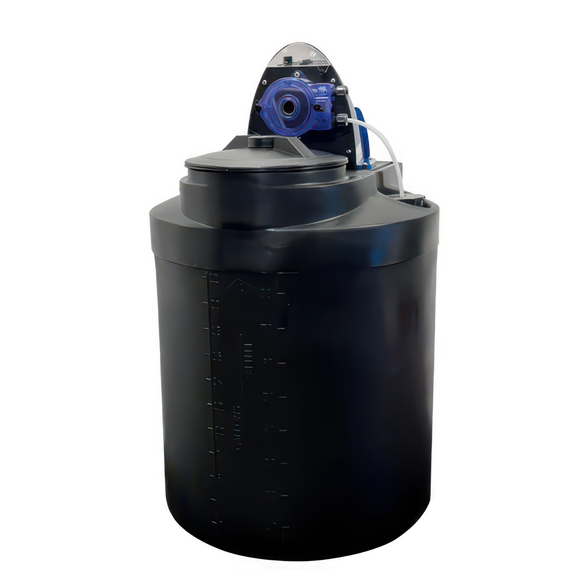

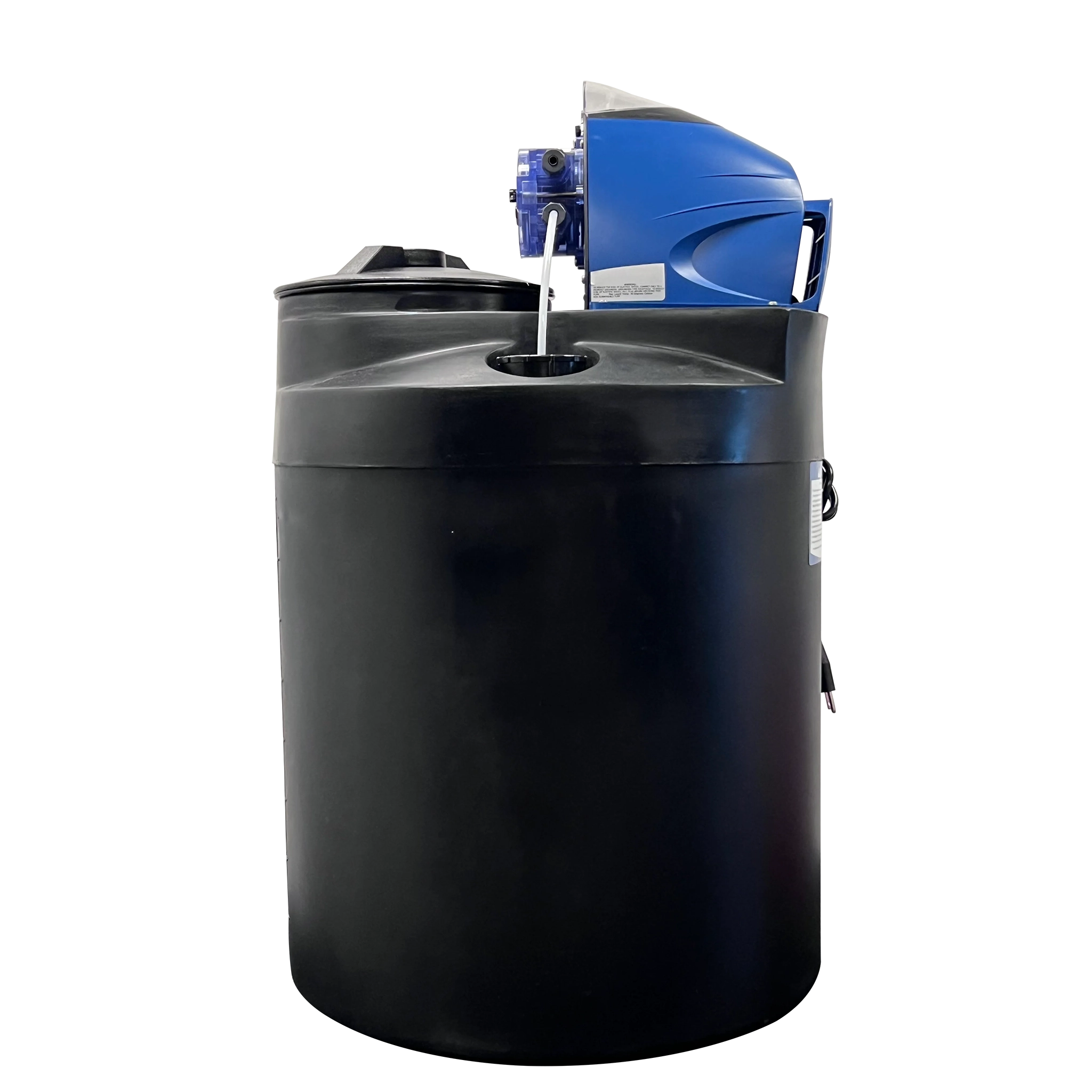

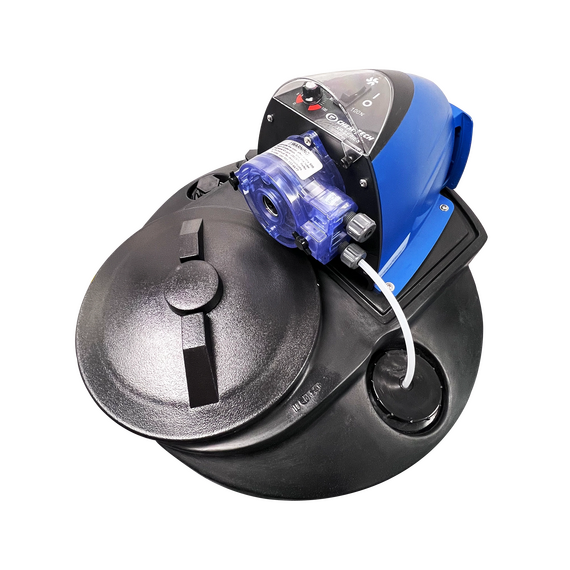

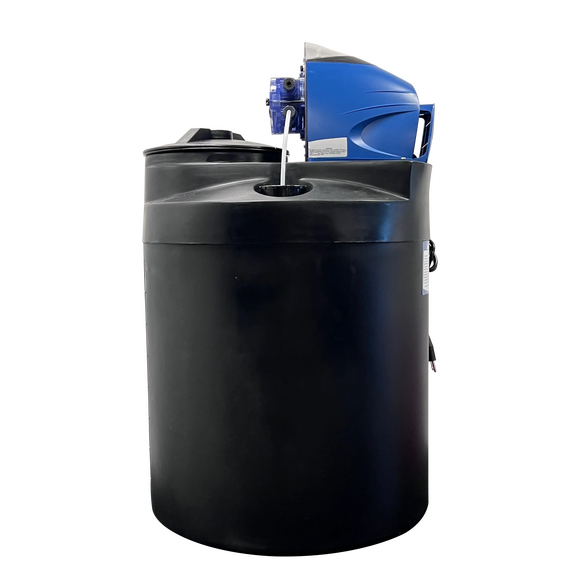

The AXEON 4 GPD chemical injection system combines a 30-gallon polyethylene chemical tank with a 4 GPD (gallons per day) chemical pump, with hoses and fittings included for installation. The system is rated at 110V and is designed for commercial hydroponic, agricultural, and water treatment applications.

Key Features & Benefits

• 4 GPD chemical pump — meters and injects up to 4 gallons of chemical solution per day into the water supply line — appropriate for small to mid-scale treatment volumes.
• 30-gallon polyethylene tank — holds the chemical solution being injected. Polyethylene construction resists corrosion from acidic and basic chemical solutions used in water treatment.
• Hoses and fittings included — everything required for pump-to-tank and pump-to-supply-line connections is included — no separate hardware sourcing required for basic installation.
• 110V rated — designed for 110V electrical systems standard in North American commercial facilities.
• Wide chemical compatibility — handles a variety of treatment chemicals including nutrients, pH adjusters, antiscalants, and disinfection compounds.
• Built to industry standards — designed and built to meet commercial water treatment system standards for reliability and performance.

Who Should Use the AXEON 4 GPD Chemical Injection System

Commercial hydroponic growers and water treatment operators who need to automatically dose treatment chemicals — nutrients, pH adjusters, or scale inhibitors — into a water supply line at a consistent 4 GPD rate, using a self-contained injection system.

Sizing the Injection System to Your Application

The pump rate (GPD) determines how much chemical is injected per day relative to the water flow rate. The 4 GPD pump is appropriate for lower-volume or lower-concentration dosing applications. Match the pump rate to the required injection ratio (chemical volume to water volume) and the total daily water throughput of the system.

Frequently Asked Questions

What is the difference between the 4 GPD and 15 GPD systems?

The pump rate determines the maximum volume of chemical solution the system can inject per day. Choose 4 GPD for lower-volume or lower-concentration dosing needs, and 15 GPD for higher-volume applications or where higher injection ratios are required.

What chemicals can I use in this system?

The AXEON system handles a wide range of treatment chemicals. Confirm compatibility of the specific chemical with the polyethylene tank and pump materials before use, particularly for aggressive acids, bases, or oxidizers.

Does the system include a controller or timer?

The system includes the pump and tank — standalone timer or controller integration depends on the installation. Contact AXEON or your distributor for compatible control accessories.

Is the 30-gallon tank sized appropriately for both the 4 GPD and 15 GPD systems?

Yes — both systems use the same 30-gallon polyethylene tank. The appropriate refill interval depends on the pump rate and daily injection volume. The higher-rate 15 GPD system will require more frequent refilling at full pump capacity.
