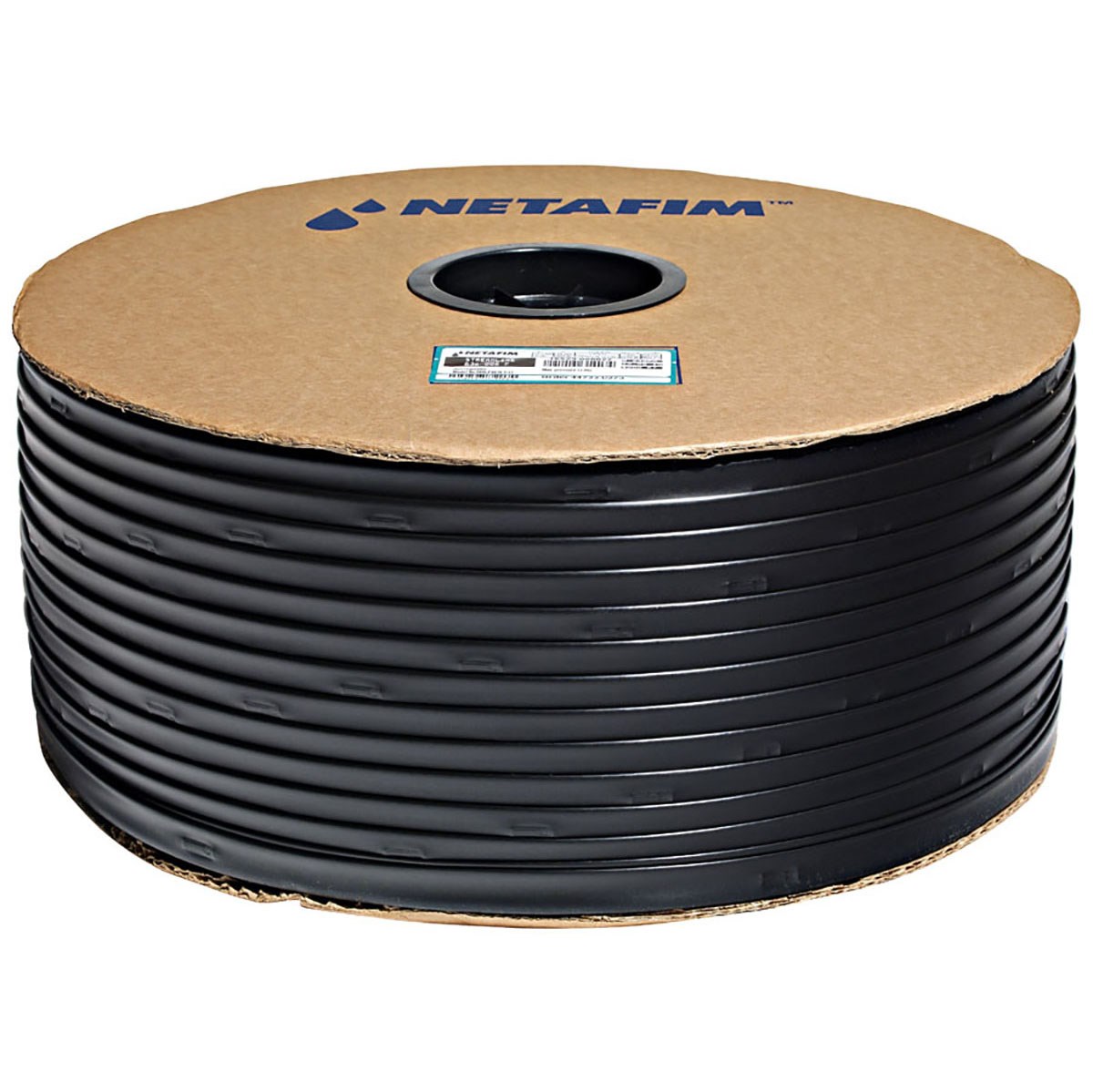

Netafim™ Space-It™ Streamline X Thinwall Dripline – 9000ft, 16mm, 32in Spacing, 0.4 GPH, 8mil

The Netafim™ Space-It™ Streamline X Thinwall Dripline is designed for efficient seasonal row crop irrigation where reliable water delivery, installation durability, and consistent emitter spacing are important. This configuration combines a 9,000-foot roll, 16mm diameter, 8mil wall thickness, 32-inch emitter spacing, and 0.4 GPH flow rate for high-volume agricultural and horticultural irrigation installations.

Streamline X features a non-pressure-compensating emitter design along with outlet protection and external ribbing engineered to help protect the dripline during installation and field use. These features make it well suited for seasonal growing programs where large quantities of dripline must be deployed efficiently across long crop rows.

Rated for 12 PSI operation, the dripline has a listed 0.636-inch inside diameter and 0.638-inch outside diameter. Its black 8mil thinwall construction provides an economical irrigation solution for commercial growers requiring extensive coverage while keeping material use and installation requirements manageable.

What Is Netafim Space-It Streamline X Dripline Used For?

Netafim Space-It Streamline X is a thinwall drip irrigation line designed primarily for seasonal row crop irrigation. Water is delivered at regular intervals through integrated emitters positioned along the dripline, allowing irrigation to be directed along the crop row and into the root zone.

This configuration uses emitters spaced every 32 inches, with each emitter providing a listed flow rate of 0.4 gallons per hour (GPH) at the specified operating conditions.

The 9,000-foot roll format is particularly useful for commercial agricultural operations because long rows can be installed with fewer roll changes and less interruption during field deployment.

Key Features and Benefits

• 9,000-foot roll: Large roll size supports efficient installation across long crop rows and large production areas.
• 0.4 GPH emitter flow: Provides controlled water delivery at each emitter location.
• 32-inch emitter spacing: Emitters are positioned at consistent intervals for planned row crop irrigation layouts.
• 16mm dripline: Common agricultural dripline size for integration into compatible irrigation systems.
• 8mil thinwall construction: Designed to provide economical coverage for seasonal agricultural irrigation programs.
• Non-pressure-compensating design: Provides a straightforward irrigation solution for systems designed around appropriate operating pressures and run lengths.
• Outlet protection: Designed to help protect emitter outlets during installation and field use.
• Ribbed construction: External ribbing helps protect the dripline from damage during installation and handling.
• 12 PSI rated pressure: Designed for low-pressure drip irrigation systems operating at the specified pressure.
• Black tubing: Designed for agricultural and horticultural irrigation environments.
• Installation-focused design: Packaging and markings are designed to help make large-scale field installation easier and more efficient.

0.4 GPH Flow with 32-Inch Emitter Spacing

This Space-It Streamline X configuration features integrated emitters spaced every 32 inches. Each emitter has a listed flow rate of 0.4 GPH, providing growers with predictable emitter placement when planning irrigation layouts.

The wider 32-inch spacing can be useful for crop layouts where irrigation points do not need to be positioned as closely together as configurations using 12-inch, 18-inch, or 24-inch spacing.

Because this is a non-pressure-compensating dripline, system design, pressure, elevation changes, lateral length, filtration, and water quality should all be considered when planning an installation to help achieve the desired irrigation uniformity.

Designed for Seasonal Row Crop Irrigation

The 8mil thinwall construction is designed for agricultural operations where dripline is installed across substantial acreage for seasonal crop production. The combination of a lightweight wall thickness and large 9,000-foot roll helps growers deploy irrigation over long production rows efficiently.

The Streamline X design incorporates protective features intended to withstand the demands associated with installation and normal field use while maintaining an economical thinwall profile.

Ribbed Outer Wall for Installation Protection

Streamline X incorporates external ribbing designed to help reduce damage to the dripline during deployment and handling. This added protection is particularly valuable when thousands of feet of thinwall dripline are installed mechanically or manually throughout a commercial growing operation.

Protecting the tubing during installation helps reduce the potential for damage before the irrigation system is placed into operation.

Protected Emitter Outlets

The dripline also incorporates outlet protection designed to help protect the emitter discharge area during installation and use. This is especially important in agricultural environments where the dripline may come into contact with soil, equipment, crop residue, and other field materials during deployment.

9,000-Foot Roll for Large Irrigation Installations

Each roll contains approximately 9,000 feet of dripline, making this product particularly well suited for commercial operations with long crop rows or substantial irrigation acreage.

Large rolls can help reduce the number of roll changes required during installation and allow growers to deploy significant amounts of irrigation tubing from a single package.

Ideal Applications

The Netafim Space-It Streamline X Thinwall Dripline is well suited for irrigation applications including:

• Seasonal row crops
• Commercial vegetable production
• Field-grown crops
• Specialty crop production
• Commercial horticulture
• Large agricultural irrigation systems
• Low-pressure drip irrigation systems
• Long-row irrigation installations
• Seasonal drip irrigation programs

Netafim Space-It Streamline X Specifications

Frequently Asked Questions

What is Netafim Space-It Streamline X?

Netafim Space-It Streamline X is a thinwall dripline designed for seasonal row crop irrigation. It combines integrated emitters with protective design features intended to support efficient installation and reliable irrigation in commercial growing environments.

What is the flow rate of this Netafim Streamline X dripline?

This specific configuration has a listed emitter flow rate of 0.4 gallons per hour (GPH).

How far apart are the emitters?

The emitters in this Space-It Streamline X configuration are spaced 32 inches apart along the dripline.

How long is each roll?

Each roll contains approximately 9,000 feet of Netafim Space-It Streamline X dripline.

What diameter is the dripline?

The dripline is listed as 16mm with an inside diameter of approximately 0.636 inches and an outside diameter of approximately 0.638 inches.

How thick is the Netafim Streamline X dripline?

This model has an 8mil wall thickness, making it a thinwall dripline intended primarily for seasonal agricultural irrigation applications.

What pressure does this dripline operate at?

The listed pressure for this configuration is 12 PSI.

Is Netafim Streamline X pressure compensating?

No. This Space-It Streamline X configuration uses a non-pressure-compensating design. Irrigation system pressure, lateral length, elevation, and hydraulic design should therefore be considered when determining system layout.

What does 0.4 GPH mean on dripline?

0.4 GPH means each emitter is rated to deliver approximately 0.4 gallons of water per hour under the specified operating conditions. In this model, those emitters are positioned every 32 inches along the dripline.

What does 32-inch spacing mean?

A 32-inch emitter spacing means the integrated drip emitters are positioned approximately 32 inches apart along the length of the tubing.

What does 8mil dripline mean?

The 8mil specification refers to the wall thickness of the dripline. Thinwall products such as this are commonly used in seasonal agricultural irrigation where economical material coverage and efficient installation are priorities.

Is this dripline suitable for row crops?

Yes. The Netafim Space-It Streamline X is specifically designed for seasonal row crop irrigation and commercial agricultural applications.

Why does Streamline X have ribbing?

The dripline incorporates external ribbing to help protect the thinwall tubing from damage during installation, deployment, and normal handling.

What is outlet protection on the Streamline X dripline?

Outlet protection is a design feature intended to help protect the emitter discharge area during installation and field use, where the dripline may encounter soil, crop residue, equipment, and other materials.

Can Netafim Space-It Streamline X be used for permanent irrigation?

This product is primarily designed for seasonal row crop applications. Growers considering multi-season or permanent installations should select dripline based on the expected service life, field conditions, crop type, installation method, and Netafim system design recommendations.

What is the product code for this Netafim dripline?

The manufacturer's product code for this configuration is 16424-000074.

What filtration should be used with Netafim dripline?

Proper filtration is an important part of drip irrigation system design. The appropriate filter type and mesh or micron rating will depend on the water source, water quality, emitter design, flow requirements, and overall irrigation system. Follow Netafim's filtration and system-design recommendations for the specific installation.

Why Choose Netafim Space-It Streamline X Thinwall Dripline?

The Netafim™ Space-It™ Streamline X Thinwall Dripline provides commercial growers with an efficient solution for seasonal row crop irrigation where long installation runs, consistent emitter placement, and protection during deployment are important.

With a 9,000-foot roll, 16mm size, 8mil wall thickness, 32-inch emitter spacing, 0.4 GPH flow rate, 12 PSI rating, protective ribbing, and protected emitter outlets, this Streamline X configuration is designed to support efficient irrigation deployment across large commercial growing areas.
