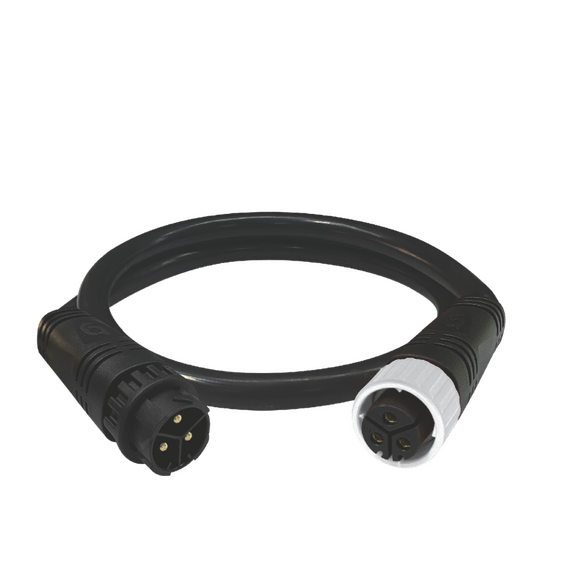

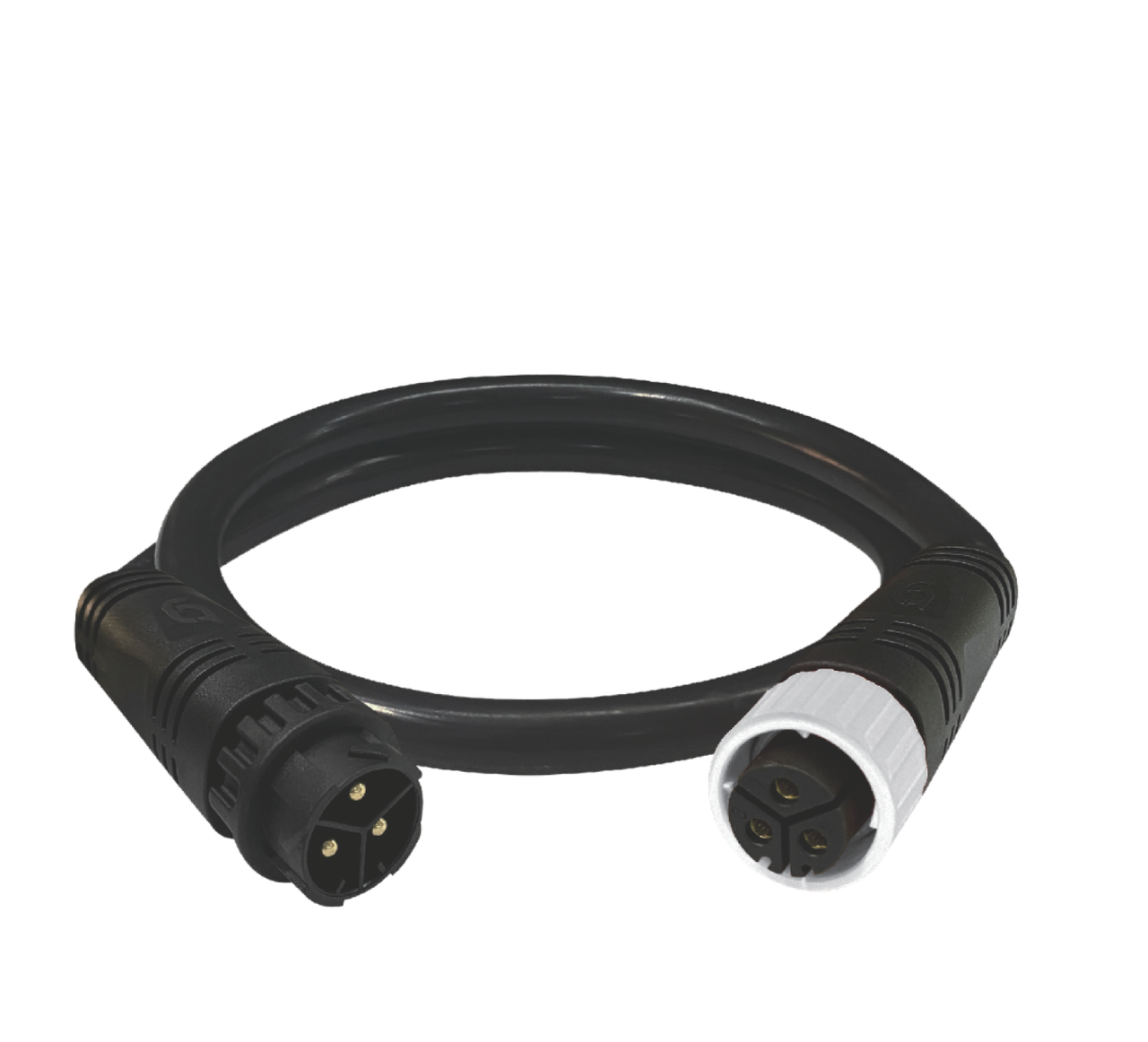

ThinkGrow M-One/ICL Daisy-Chain Power Cord, 3' 15A AWG#14

A Short, Light-Duty Link Between LED Drivers

ThinkGrow's Daisy Chain Power Cord System interconnects LED drivers across a Model One/ICL installation, letting a single 30-amp circuit power up to 18 fixtures while reducing the outlets and cables a grow room setup requires.

The DEA-14 is a 3-Foot, AWG 14 cord rated for 100-277V at up to 15A, one of three gauge options growers can mix within an installation to match their setup's needs.

Key Features & Benefits

• 3-Foot Length — Sets the spacing between interconnected drivers.
• AWG 14 Wiring, 15A Rated — Sized for this cord's position in the daisy chain.
• 100-277V Input — Accepts standard commercial voltage ranges.
• Copper Area 2.08 mm² — Supports reliable current delivery along the cord.

Who Should Use the DEA-14

Growers building a Model One/ICL installation who need a 3-Foot, AWG 14 link between LED drivers should use this cord.

Specifications

Input voltage is 100-277V at up to 15A on AWG 14 wire, with a copper area of 2.08 mm² and resistivity under 21mOhm. Length is 3-Foot, weighing 0.53 lbs (240g).

Frequently Asked Questions

What does the DEA-14 connect?

LED drivers within a Model One/ICL daisy chain installation.

How long is this cord?

3-Foot.

What's its amperage rating?

Up to 15A.

What gauge wire does it use?

AWG 14.

How much does it weigh?

0.53 lbs (240g).
