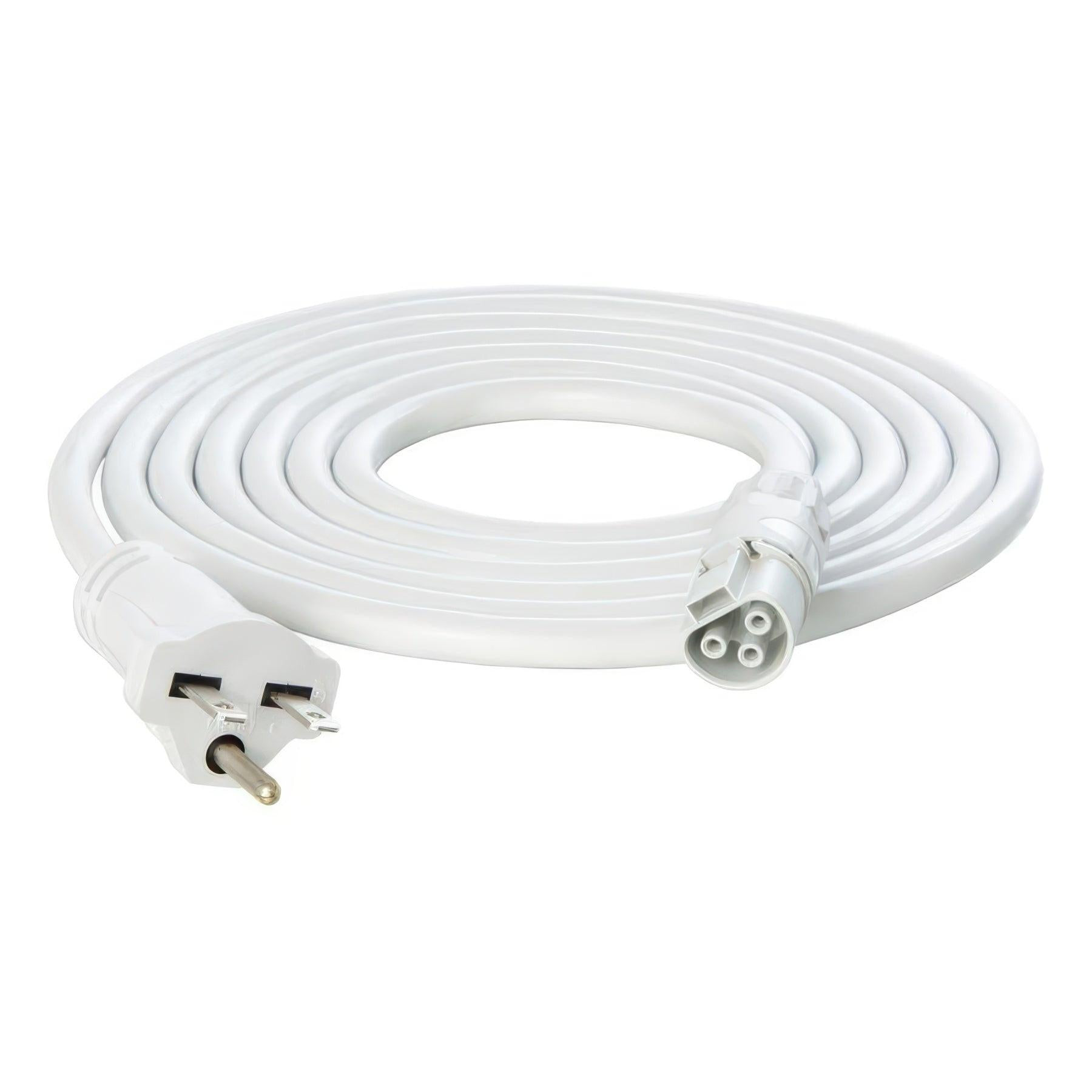

PHOTOBIO X Cable Harness, 16AWG, 208-240V, 6-15P, 10 ft

PHOTOBIO X Power Harness — 16AWG, 208-240V, NEMA 6-15P Plug, 10 ft

This PHOTOBIO X cable harness connects a 208-240V NEMA 6-15P outlet to a PHOTOBIO CX, MX, T, or TX LED fixture. The 6-15P plug is the standard non-locking 208-240V connector used widely in commercial electrical infrastructure, making this harness a practical choice for facilities with existing 208-240V receptacles.

Running PHOTOBIO X fixtures at 208-240V draws less current than 110-120V operation for the same wattage, which reduces wire sizing requirements and enables more fixtures per circuit. The IP connector at the fixture end provides dust and liquid resistance at the connection point, allowing fixture-level disconnection without tools. The 10 ft white UV-resistant cable provides routing flexibility and reflects light back into the canopy.

Key Features & Benefits

• NEMA 6-15P plug — standard 208-240V non-locking 3-prong plug compatible with 6-15R receptacles common in commercial electrical installations.
• 16AWG wire — handles the current draw of PHOTOBIO X fixtures at 208-240V operating voltage.
• IP connector at fixture — dust- and liquid-resistant connection at the fixture for safe plug-and-play power management.
• 10 ft white UV-resistant cable — 10 ft reach with white UV-resistant jacket that reflects light back into the canopy.
• PHOTOBIO X compatible — for use with PHOTOBIO CX, MX, T, and TX LED fixtures.

Who Should Use This Harness

Commercial growers with 208-240V dedicated circuits who are installing PHOTOBIO X LED fixtures and want plug-and-play fixture connections that reduce electrician dependency for routine moves and replacements.

208-240V vs. 110-120V — Why Higher Voltage Is More Efficient

For the same fixture wattage, running at 208-240V draws roughly half the current compared to 110-120V. This means smaller wire gauge requirements, more fixtures per circuit, and less resistive loss in the wiring. Most commercial grow facilities use 208-240V or higher for this reason. If your facility already has 208-240V receptacles, the 6-15P harness (CHE1063015W) is the most straightforward option. For locking 277V circuits, see CHE1083020W.

Frequently Asked Questions

What outlet type does this harness plug into?

The CHE1063015W uses a NEMA 6-15P plug, which connects to a 6-15R receptacle — the standard 208-240V non-locking outlet used in many commercial electrical installations.

What fixtures is this harness compatible with?

Compatible with PHOTOBIO CX, MX, T, and TX LED fixtures.

What is the difference between 6-15P and 5-15P?

The 5-15P is a 110-120V plug; the 6-15P is a 208-240V plug. They are physically different and not interchangeable. Always match the harness to your circuit voltage.

Can I use this harness on a 110-120V circuit?

No. The 6-15P plug is for 208-240V circuits only. For 110-120V circuits, use CHE1063010W (5-15P). Never use a mismatched voltage harness.

What does the IP connector at the fixture end do?

The IP connector provides a dust- and liquid-resistant power connection at the fixture. It allows the fixture to be connected and disconnected from power without tools, simplifying moves and replacements.
