Lighting Control Adapter T, for Controlling ThinkGrow LED

Independent Full-Spectrum and Deep Red Control for ThinkGrow LEDs

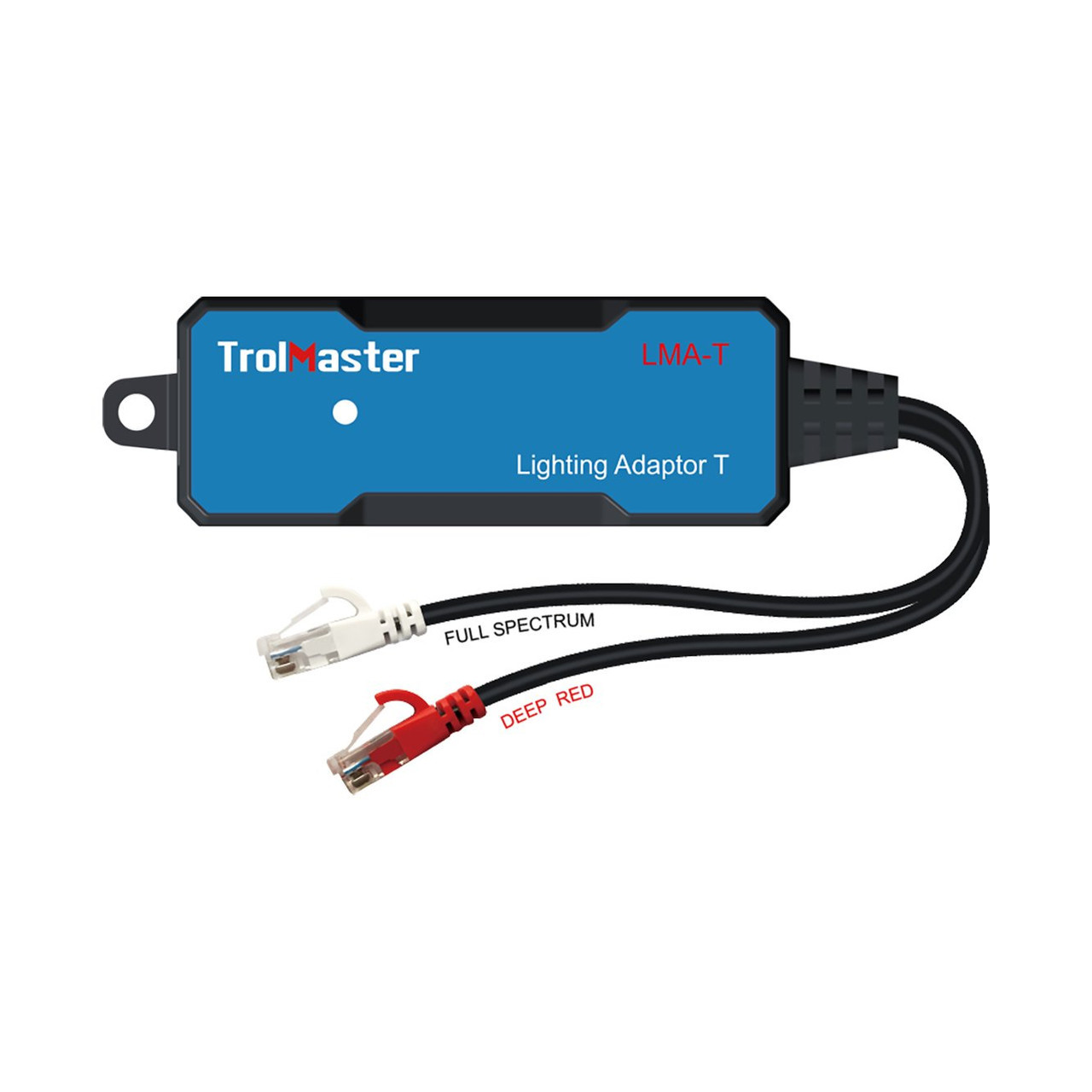

The TrolMaster LMA-T works specifically with ThinkGrow LED systems to provide two-channel control, allowing separate control over full-spectrum and deep red output levels.

It connects to the Line 1 and Line 2 lighting control ports on an HCS-1 controller. Once connected, growers set individual on/off times and dimming levels for the full-spectrum and deep red channels, with each LED fixture daisy-chained back to the controller using plug-and-play RJ-type cabling. One adapter can run up to 256 LEDs.

Key Features & Benefits

• LED Indicator — Shows adapter activity at a glance.
• Plug-and-Play Setup — Installs without additional configuration tools.
• Two Independent Channels — Full-spectrum and deep red output set on separate schedules and dimming levels.
• Connects to HCS-1 Line 1 and Line 2 — Ties directly into the lighting control ports.
• Daisy-Chain Up to 256 LEDs — Scales to large ThinkGrow LED installations.
• Includes Waterproof Connector Cable — Converts RJ12 to a water-resistant connection.

Who Should Use the LMA-T

Growers running ThinkGrow LED systems who want independent scheduling and dimming for full-spectrum versus deep red output should use this adapter.

What's in the Box

Each LMA-T includes 1 adapter, 1 RJ12 to customized waterproof connector, and 1 ECS-9 cable. Output voltage is 0-11.5V with a maximum current of 0.2A, operating in temperatures from 32-122°F and humidity up to 90%, measuring 156mm x 83mm x 30mm.

Frequently Asked Questions

What does the LMA-T connect to?

The Line 1 and Line 2 lighting control ports on an HCS-1 controller.

How many LEDs can one LMA-T manage?

Up to 256, connected in a daisy-chain.

Can I set different schedules for each channel?

Yes, the full-spectrum and deep red channels have independent on/off times and dimming settings.

What's included?

One LMA-T adapter, one RJ12 to waterproof connector, and one ECS-9 cable.
