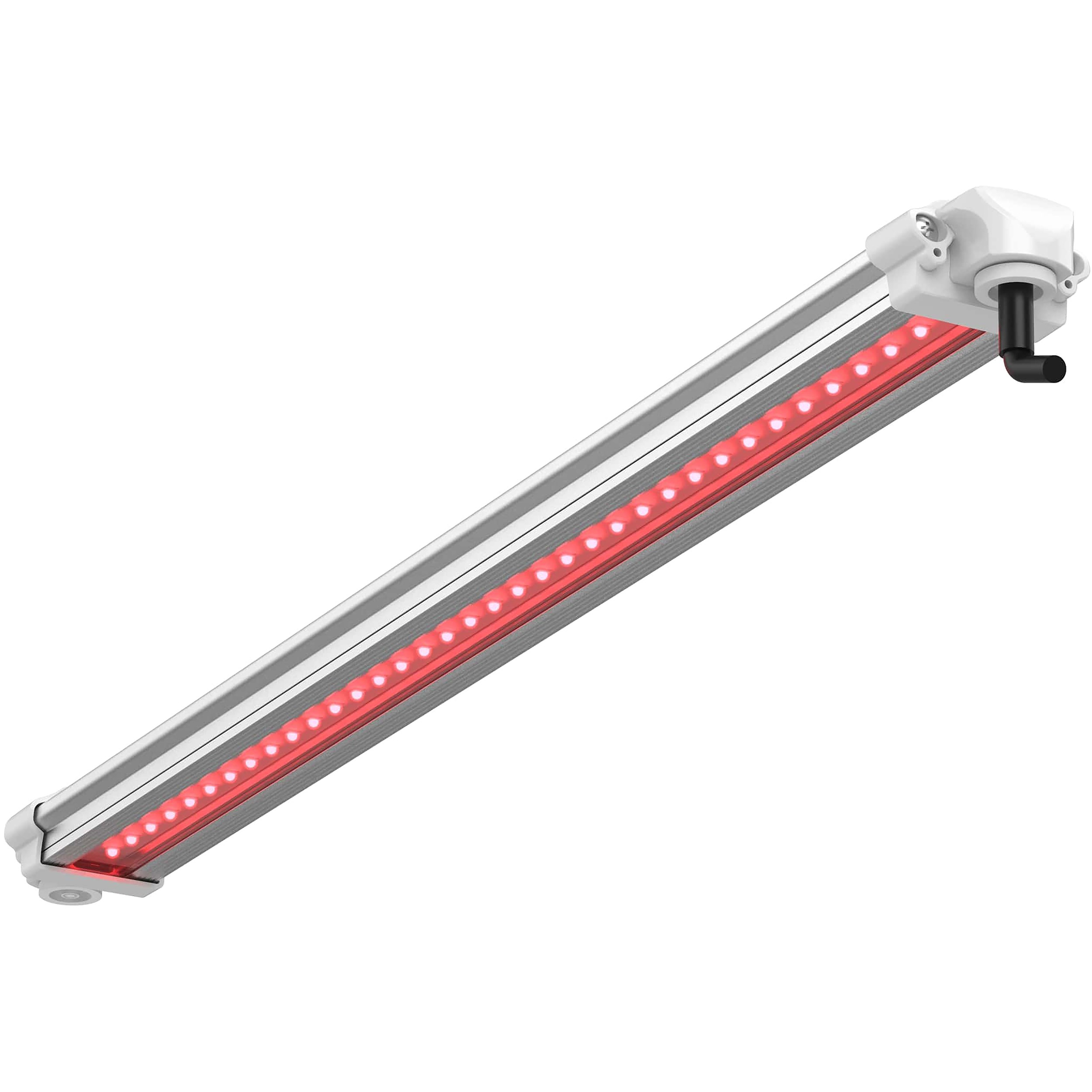

TotalGrow™ Deep Red Specialty Light Bar – 24in 25W 660nm Supplemental Grow Light

The TotalGrow™ Deep Red Specialty Light Bar is a 24-inch, 25-watt supplemental horticultural light designed to deliver targeted 660nm deep red light to indoor growing facilities, greenhouses, and other controlled-environment agriculture systems. The deep red spectrum supports photosynthetic activity and plant growth when used alongside compatible primary grow lighting.

Producing 65 µmol/s of photon output at an efficacy of 2.6 µmol/J, the TotalGrow Deep Red Specialty Light Bar provides an energy-efficient way to increase targeted red-spectrum intensity without replacing an existing grow lighting system. Its 660nm output can help improve spectral balance and provide additional photosynthetically useful light for plant development.

The fixture's slim 23.7-inch linear profile allows it to integrate easily into greenhouse structures, indoor grow rooms, vertical farming racks, and existing horticultural lighting layouts. Its modular design also supports daisy-chain linking of multiple fixtures, making it easy to expand supplemental deep red lighting across larger cultivation areas.

Designed for demanding growing environments, the TotalGrow Deep Red Specialty Light Bar features an IP65 rating, ETL certification, projected 30,000-hour service life, and 3-year warranty. A 120V power cord and two suspension hangers are included for convenient installation.

What Is the TotalGrow Deep Red Specialty Light Bar Used For?

The TotalGrow Deep Red Specialty Light Bar provides concentrated 660nm deep red light as a supplement to a primary horticultural lighting system. Deep red wavelengths fall within the photosynthetically active range used by plants and can be incorporated into lighting strategies designed to support photosynthesis, growth, and overall plant development.

Rather than functioning as a standalone grow light, this fixture is designed to complement existing lighting. Growers can use it to add targeted deep red intensity, adjust spectral balance, and provide additional photosynthetically useful light in areas where the primary fixture's spectrum or intensity may benefit from supplementation.

Key Benefits

• Targeted 660nm deep red spectrum: Provides concentrated red light in a wavelength strongly associated with photosynthetic plant activity.
• Supports photosynthesis: Adds photosynthetically useful deep red light to compatible existing horticultural lighting systems.
• Supports plant growth and development: Helps supplement primary lighting with additional red-spectrum energy for controlled cultivation programs.
• Improves spectral balance: Allows growers to introduce additional 660nm light where more deep red intensity is desired.
• High 2.6 µmol/J efficacy: Produces 65 µmol/s of output while consuming only 25 watts.
• Slim 24-inch profile: Integrates easily into existing grow rooms, greenhouse structures, and multi-tier cultivation systems.
• Daisy-chain capability: Multiple light bars can be linked together for scalable supplemental lighting installations.
• Flexible electrical configurations: Supports daisy-chain installations of up to 24 units at 120V, 48 units at 240V, or 55 units at 277V using appropriate linking cables.
• IP65 rated: Designed for demanding humid and wet controlled-growing environments.
• ETL certified: Provides recognized electrical safety certification.
• 30,000-hour projected service life: Built for long-term horticultural use.
• 3-year warranty: Provides additional protection for your lighting investment.

Why Use 660nm Deep Red Light for Plants?

Light at approximately 660nm falls within the red portion of the photosynthetically active radiation (PAR) spectrum. Plants can use this light during photosynthesis, making deep red an important component of many horticultural lighting systems.

The TotalGrow Deep Red Specialty Light Bar allows growers to add targeted 660nm output without installing another full-spectrum fixture. This can be particularly useful when an existing lighting system needs additional red-spectrum intensity or a different spectral balance to meet specific cultivation objectives.

Supplemental Lighting for Existing Grow Light Systems

The TotalGrow Deep Red Specialty Light Bar is specifically designed as a complementary horticultural fixture. It should be used with an appropriate primary grow light rather than treated as the sole lighting source for a cultivation area.

Its targeted spectrum makes it possible to fine-tune an existing lighting environment while avoiding unnecessary additional wavelengths. Growers can position the bars where supplemental 660nm light is needed and expand the installation using the modular linking system.

Modular Daisy-Chain Design

For larger indoor growing and greenhouse installations, multiple TotalGrow Deep Red Specialty Light Bars can be connected using compatible linking cables.

Maximum listed daisy-chain configurations are:

• 120V: Up to 24 light bars
• 240V: Up to 48 light bars
• 277V: Up to 55 light bars

This modular configuration allows growers to expand supplemental deep red lighting across cultivation areas while reducing the need for an individual power connection at every fixture. Appropriate linking cables and electrical requirements should be followed for the selected installation voltage.

Designed for Easy Integration

Measuring approximately 23.7 inches long, 2.3 inches wide, and only 1.5 inches high, the TotalGrow Deep Red Specialty Light Bar features a low-profile design that can fit into a wide range of cultivation environments.

Its compact dimensions make it suitable for installation alongside existing grow lights, between larger fixtures, within vertical farming racks, or in greenhouse lighting layouts where space and flexibility are important.

Ideal Applications

The TotalGrow Deep Red Specialty Light Bar is well suited for supplemental horticultural lighting applications including:

• Commercial greenhouses
• Indoor growing facilities
• Vertical farms
• Multi-tier cultivation racks
• Controlled-environment agriculture
• Research and plant-development facilities
• Supplemental photosynthetic lighting
• Red-spectrum supplementation
• Spectral balancing of existing grow light systems
• Existing full-spectrum grow lighting installations requiring additional 660nm output

TotalGrow Deep Red Specialty Light Bar Specifications

Frequently Asked Questions

What does the TotalGrow Deep Red Specialty Light Bar do?

The TotalGrow Deep Red Specialty Light Bar provides targeted 660nm deep red light to supplement an existing horticultural lighting system. Its red-spectrum output supports photosynthesis and can help growers increase deep red intensity and adjust spectral balance for plant growth and development.

What wavelength does the TotalGrow Deep Red Light Bar produce?

The fixture produces targeted 660nm deep red light, a wavelength within the photosynthetically active portion of the light spectrum used by plants.

Does 660nm red light support photosynthesis?

Yes. 660nm deep red light falls within the photosynthetically active radiation spectrum and can be used by plants during photosynthesis. The TotalGrow fixture is designed to add targeted 660nm output to an existing horticultural lighting system.

Is the TotalGrow Deep Red Specialty Light Bar a full-spectrum grow light?

No. The TotalGrow Deep Red Specialty Light Bar is designed as a supplemental grow light. It is intended to complement a compatible primary horticultural lighting system rather than replace a full-spectrum grow fixture.

How much power does the TotalGrow Deep Red Light Bar use?

Each fixture consumes 25 watts and produces approximately 65 µmol/s of photon output with an efficacy of 2.6 µmol/J.

What is the efficacy of the TotalGrow Deep Red Light Bar?

The TotalGrow Deep Red Specialty Light Bar has an efficacy of 2.6 µmol/J.

Can multiple TotalGrow Deep Red Light Bars be connected together?

Yes. The fixtures support daisy-chain linking using compatible linking cables. Up to 24 units can be linked at 120V, 48 units at 240V, or 55 units at 277V according to the listed configuration limits.

How many Deep Red Light Bars can be daisy-chained on 120V?

Up to 24 TotalGrow Deep Red Specialty Light Bars can be linked together on a 120V configuration using the appropriate linking cables.

How many Deep Red Light Bars can be daisy-chained on 240V?

Up to 48 TotalGrow Deep Red Specialty Light Bars can be linked on a 240V configuration using compatible linking cables.

How many Deep Red Light Bars can be daisy-chained on 277V?

Up to 55 TotalGrow Deep Red Specialty Light Bars can be linked on a 277V configuration using compatible linking cables.

Can the TotalGrow Deep Red Light Bar be used in a greenhouse?

Yes. The fixture is designed for complementary lighting in greenhouses, indoor growing facilities, vertical farms, and other controlled-environment horticultural applications.

Can I add the Deep Red Specialty Light Bar to my existing grow lights?

Yes. The fixture is specifically designed to complement an existing horticultural lighting system. Its slim profile allows it to be positioned alongside compatible primary grow fixtures to add targeted 660nm deep red light.

Is the TotalGrow Deep Red Light Bar waterproof?

The fixture carries an IP65 rating, providing protection against dust ingress and water jets. Proper installation should still follow applicable electrical and environmental requirements.

Is the TotalGrow Deep Red Specialty Light Bar dimmable?

No. The TotalGrow Deep Red Specialty Light Bar is not dimmable.

Is the TotalGrow Deep Red Specialty Light Bar ETL certified?

Yes. The TotalGrow Deep Red Specialty Light Bar is ETL certified.

How large is the TotalGrow Deep Red Specialty Light Bar?

The fixture measures approximately 23.7 inches long, 2.3 inches wide, and 1.5 inches high. It weighs approximately 2.3 pounds.

How long does the TotalGrow Deep Red Specialty Light Bar last?

The fixture has a projected service life of approximately 30,000 hours.

What warranty is included with the TotalGrow Deep Red Light Bar?

The TotalGrow Deep Red Specialty Light Bar includes a 3-year warranty.

What comes with the TotalGrow Deep Red Specialty Light Bar?

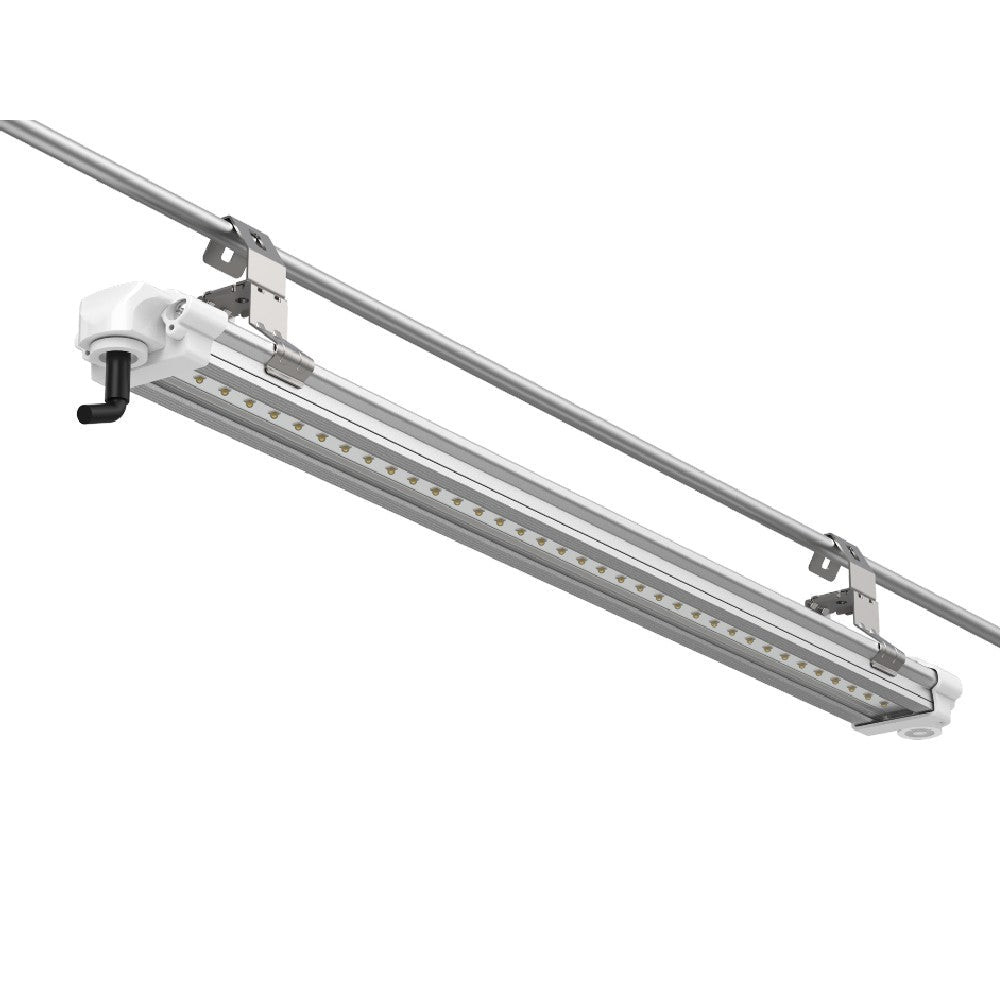

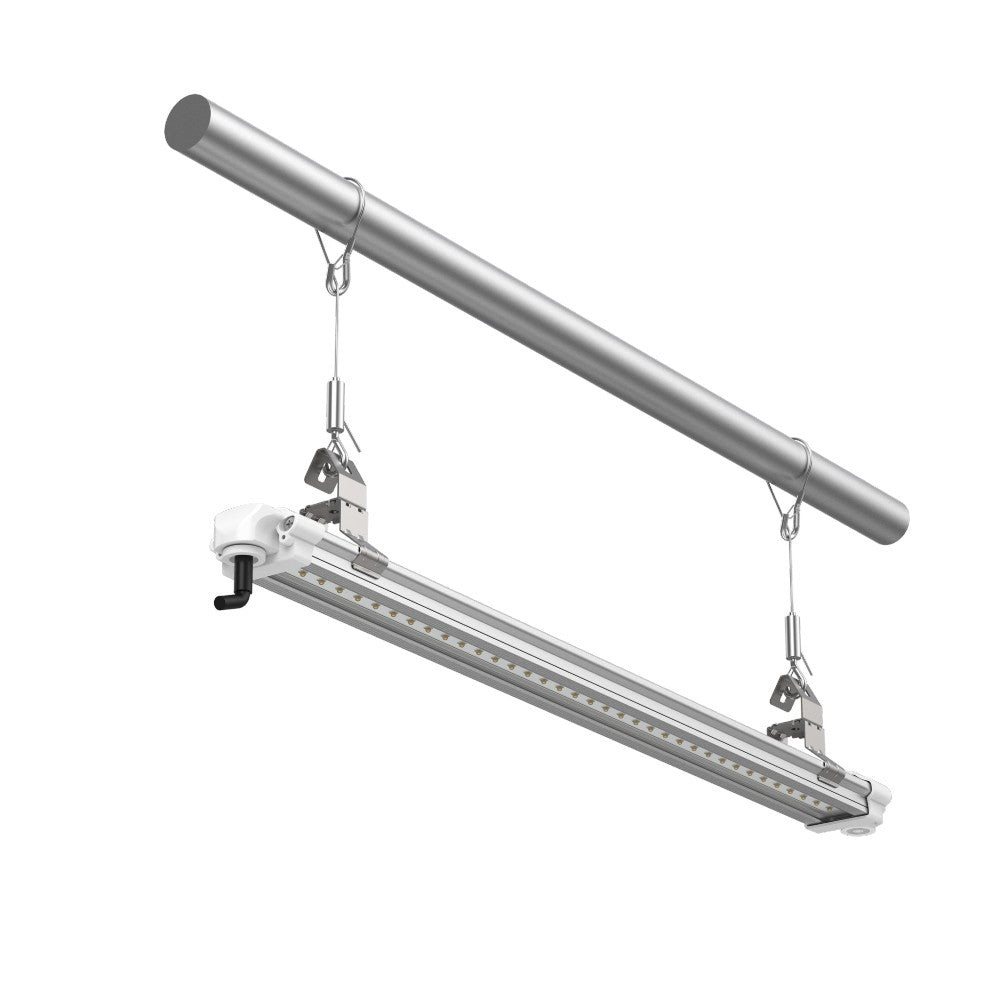

The package includes the TotalGrow Deep Red Specialty Light Bar, a 120V power cord, and two suspension hangers. Suspension cords are sold separately.

Why Choose the TotalGrow Deep Red Specialty Light Bar?

The TotalGrow™ Deep Red Specialty Light Bar gives growers an efficient way to add targeted 660nm deep red light to an existing horticultural lighting system. Instead of adding another full-spectrum fixture, growers can use the light bar to increase red-spectrum intensity and fine-tune the spectral composition of their cultivation environment.

With 65 µmol/s output, 2.6 µmol/J efficacy, only 25 watts of power consumption, modular daisy-chain capability, an IP65 rating, ETL certification, 30,000-hour projected service life, and a 3-year warranty, the TotalGrow Deep Red Specialty Light Bar is a versatile supplemental lighting solution for commercial greenhouses, indoor grow facilities, and other controlled-environment agriculture applications.
