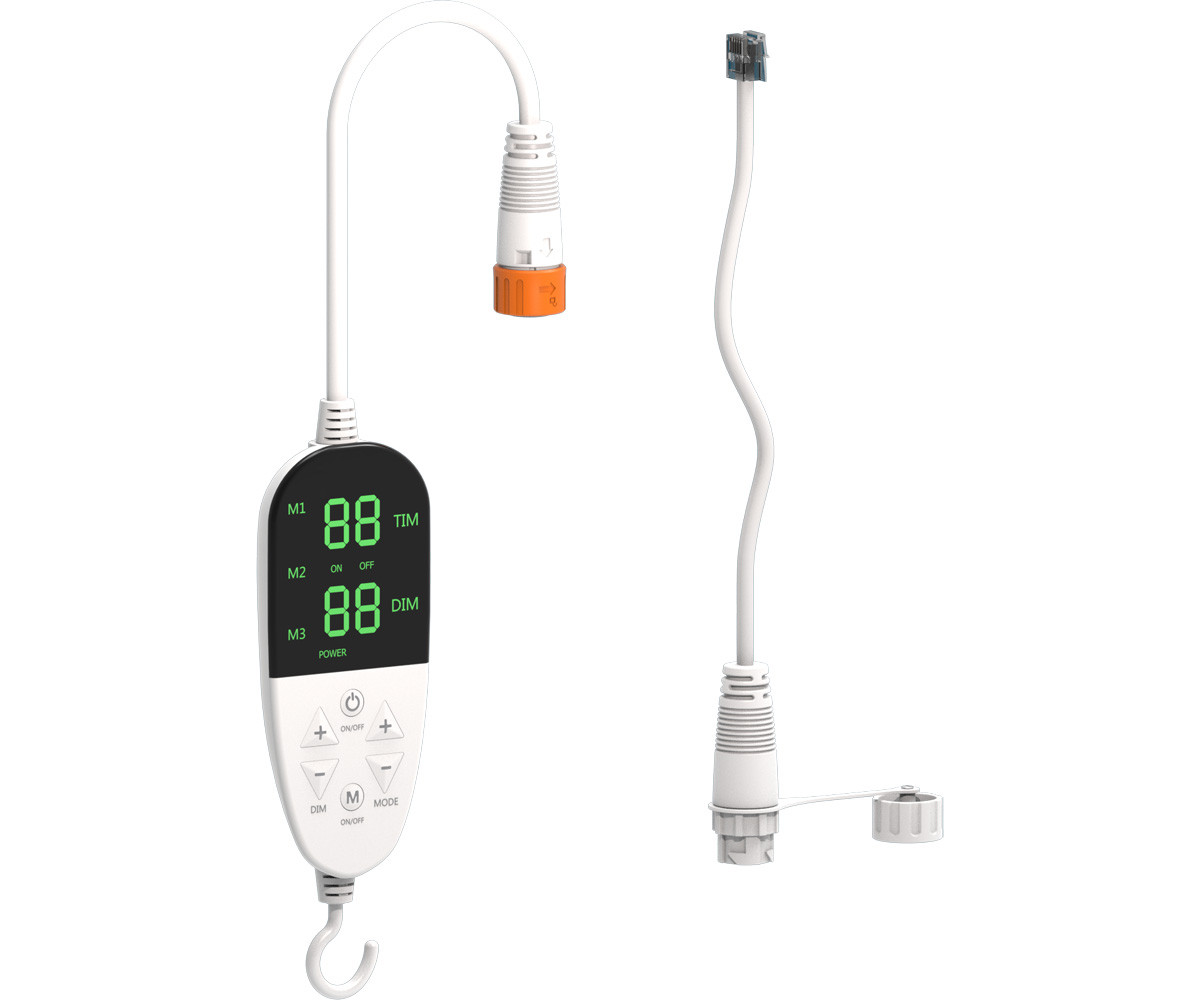

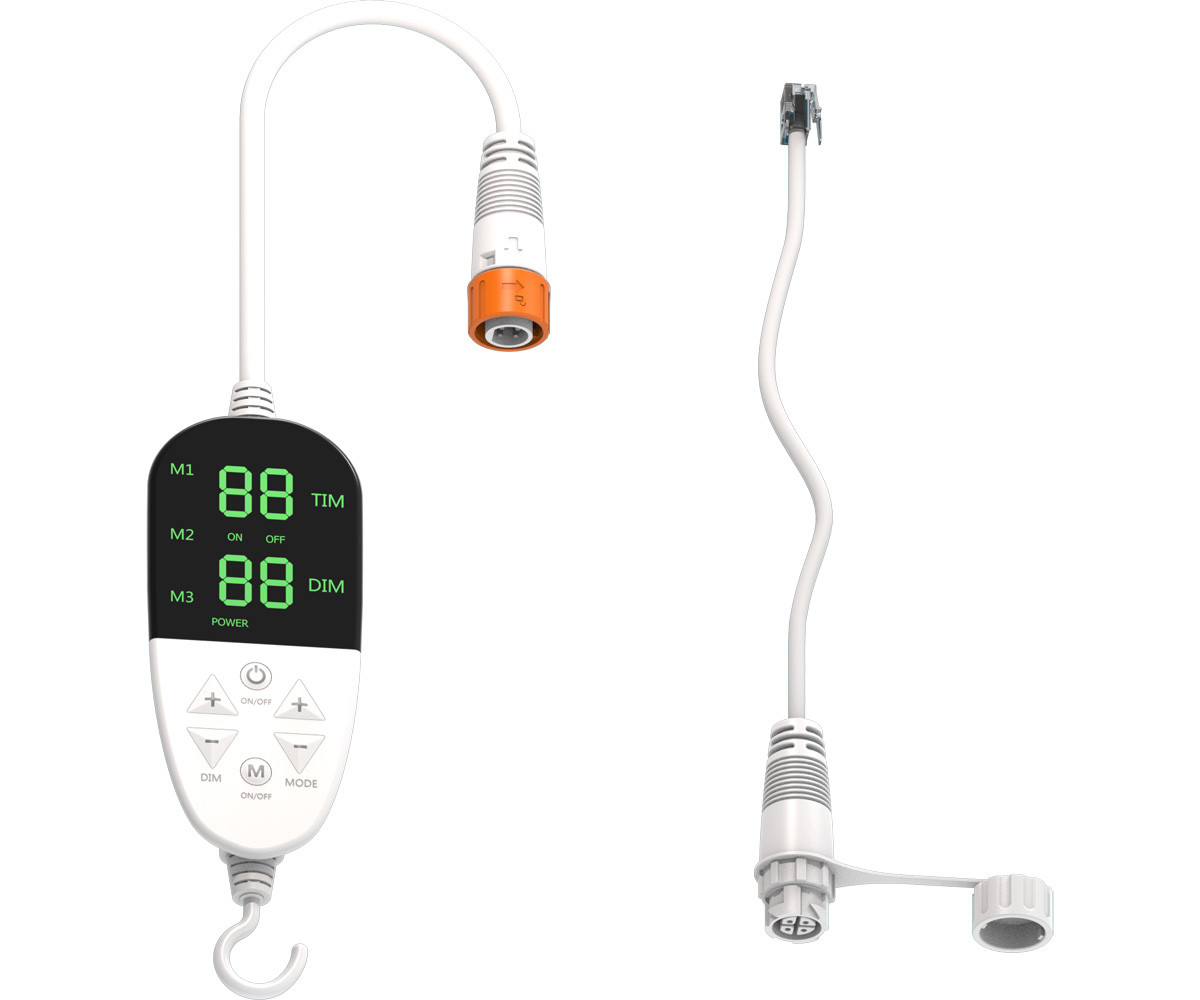

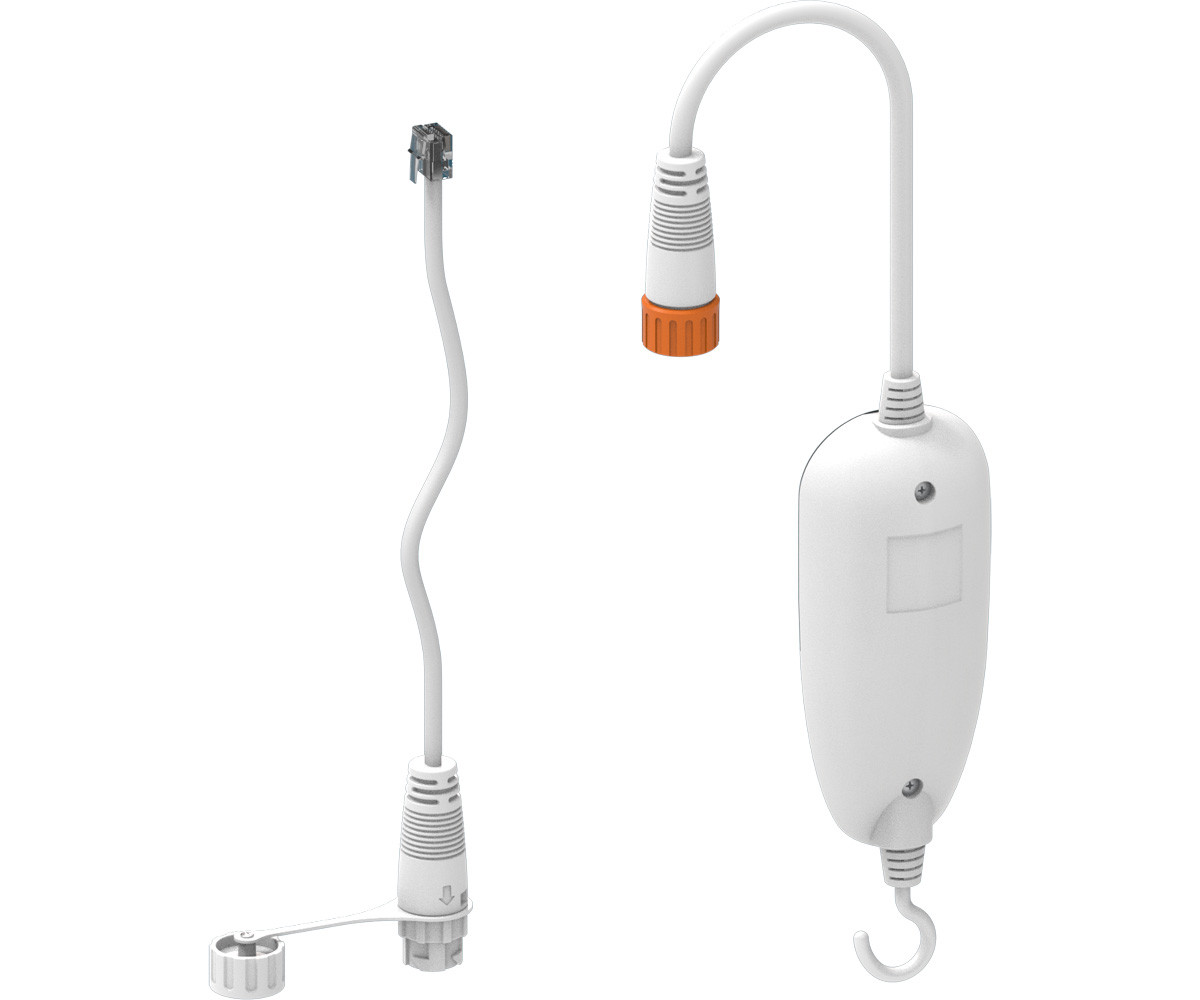

PHOTOBIO iLOC Dimmer Module for IU120/GL250 - 3 ft RJ Adapter Cable

Simple Analog Dimming and Timer Control - 3 ft RJ Cable

Adjusting light intensity and schedules across a room often means complicated controllers and extra wiring. The PHOTOBIO iLOC Dimmer Module is an analog 0-10V controller that dims compatible LED fixtures and sets a light-cycle timer from one small unit. It draws power from the fixture, so you do not need a separate power supply.

Sold as a single unit, it suits growers who want straightforward control of one compatible fixture, from a home setup to an individual position in a larger indoor room.

Key Features & Benefits

• 0-10V analog dimming — adjust output from 10% to 100% in 10% steps.
• Built-in timer — choose a 10-, 12-, or 14-hour light cycle.
• Powered by the fixture — it uses the auxiliary load of a compatible fixture, so no additional power is needed.
• Built-in hanging hook — mount it within easy reach.
• 3 ft RJ adapter cable included — connect to the fixture out of the box.

Who Should Use the PHOTOBIO iLOC Dimmer Module

Growers running a compatible PHOTOBIO or PHANTOM Cultivar fixture who want simple dimming and scheduling without a networked control system.

About PHOTOBIO iLOC Dimmer Module

The PHOTOBIO iLOC Dimmer Module (PTBU2500) works with PHOTOBIO IU, PHOTOBIO MX2 680 and PHANTOM Cultivar GL250 fixtures. The box contains the dimmer, an RJ adapter cable and a user manual.

Frequently Asked Questions

Q: Which fixtures does it work with?
A: It is listed for PHOTOBIO IU, PHOTOBIO MX2 680 and PHANTOM Cultivar GL250 fixtures. Use it only with compatible fixtures.

Q: Does it need its own power supply?
A: No. It is powered by the auxiliary load of a compatible fixture.

Q: What does 0-10V analog dimming mean?
A: The controller sends a low-voltage signal between 0 and 10 volts to the fixture driver, which sets the light output. Here that gives 10% to 100% output in 10% steps.

Q: What light cycles can I set?
A: The timer offers 10-, 12-, or 14-hour light cycles on a 24-hour schedule.

Q: Where can I use it?
A: Use it in dry locations only, and for low voltage connections only. Read the user manual before use and do not tamper with the connectors.

Q: What is included?
A: One iLOC Dimmer, one 3 ft RJ adapter cable and one user manual.
