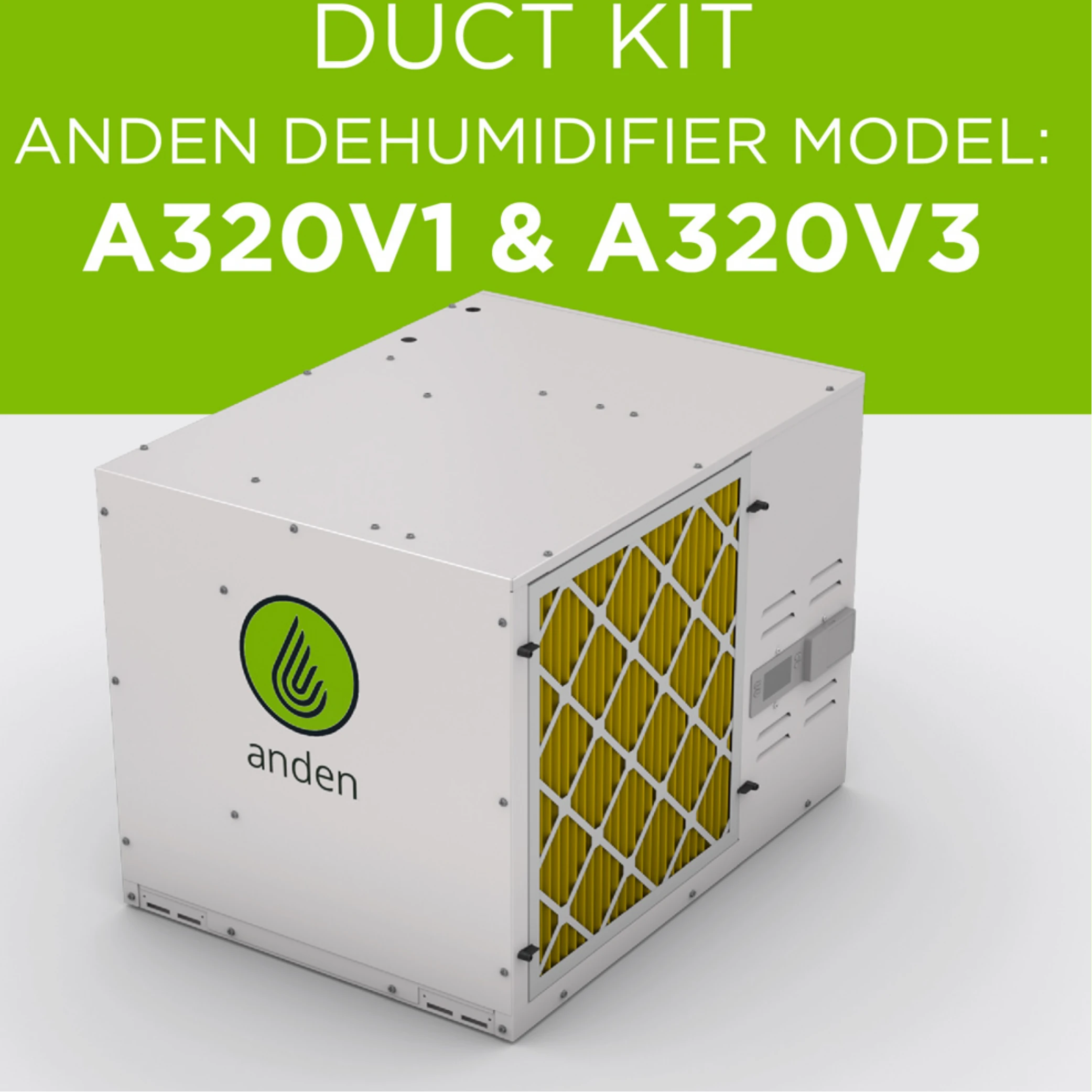

Anden Duct Kit for Anden Dehumidifier Model A320V1 & A320V3

External Duct Installation Kit for the Anden A320V1 and A320V3, 18-Inch Collars

Not every mechanical room or grow facility has space to sit a dehumidifier directly inside the cultivation area, and running one where it doesn't fit isn't the only option. Anden's duct kits let a dehumidifier draw from and exhaust to remote points through ducting instead, so the unit itself can sit outside the grow space, in a mechanical closet or adjacent room, while still conditioning the space it's ducted into.

The 5807 duct kit fits either the Anden A320V1 or A320V3 dehumidifier, since both share the same chassis, stepping the unit's factory openings down to 18-inch round duct collars for external installation.

Key Features & Benefits

• 18-Inch Round Duct Collars — Steps the unit down to standard 18-inch round ducting for supply and return runs.
• Galvanized Steel Transitions — Inlet and outlet transitions resist corrosion in humid mechanical spaces.
• Filter Access Door — Built into the inlet transition so filter maintenance doesn't require disconnecting ducting.
• Remote Installation — Lets the A320V1/A320V3 dehumidifier sit outside the grow space and duct in instead of installing directly inside it.
• Model-Specific Fit — Sized specifically for the Anden A320V1/A320V3 dehumidifier's duct collar dimensions.

When You Need a Duct Kit

A duct kit is for installations where the dehumidifier can't or shouldn't sit directly inside the grow space — a mechanical room layout, a noise or clearance constraint, or a facility design that routes conditioned air through ducting to multiple zones. It's not required for a straightforward in-room installation; growers who can place the unit directly in the space don't need one.

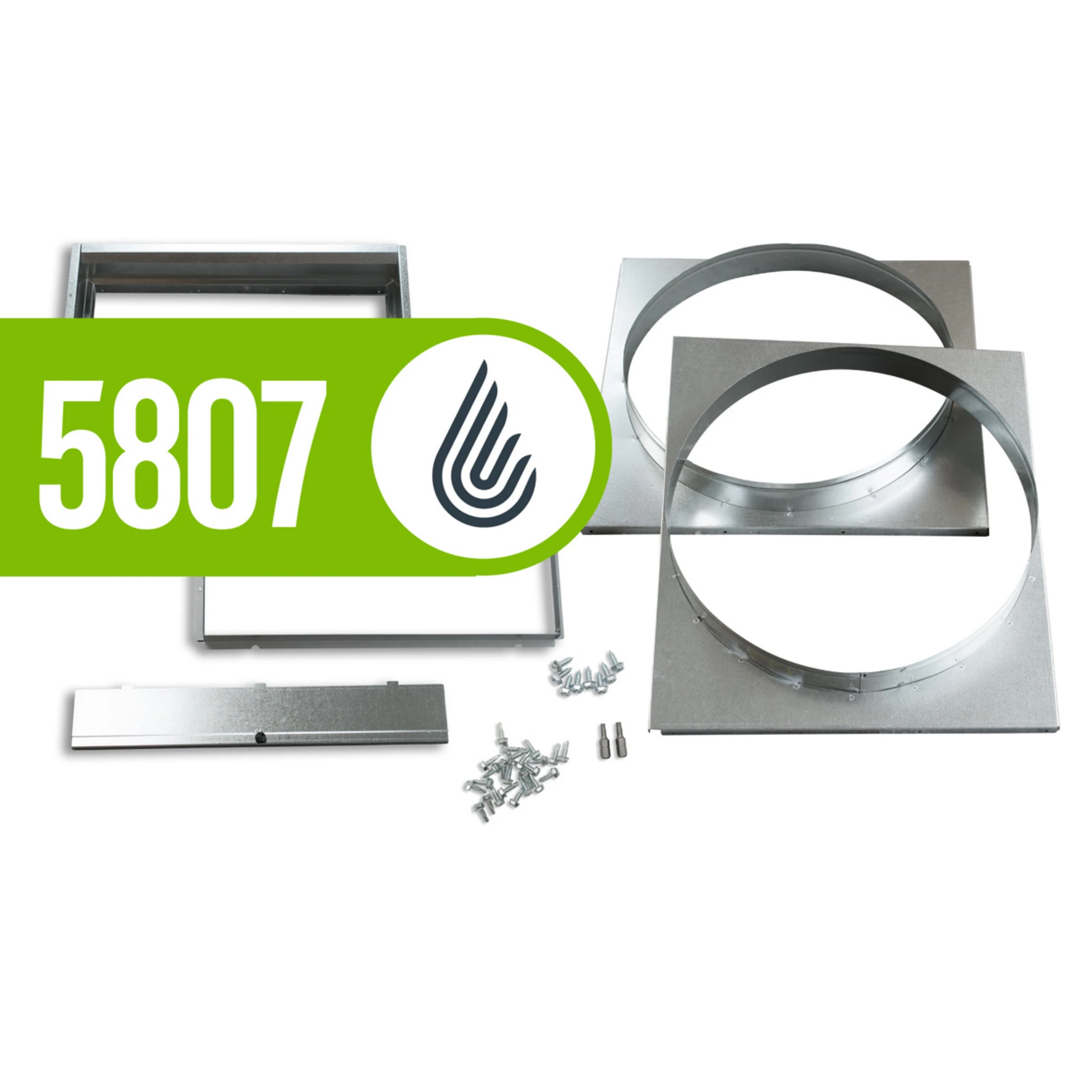

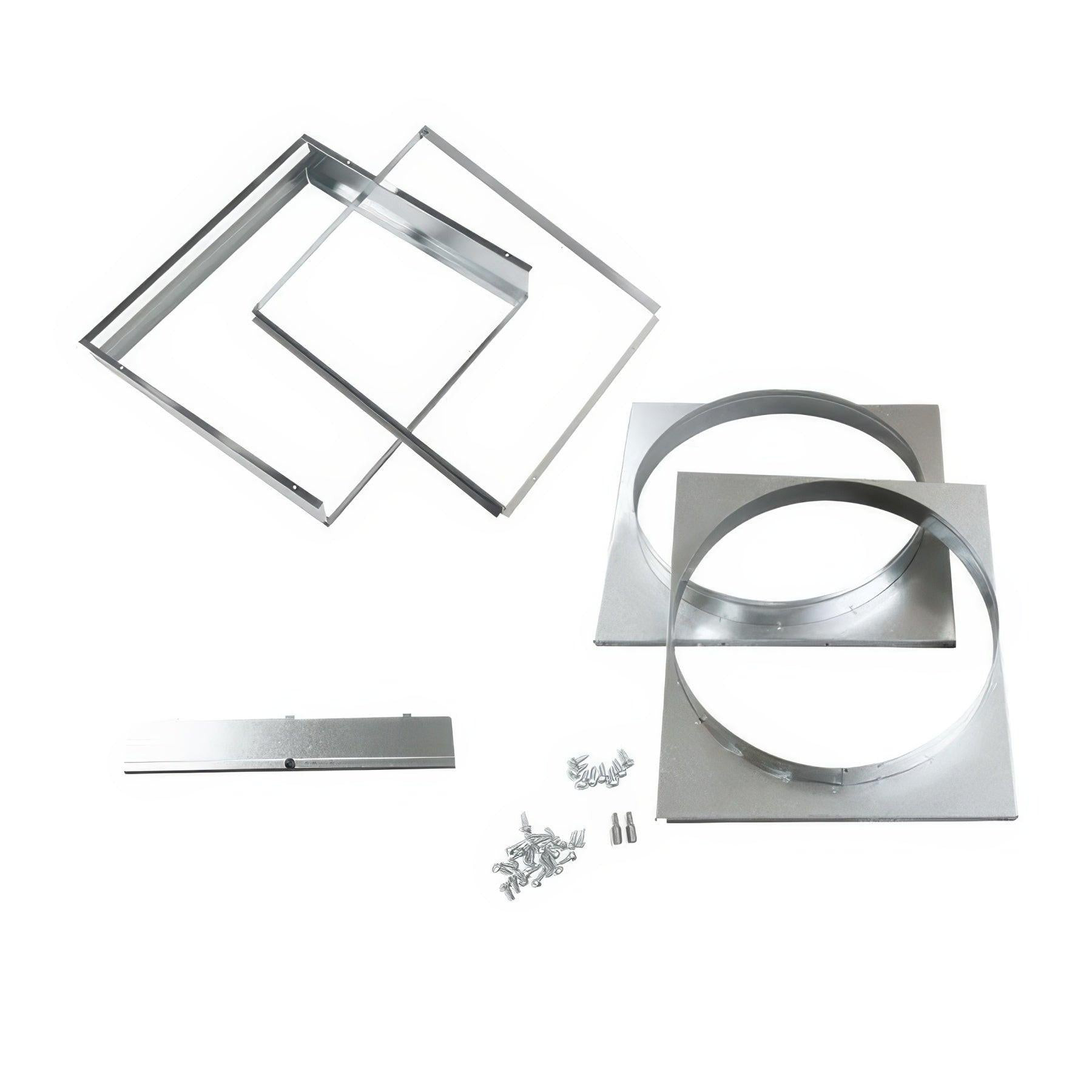

What's Included in an Anden Duct Kit

Anden's duct kits include galvanized steel inlet and outlet transitions sized to the matching dehumidifier's round duct collars, so the unit's rectangular cabinet openings step down to standard round ducting. The inlet transition includes a filter access door, so the washable or replacement filter stays reachable for routine maintenance even after the unit is ducted in and enclosed.

Frequently Asked Questions

What size duct collars come with the 5807 kit?

The 5807 kit includes 18-inch round duct collars on both the inlet and outlet transitions, sized for the higher airflow volume of the Anden A320-series dehumidifiers. The same kit fits both the A320V1 and A320V3 since they share a chassis.

How do I install a duct kit on my dehumidifier?

Attach the galvanized steel inlet and outlet transitions to the dehumidifier's factory duct collars, then run standard round ducting from each transition to its supply and return points. Follow Anden's installation instructions for sealing the transitions, since a leaky connection reduces the airflow reaching the space you're ducting into.

Can I still access the filter once the duct kit is installed?

Yes, the inlet transition includes a dedicated filter access door, so you don't need to disconnect any ducting to reach the filter for cleaning or replacement. That access point is built into the kit specifically so ducting the unit doesn't turn routine filter maintenance into a bigger job.

What material are the duct transitions made from?

The inlet and outlet transitions are galvanized steel, chosen for corrosion resistance in the humid conditions a dehumidifier operates in. That's the same material logic behind the E-coated coils used elsewhere in Anden's dehumidifier line.

Is a duct kit required to run this dehumidifier?

No, the duct kit is optional. The A320V1/A320V3 runs without it if the unit can be installed directly inside the space it's conditioning; the kit is only needed for a remote or ducted installation.
