TrolMaster Weather Station Splitter (WSP-1) - 6.14 x 3.27 x 1.18-in - IP66

Share One Weather Sensor Across Two Controllers - 6.14 in Long

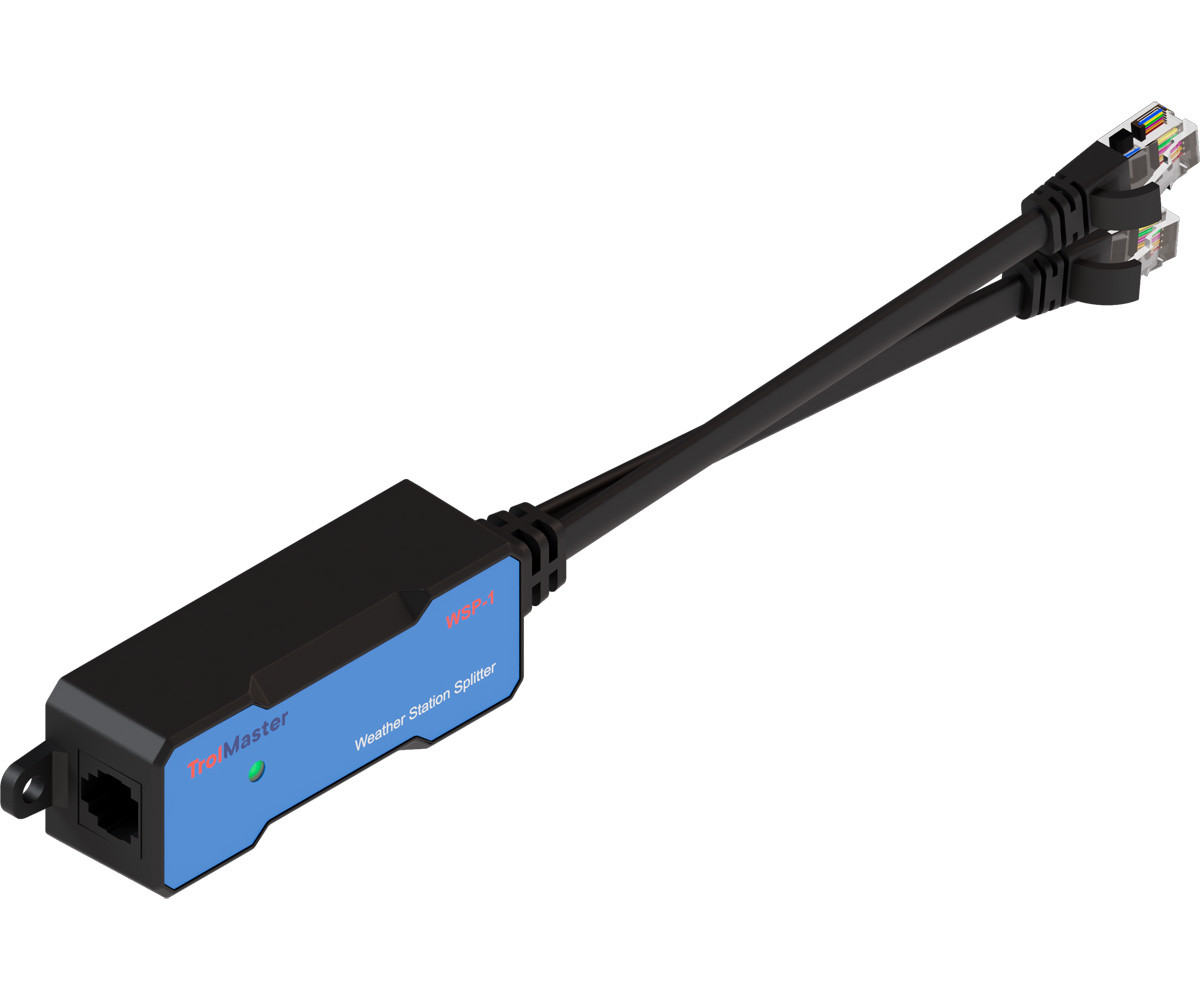

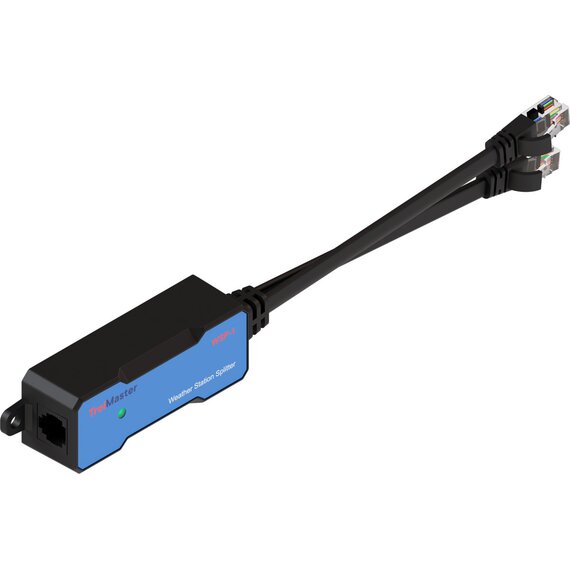

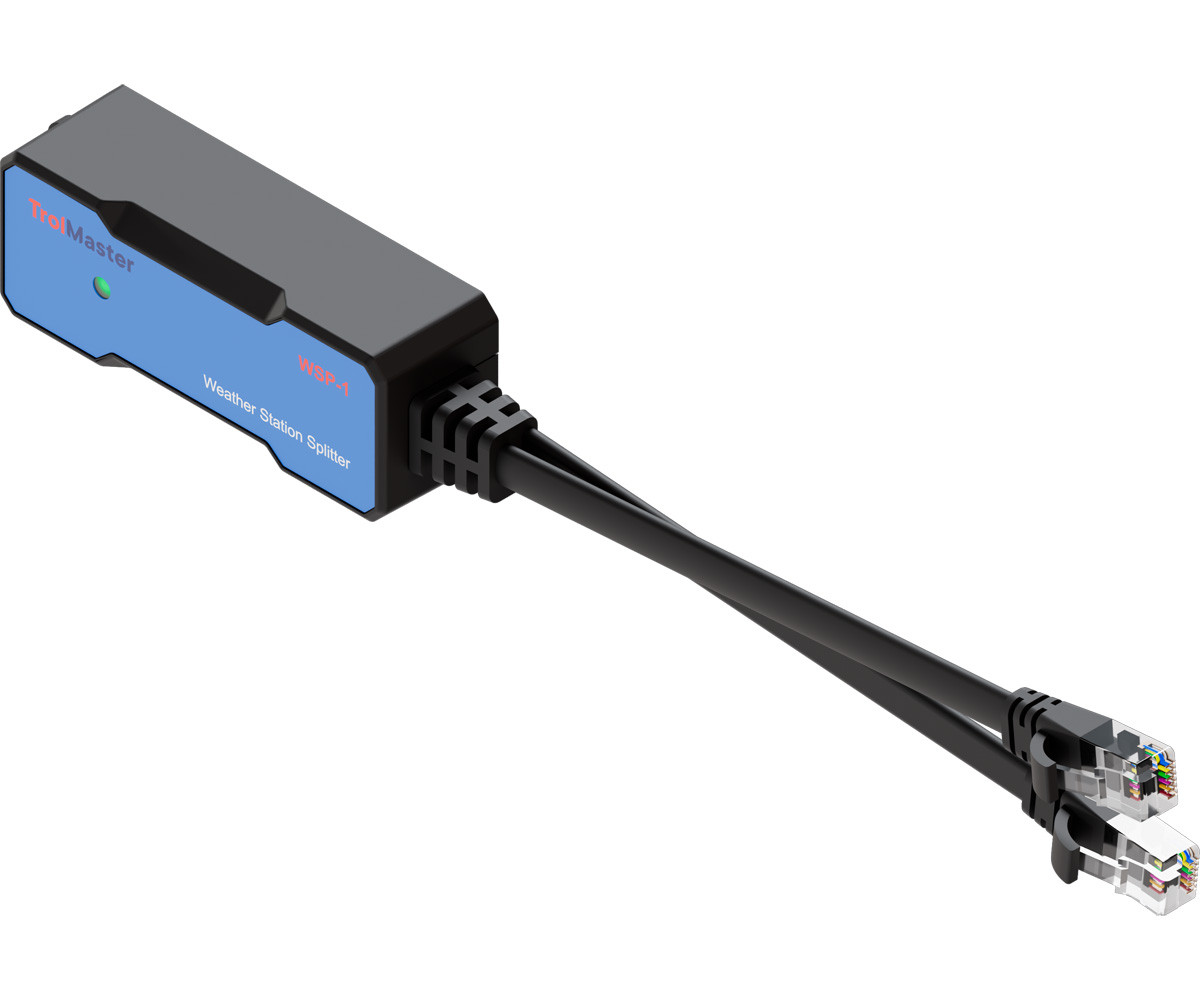

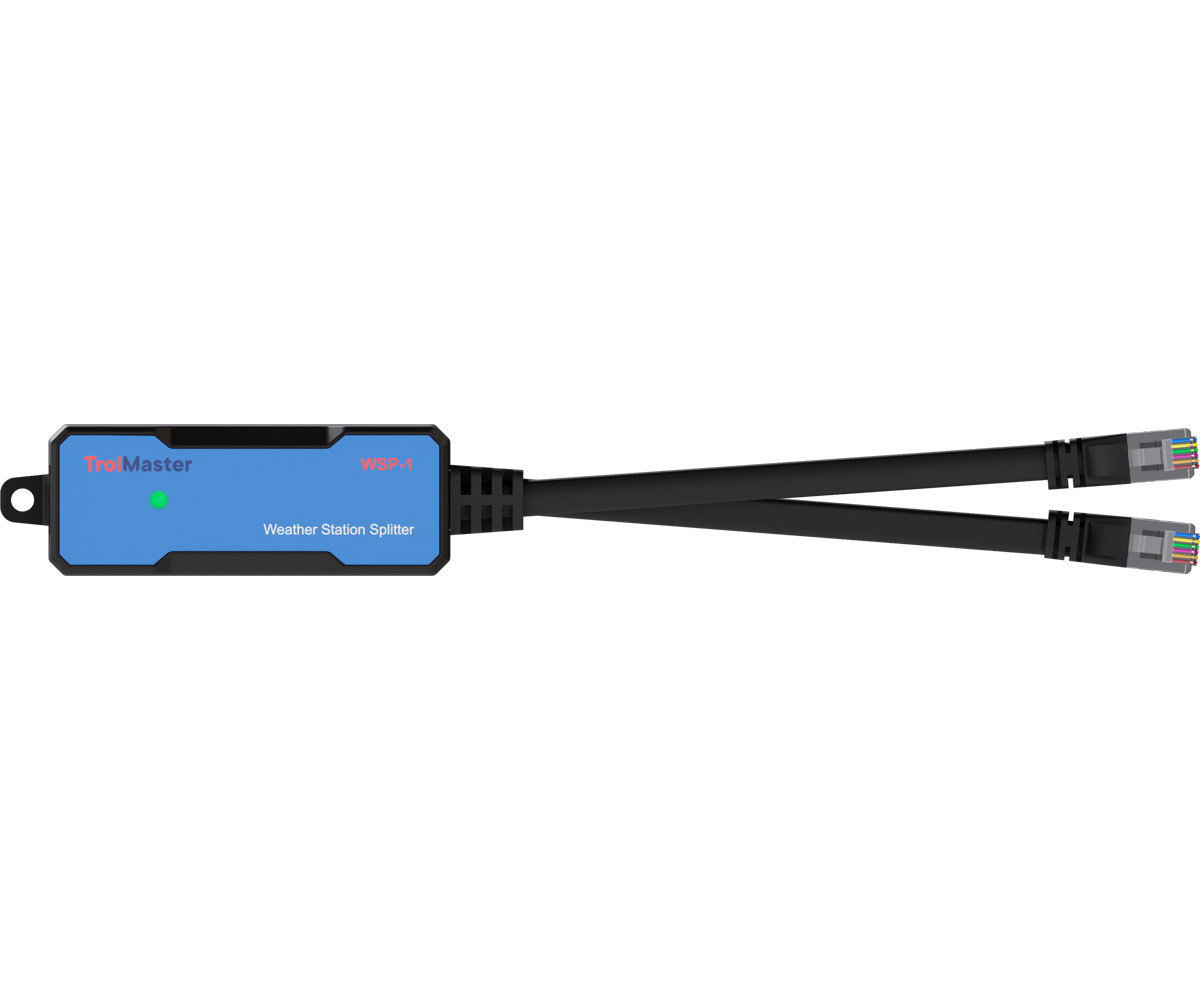

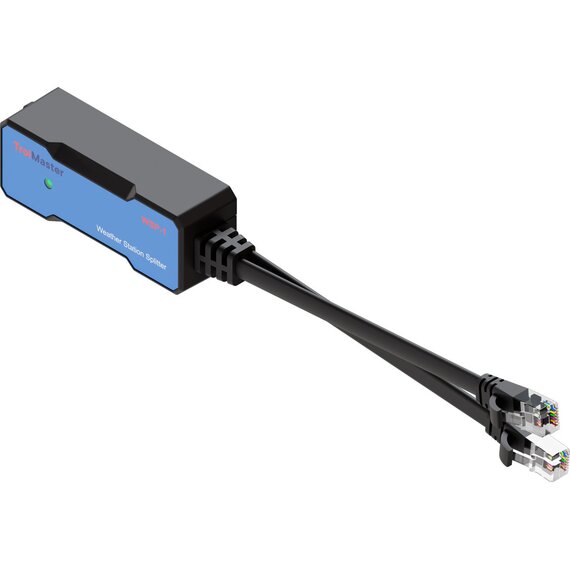

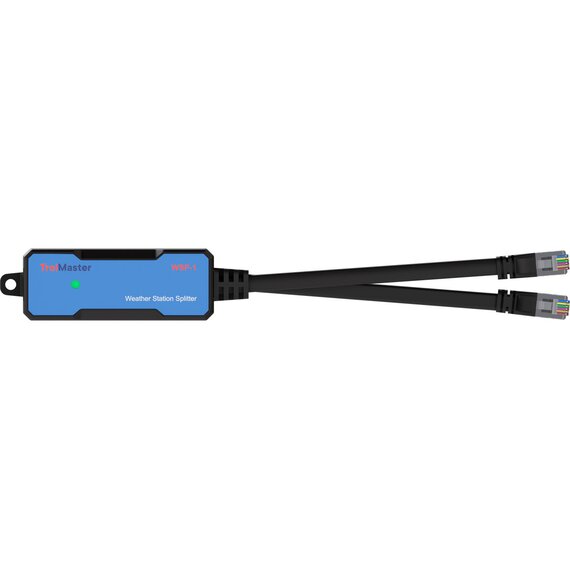

Running a separate outdoor sensor for every controller adds cost, wiring and mounting points. The WSP-1 splits the signal from a single MBS-WS Weather Station Sensor so two controllers receive the same data at once. Its IP66 rating protects it against dust and water.

This single unit suits growers who already run an MBS-WS and want to bring a second controller onto the same readings. It is compact and light, so it fits easily in a control area or enclosure.

Key Features & Benefits

• One signal, two controllers — both controllers receive weather station data simultaneously.
• IP66 rating — strong protection against dust and water.
• Daisy-chain expansion — multiple MBS-WS units can be chained to serve more than two controllers.
• RJ12 coupler included — a female-to-female coupler comes in the box.
• Compact body — 6.14 x 3.27 x 1.18 in and 0.18 lb shipping weight.

Who Should Use TrolMaster Weather Station Splitter

Growers who manage more than one controller and use an MBS-WS Weather Station Sensor will get the most from it. It fits greenhouse and facility setups that need shared, synchronized environmental data.

About TrolMaster Weather Station Splitter

The WSP-1 is a TrolMaster data-sharing device made for the MBS-WS Weather Station Sensor. It runs on 12VDC +-1V, works in temperatures of 32-104°F (0 to 40°C) and humidity up to 90% RH. The package holds one splitter and one RJ12 female-to-female coupler.

Frequently Asked Questions

Q: What does the WSP-1 do?
A: It splits one MBS-WS Weather Station signal so two controllers can read it at the same time. This removes the need for a second sensor.

Q: Which sensor does it work with?
A: It is designed for the MBS-WS Weather Station Sensor. Compatibility with other sensors is not listed.

Q: Can I connect more than two controllers?
A: Yes, by daisy-chaining multiple MBS-WS units to extend the signal beyond two controllers.

Q: What does IP66 mean?
A: IP66 is an ingress protection rating. It indicates strong protection against dust and water.

Q: What are the operating limits?
A: It works from 32 to 104°F (0 to 40°C) at up to 90% RH. Keep it within these limits.

Q: What is in the box?
A: One Weather Station Splitter and one RJ12 female-to-female coupler.
