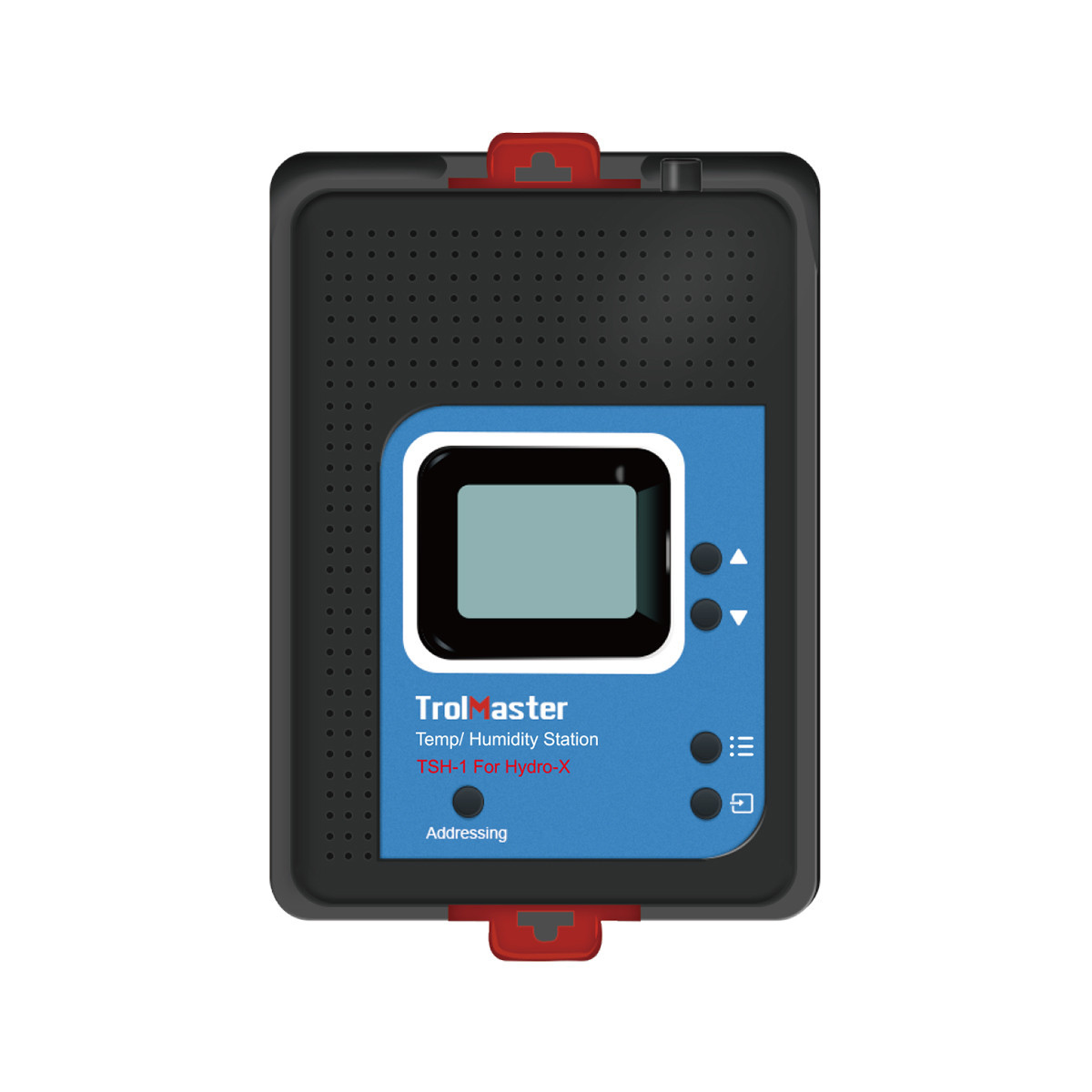

TrolMaster Temp/ Humidity Station with 0-10V protocol

Drive Variable-Speed Equipment With a Proportional Signal

On/off switching is a blunt tool for equipment that can actually run at variable speed, wasting the fine control a modern fan or vent motor is built for. The TrolMaster TSH-1 station outputs a 0-10 volt analog signal instead, working with the HCS-1 or HCS-2 controller to drive that equipment proportionally rather than simply cycling it on and off.

It can be assigned to either temperature or humidity control, with separate day and night idle speed settings built into the unit, while additional setpoints are managed through the connected HCS controller itself.

Key Features & Benefits

• 0-10V Proportional Output — drives variable-speed fans, vents, and similar equipment.
• Assignable to Temperature or Humidity — configures for whichever control task the equipment handles.
• Onboard Day/Night Idle Settings — sets separate idle speeds directly on the unit.
• Micro-SD Firmware Updates — keeps the station current without hardware swaps.

Who Should Use the TSH-1 Station

Growers running variable-speed fans or vents who want proportional control rather than simple on/off cycling are the intended users of the TSH-1. It requires an HCS-1 or HCS-2 controller, so confirm that pairing is in place before ordering.

About TrolMaster

TrolMaster builds the TSH-1 for equipment that can do more than switch fully on or off, extending proportional control into its Hydro-X lineup from the company's Sacramento, California headquarters. Assigning the station to either temperature or humidity keeps one device station flexible across different roles in a build.

Frequently Asked Questions

What kind of equipment can the TSH-1 control?

Variable-speed fans, vents, or any other equipment that accepts a 0-10 volt input signal. It is not built for equipment that only accepts simple on/off switching.

Can I assign this station to humidity instead of temperature?

Yes, the TSH-1 can be configured for either temperature or humidity control. That assignment is set during controller configuration, not fixed at the factory.

Where are day and night idle speeds set?

Directly on the TSH-1 unit itself. Additional day and night setpoints beyond idle speed are managed through the connected HCS controller.

How does this station connect to my controller?

To an HCS-1 or HCS-2 Hydro-X controller, over the same RJ12-based device wiring used throughout TrolMaster's lineup. No separate power supply is required for the station.
