TrolMaster DSR-1 Relay Device Station - 25 Amp

Switch Higher-Load Equipment From Your Controller - 25A Output

Many environment controllers cannot switch heavy equipment directly, which leaves growers wiring around the problem. The DSR-1 is a high-current output module that connects to compatible TrolMaster control systems and handles loads up to 25A. Its configuration lets one module serve as a temperature, humidity, CO2 or timer device.

This single unit suits growers adding one high-load output to an existing TrolMaster setup, whether in a home grow room or a larger commercial space. Order one for each piece of equipment you want to control independently.

Key Features & Benefits

• 25A output rating — switches higher-load connected equipment.

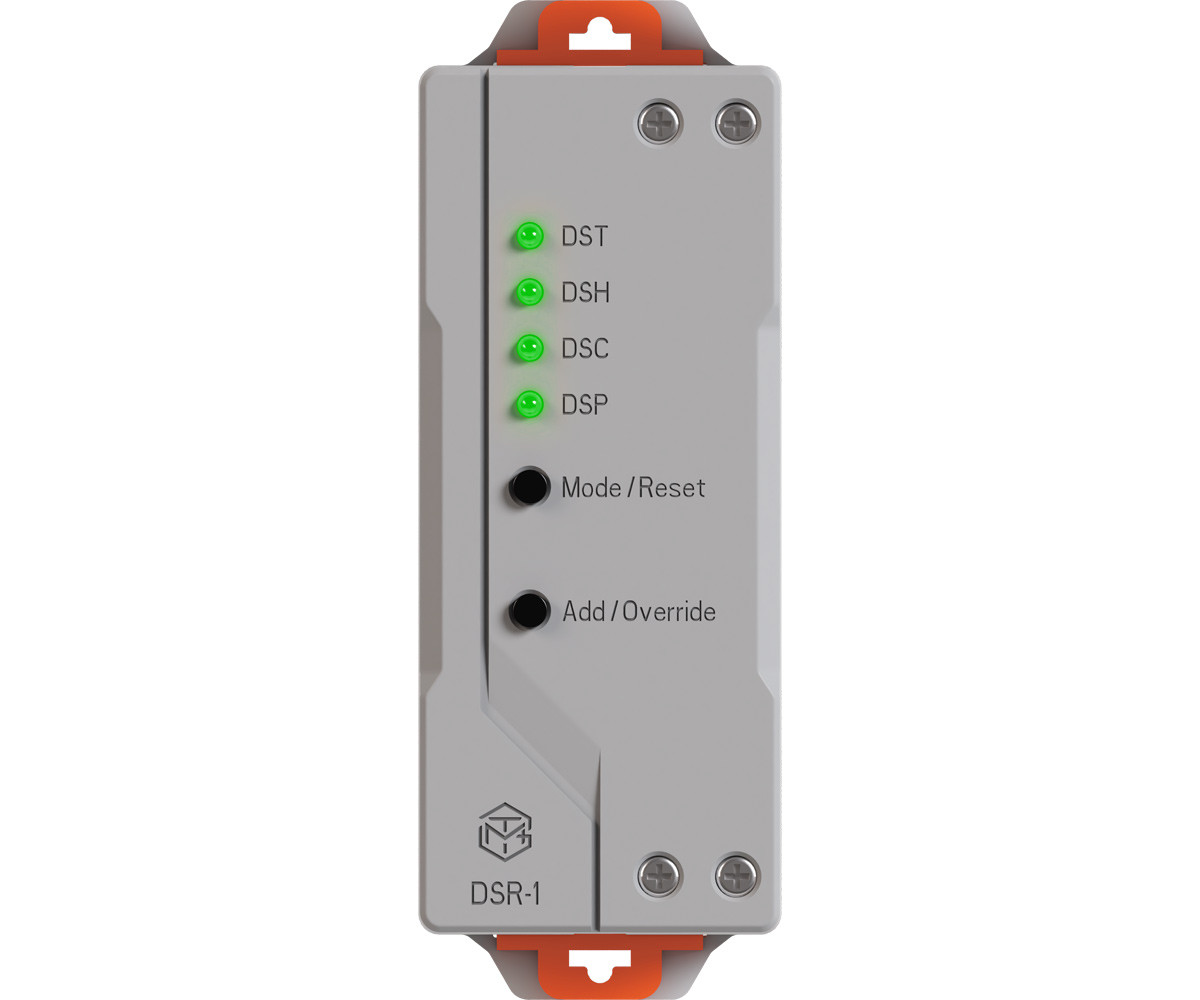

• Four configurations — set it up as a temperature (DST), humidity (DSH), CO2 (DSC) or timer (DSP) device module.
• Wide voltage range — input and output are rated 100-277V~, 50/60Hz.

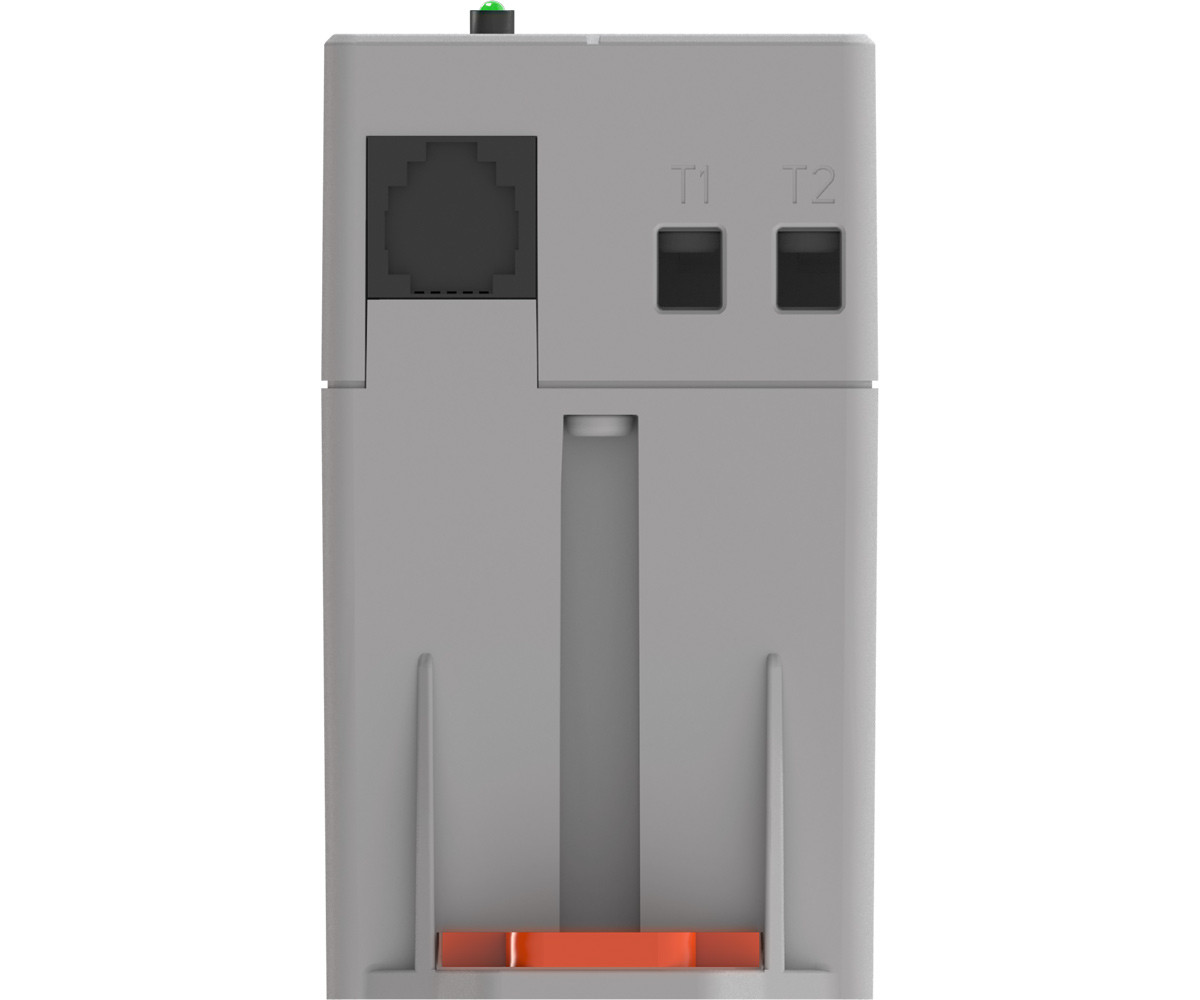

• Plug and play connection — connects with the supplied RJ12 cable.
• Built-in protections — overload protection, a local override function and a local alarm for relay contact adhesion.

Who Should Use the TrolMaster DSR-1

Use it if you run a Hydro-X, Aqua-X, Carbon-X or Green-X system and need to control equipment that draws more current than your controller handles directly. It fits indoor and commercial cultivation rooms alike.

About TrolMaster DSR-1

The DSR-1 is a relay device station from TrolMaster for its environment control systems. It measures 6.69 x 3.54 x 2.13 in and ships at 0.82 lb. It operates in 32-104°F (0-40°C) at humidity up to 90%, and carries a 3-year warranty.

Frequently Asked Questions

Q: Which control systems work with the DSR-1?
A: It is compatible with Hydro-X, Aqua-X, Carbon-X and Green-X control systems. Check your controller's model before ordering.

Q: What can I configure it to do?
A: You can configure it as a temperature (DST), humidity (DSH), CO2 (DSC) or timer (DSP) device module. Pick the one that matches the equipment you are controlling.

Q: What is a relay device station?
A: It is a module that receives a signal from your controller and switches a higher-current load on or off. This lets the controller manage equipment it could not power directly.

Q: What is included?
A: The package includes the unit and a 4 ft RJ12 cable. Use the cable to connect it to your system.

Q: What conditions can it operate in?
A: It is rated for 32-104°F (0-40°C) and humidity up to 90%. Install it where it stays within those limits.
