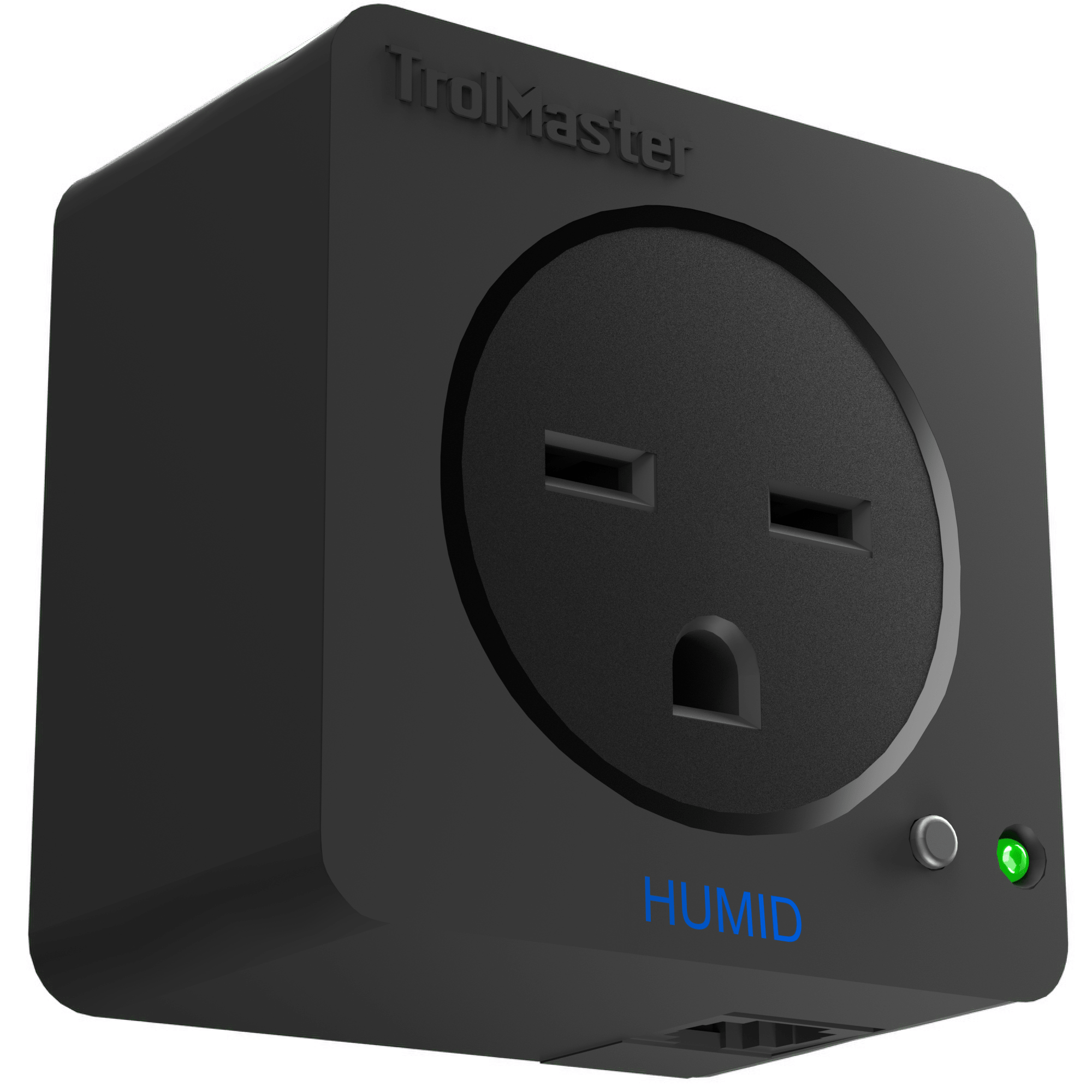

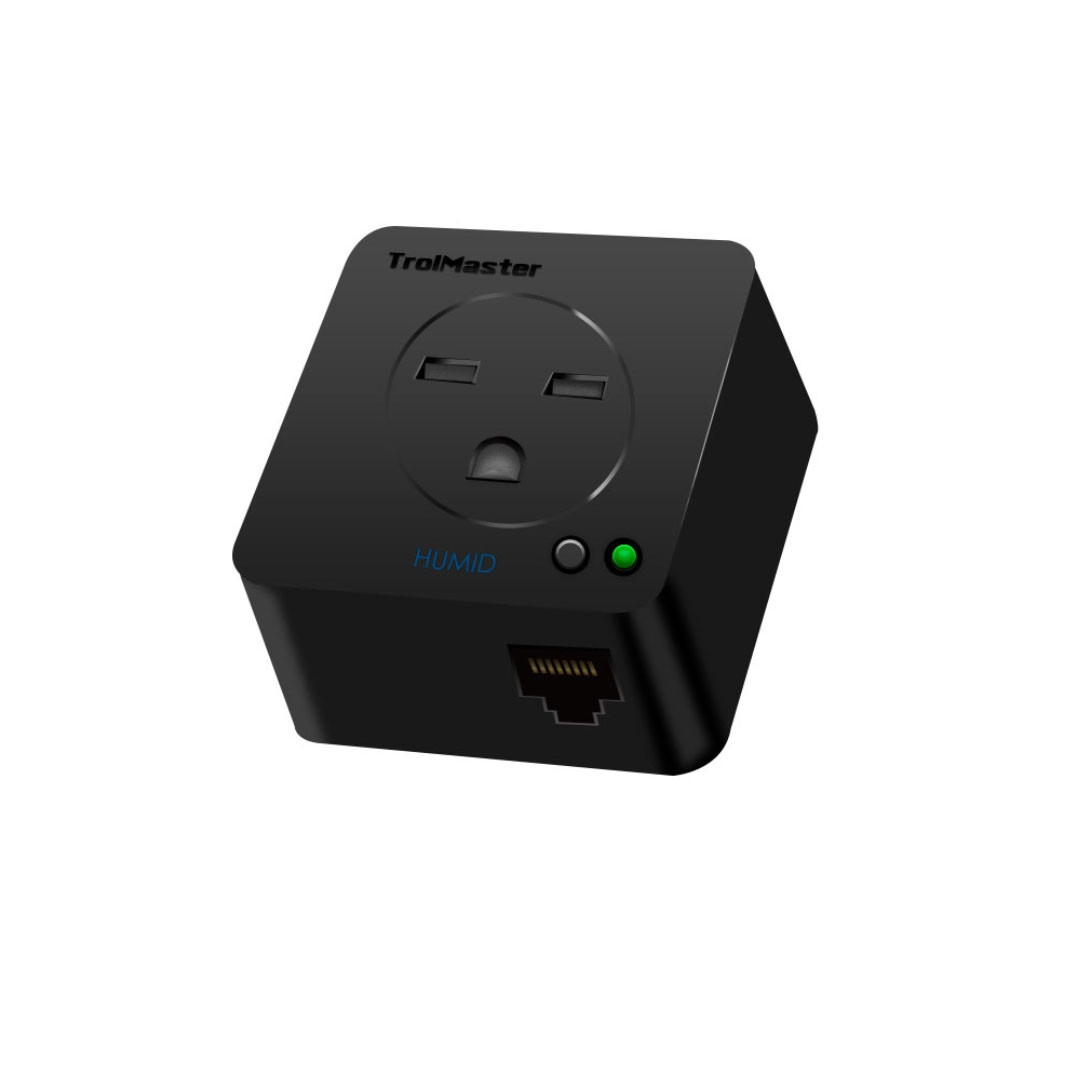

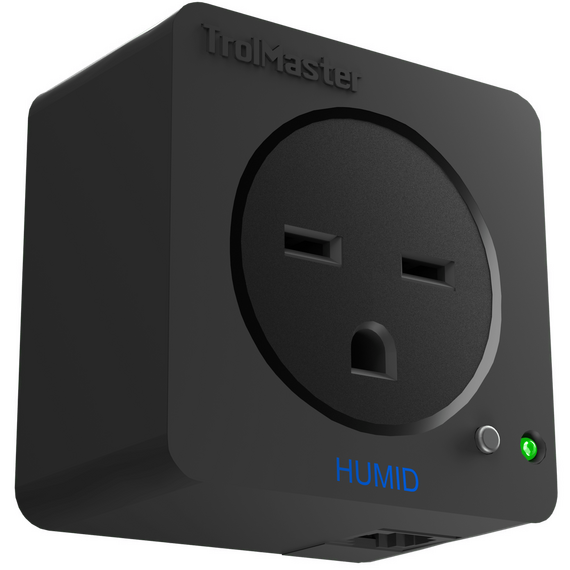

240V Humidity Device Station with cable set

Automate Humidifiers and Dehumidifiers, 240V

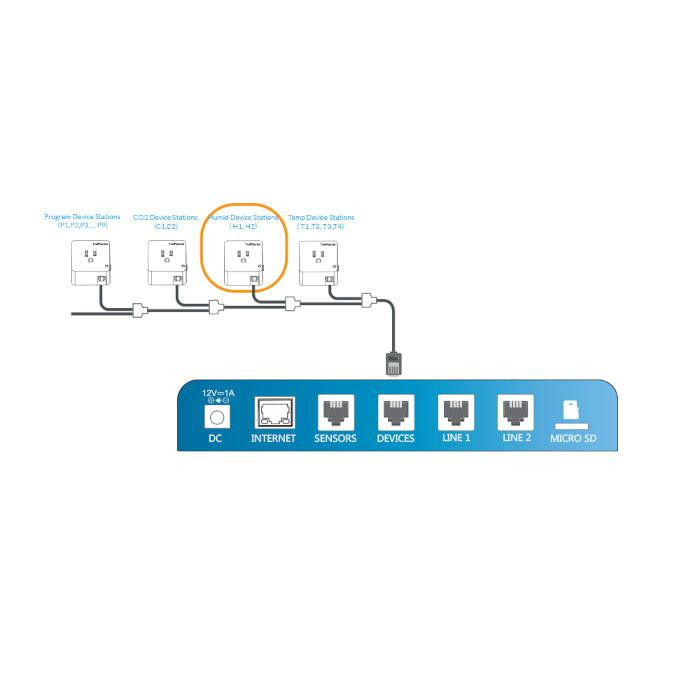

A humidity device station gives the Hydro-X controller a direct switch for humidifying or dehumidifying equipment, so a room's target humidity range is enforced automatically rather than adjusted by hand throughout the day. The station wires between the controller and the equipment itself, with no changes needed to the equipment's own settings.

This 240-volt version is rated for switching loads up to 10 amps, though TrolMaster recommends pairing it with dehumidifiers under 7 amps to keep circuit loading well within the relay's rated capacity.

Key Features & Benefits

• Switches Humidifiers or Dehumidifiers — controls either equipment type depending on how humidity setpoints are configured in the controller.
• Address Assignment — identifies the station individually so the Hydro-X controller can manage several at once.
• All Wiring Hardware Provided — comes with the 16 ft and 4 ft RJ12 cables and a T-splitter needed to hook it up.
• Compact Inline Housing — installs between the controller and the equipment's power cord without extra wiring.

Who Should Use a TrolMaster Humidity Device Station

Growers running a Hydro-X-controlled room who want humidifiers or dehumidifiers to respond automatically to programmed humidity setpoints, instead of being switched on and off by hand, are the right fit for a humidity device station. Always confirm the connected equipment's amperage draw stays within the station's rating before wiring it in.

About TrolMaster

Humidity device stations are one of several plug-in modules TrolMaster sells to extend its Hydro-X controllers, engineered at the company's Sacramento, California facility for growers who add equipment control gradually as a room's needs change. Each module handles one equipment category so a build stays organized as it grows.

Frequently Asked Questions

Can one station switch both humidifiers and dehumidifiers?

Yes, the same station can control either type. Which one it switches depends on how the humidity setpoints are configured in the connected Hydro-X controller.

Does the station need its own address configuration?

No manual configuration is required. The station identifies itself individually on the Hydro-X network, letting the controller manage several stations at once.

What comes packaged with the humidity station?

A 16 ft RJ12 cable, a 4 ft RJ12 cable, and a T-splitter come packaged with the unit. That cable set connects it directly into an existing Hydro-X chain.

What happens if my equipment draws more current than the station allows?

Equipment above the station's amperage rating should be switched through a relay or contactor rated for the larger load. Wiring oversized equipment directly can damage the station.

How do I know which humidity station voltage to order?

Check the connected humidifier or dehumidifier's rated input voltage against the station's own rating before ordering. Mismatched voltage can prevent the equipment from operating correctly.
