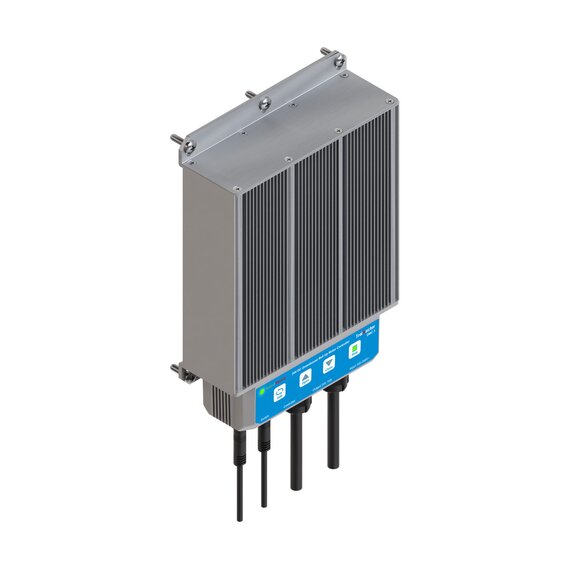

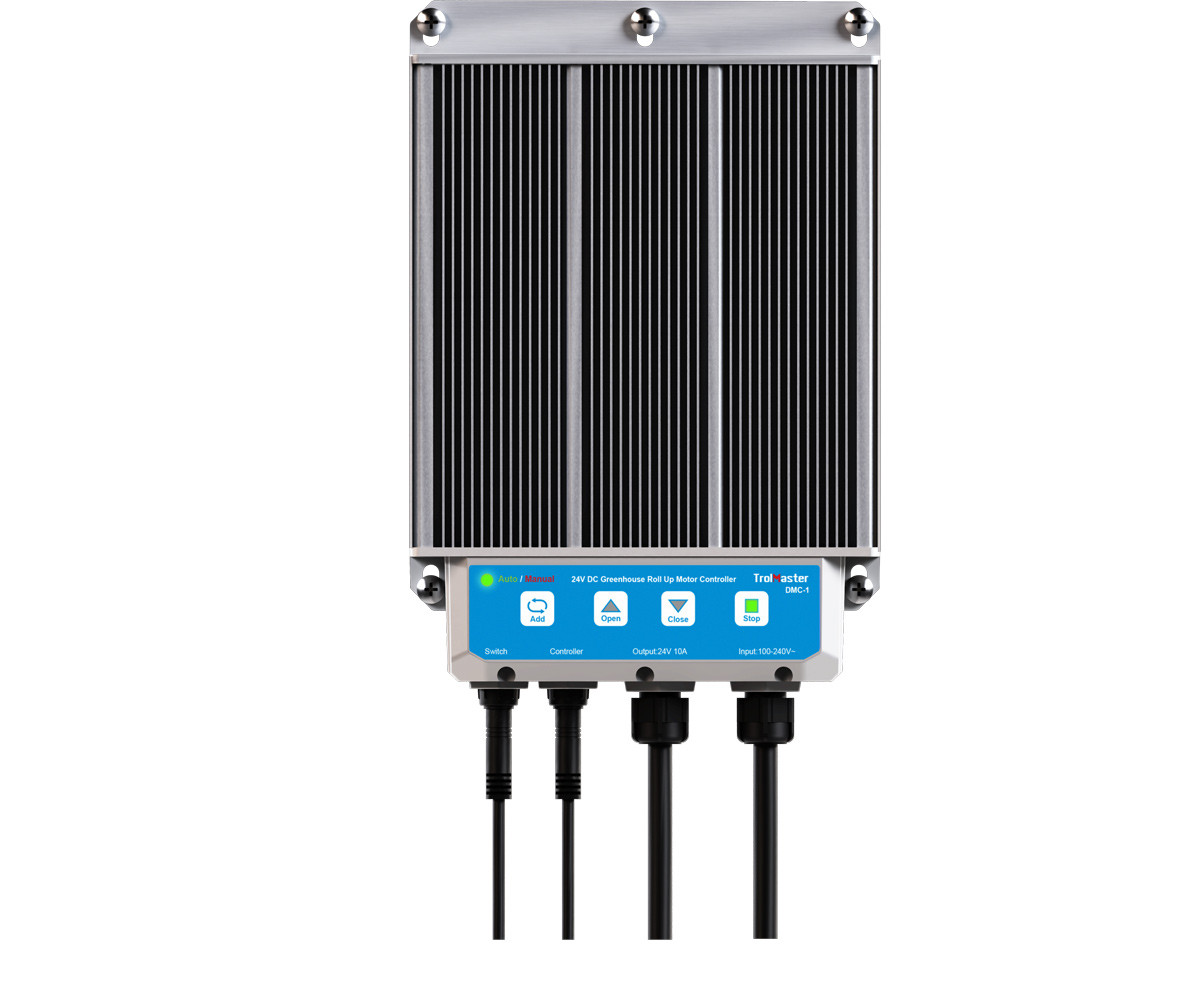

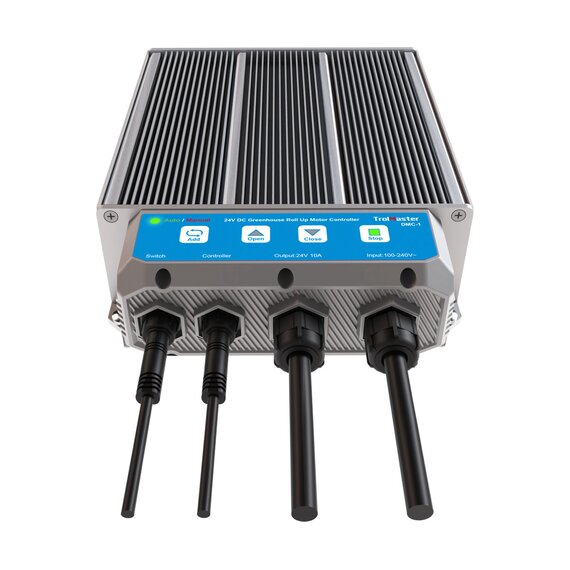

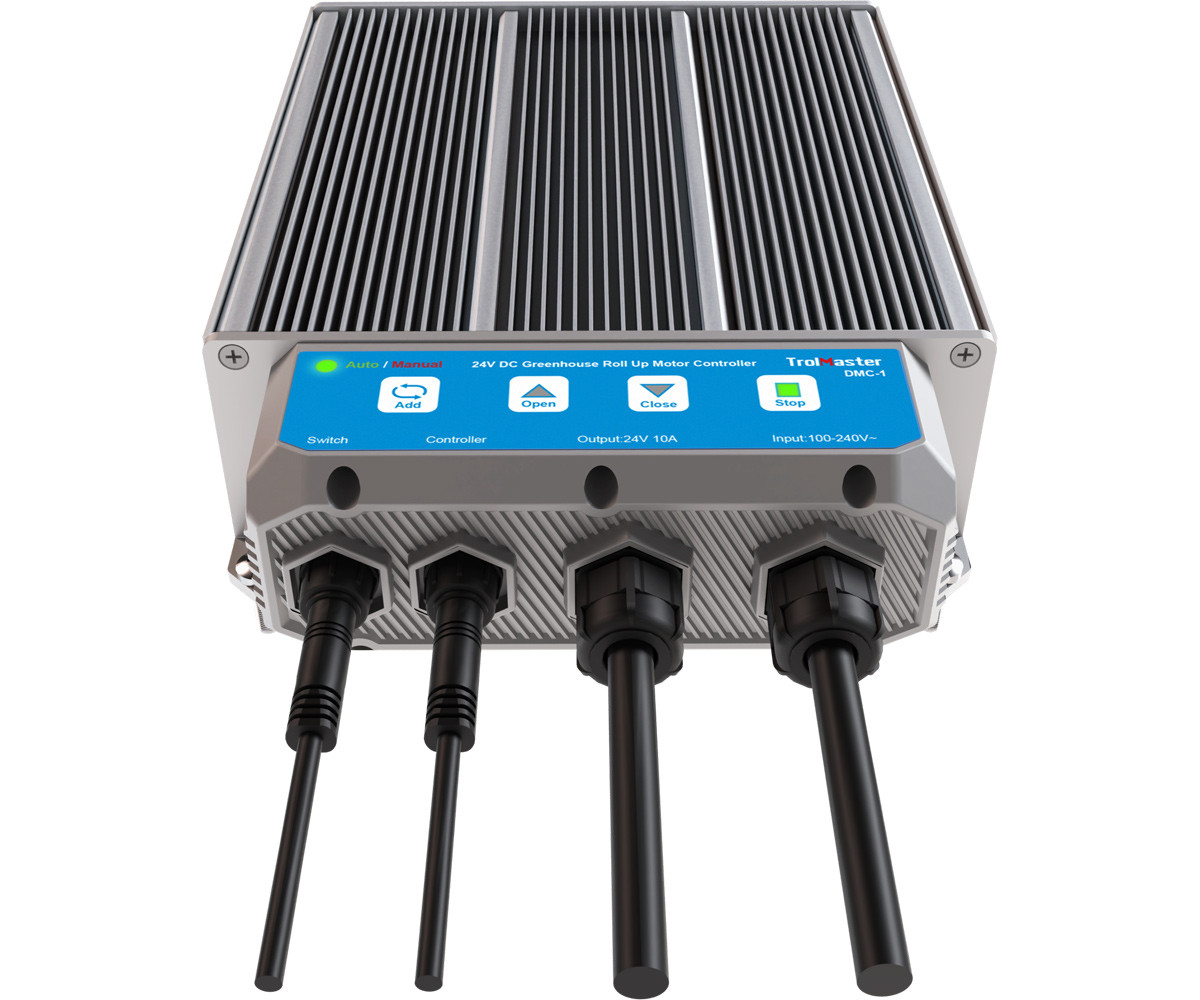

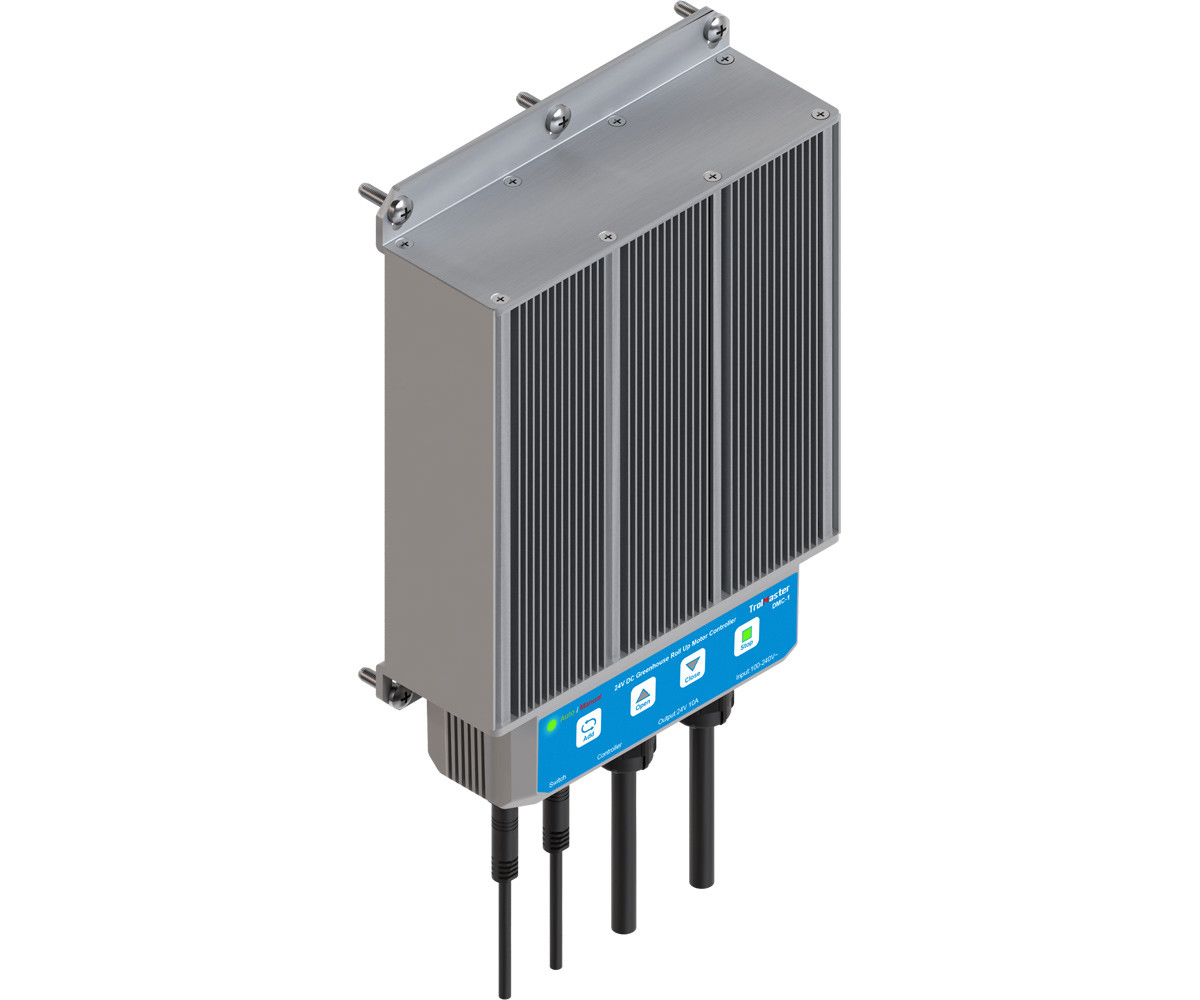

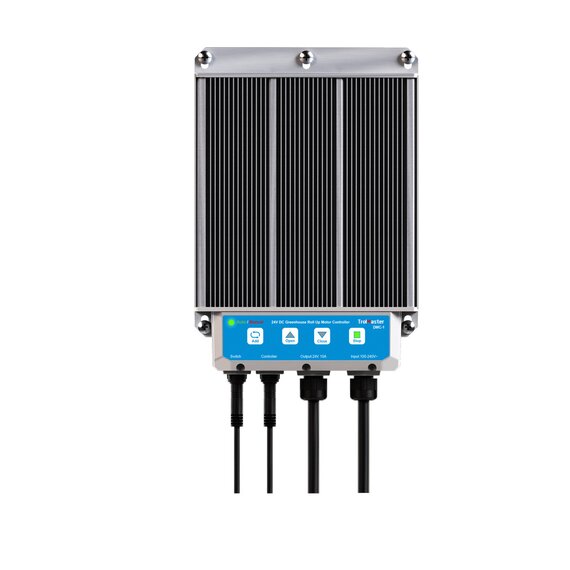

TrolMaster DMC-1 24V DC Greenhouse Roll Up Motor Controller - 10.83 x 6.46 x 2.56-in - 1 Count

Automate Greenhouse Curtain Motors - 10.83 x 6.46 x 2.56 in

Opening and closing greenhouse curtains by hand costs time and makes it hard to hold steady conditions. The DMC-1 drives curtain motors with forward, reverse and stop control, and it connects to the TrolMaster GCS system so curtains can be managed with the rest of your environment controls. It also offers timeout shutoff and overcurrent protection for the motor.

This is a single controller sold each. It suits a grower who needs to control one curtain motor, or who adds units as the greenhouse grows. Multiple units can be bought to cover more curtains.

Key Features & Benefits

• Manual and automated control — run curtain motors by hand or through the connected system.
• RS-485 communication — a 4-pin waterproof connector links the controller to the GCS system.
• Motor protection — timeout shutoff and overcurrent protection help guard the motor.
• Wide input voltage — accepts 100-240VAC at 50/60Hz.
• Cable included — a 12ft RJ12 to 4-pin IP65 connector cable comes in the box.

Who Should Use TrolMaster DMC-1

Greenhouse operators, from home gardeners to licensed commercial growers, who want motorized curtain control tied into a central environment system.

About TrolMaster DMC-1

The TrolMaster DMC-1 is a 24V DC motor controller for greenhouse roll up curtains. It measures 10.83 x 6.46 x 2.56 in, ships at 1.3 lb, and carries a 3-year warranty. It has an IP44 waterproof rating and operates from 32-104°F (0-40°C) at up to 90% RH.

Frequently Asked Questions

Q: What does the DMC-1 control?
A: It controls 24V curtain motors, with forward, reverse and stop operation. You can use it manually or as part of an automated setup.

Q: How does it connect to the controller system?
A: It uses RS-485 communication through a 4-pin waterproof connector. A 12ft RJ12 to 4-pin IP65 connector cable is included.

Q: What does IP44 mean?
A: IP44 is an ingress protection rating for resistance to solid objects and splashing water. It is not rated for submersion or direct hose spray, so mount it where it stays protected.

Q: What wire should I use for the output?
A: Output wiring cannot be less than 16 AWG. Use that gauge or heavier.

Q: What conditions can it operate in?
A: It works from 32-104°F (0-40°C) at humidity up to 90% RH. Keep it within those limits.

Q: What comes in the box?
A: You get one DMC-1, a power item, a cross screwdriver and the 12ft connector cable.
