Carbon-X Controller with cable set, Free SmartPhone App

Centralized CO2 Monitoring Across Multiple Rooms

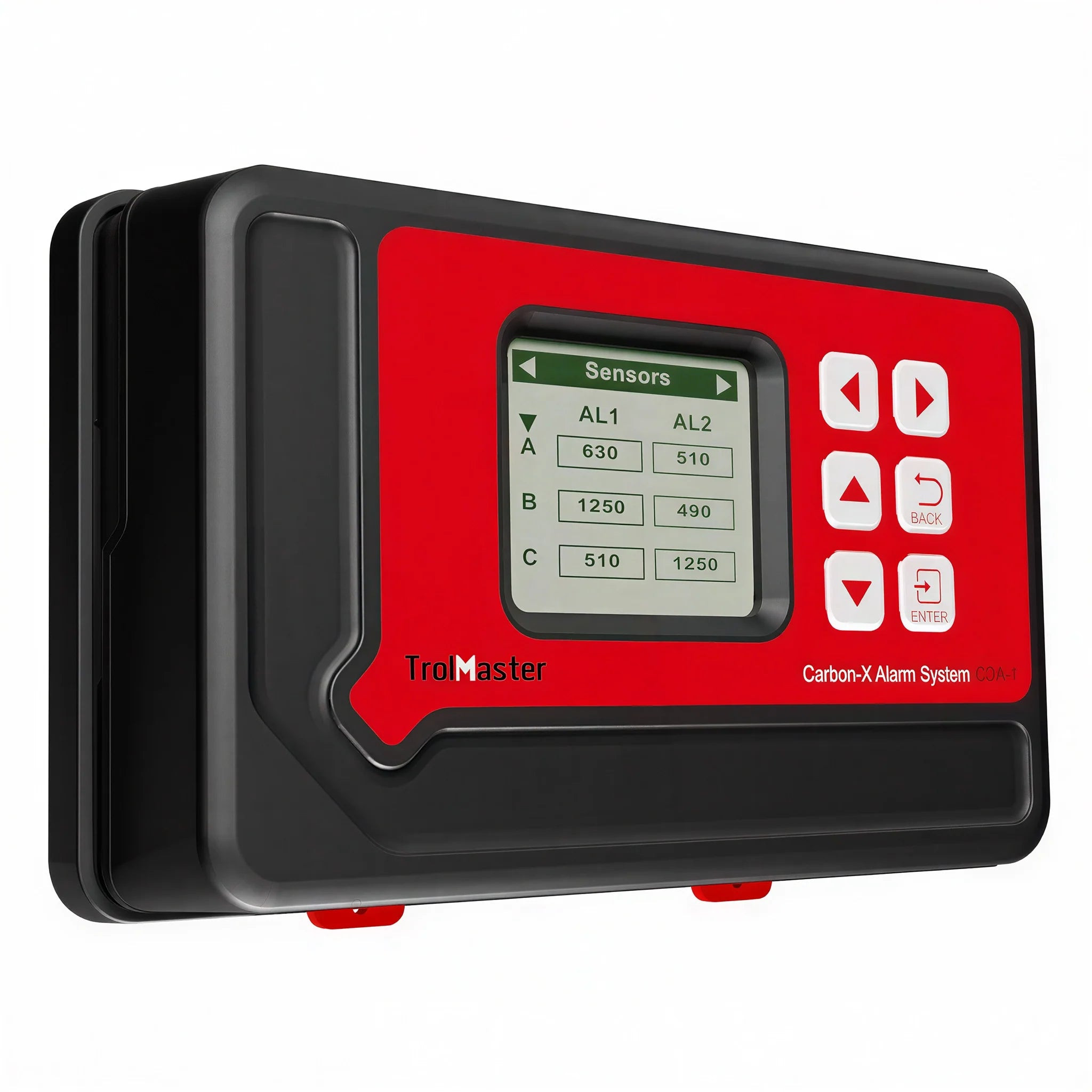

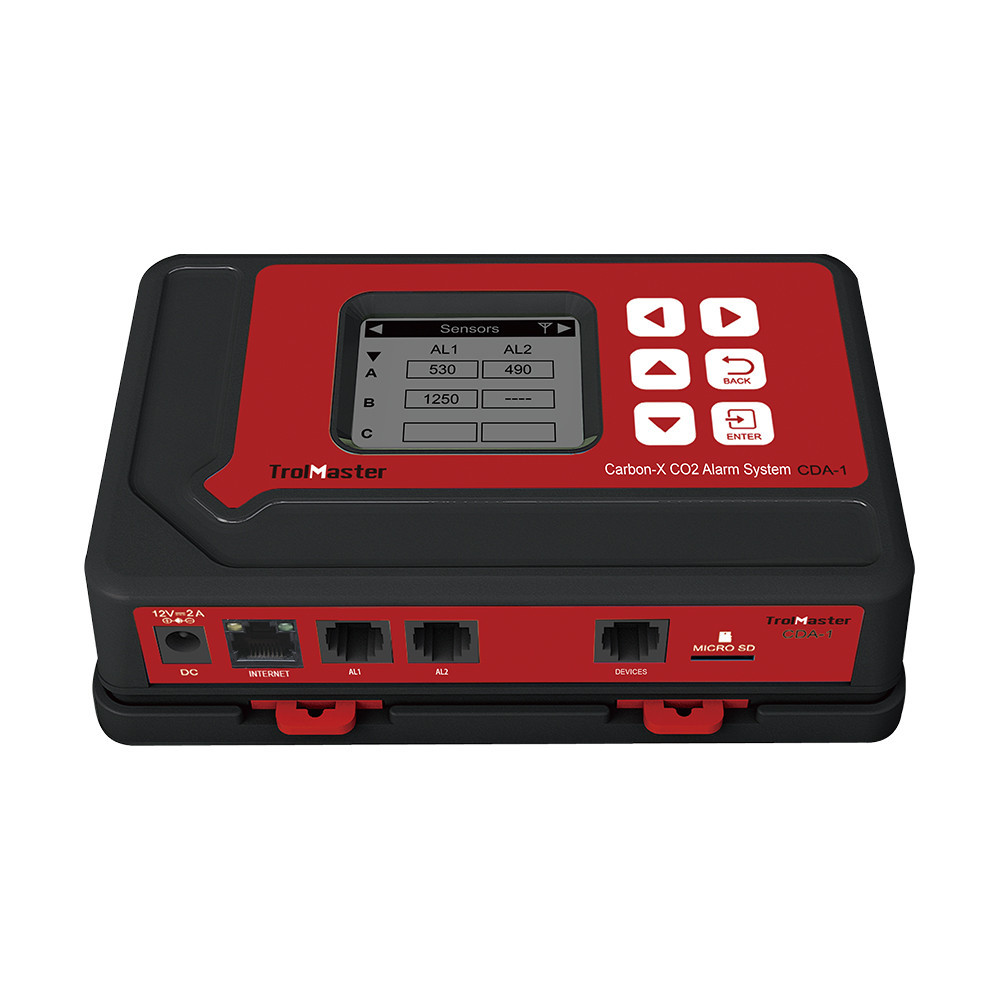

The CDA-1 is the brain of TrolMaster's Carbon-X system, providing critical CO2 monitoring across up to 13 separate zones or rooms from a single controller.

Set both high-level and low-level CO2 alerts to match your local regulations, and let the Carbon-X automatically control ventilation fans, dampers, and CO2 valves, or signal your facility's fire alarm panel when needed. Free app connectivity lets you monitor CO2 levels and receive notifications remotely.

Key Features & Benefits

• Up to 13 Monitored Zones — Track CO2 levels across multiple rooms from one controller.
• Adjustable Alert Thresholds — Set high (up to 30,000ppm) and low (5,000ppm) alerts to match local rules.
• Automated Device Control — Operates fans, dampers, and CO2 solenoid valves automatically.
• Remote App Monitoring — Receive alerts and check CO2 status from the free TrolMaster app.

Who Should Use the CDA-1 Carbon-X Controller

Growers with multiple rooms supplementing CO2 who need centralized monitoring, automatic shut-off safeguards, and remote alerts if levels become unsafe.

Specifications

Operates on 100-240VAC at 50/60Hz, supporting up to 13 sensors per alarm channel and 40 controlled outputs. Rated for working temperatures of 32-122°F and humidity under 90%. Includes two 16 ft RJ12 cables and a 12V power adapter.

Frequently Asked Questions

How many zones can the CDA-1 monitor?

Up to 13 separate zones or rooms per system.

Can the CDA-1 shut off CO2 automatically?

Yes, by wiring the facility's main CO2 solenoid in series with one of the system's control modules.

Does each monitored room need its own alarm?

Yes, each room monitored by the Carbon-X should have its own audio-visual alarm to alert occupants locally.

Can I monitor CO2 levels remotely?

Yes, the free TrolMaster app lets you check status and receive alert notifications remotely.
