TrolMaster AMC-1 Single/Three Phase Curtain Motor Controller - 100-277V - RS-485 - IP54

Control Curtain Motors on Single or Three Phase Power - 4A Output

Greenhouse curtains need dependable motor control, and mixed power supplies complicate the wiring. The AMC-1 drives curtain motors from single phase or three phase power, with forward and reverse operation, stopping, timeout shutoff and overcurrent protection. It is designed to work with the TrolMaster GCS-1 Green-X Greenhouse System for centralized control.

This is a single controller sold each. It suits growers who manage one curtain motor line, and those who add units as a greenhouse expands.

Key Features & Benefits

• Single and three phase input — one model covers either supply.
• Forward and reverse operation — opens and closes curtains from one controller.
• Motor protection — overcurrent protection and timeout shutoff safeguard the motor.
• RS-485 communication — a 4-pin waterproof connector links the unit to the control system.
• 12 ft cable included — an RJ12 to 4-pin IP65 connector cable ships in the box.

Who Should Use TrolMaster AMC-1

Greenhouse operators who want automated curtain control tied into a central environment system. Installation should be done by a qualified professional.

About TrolMaster AMC-1

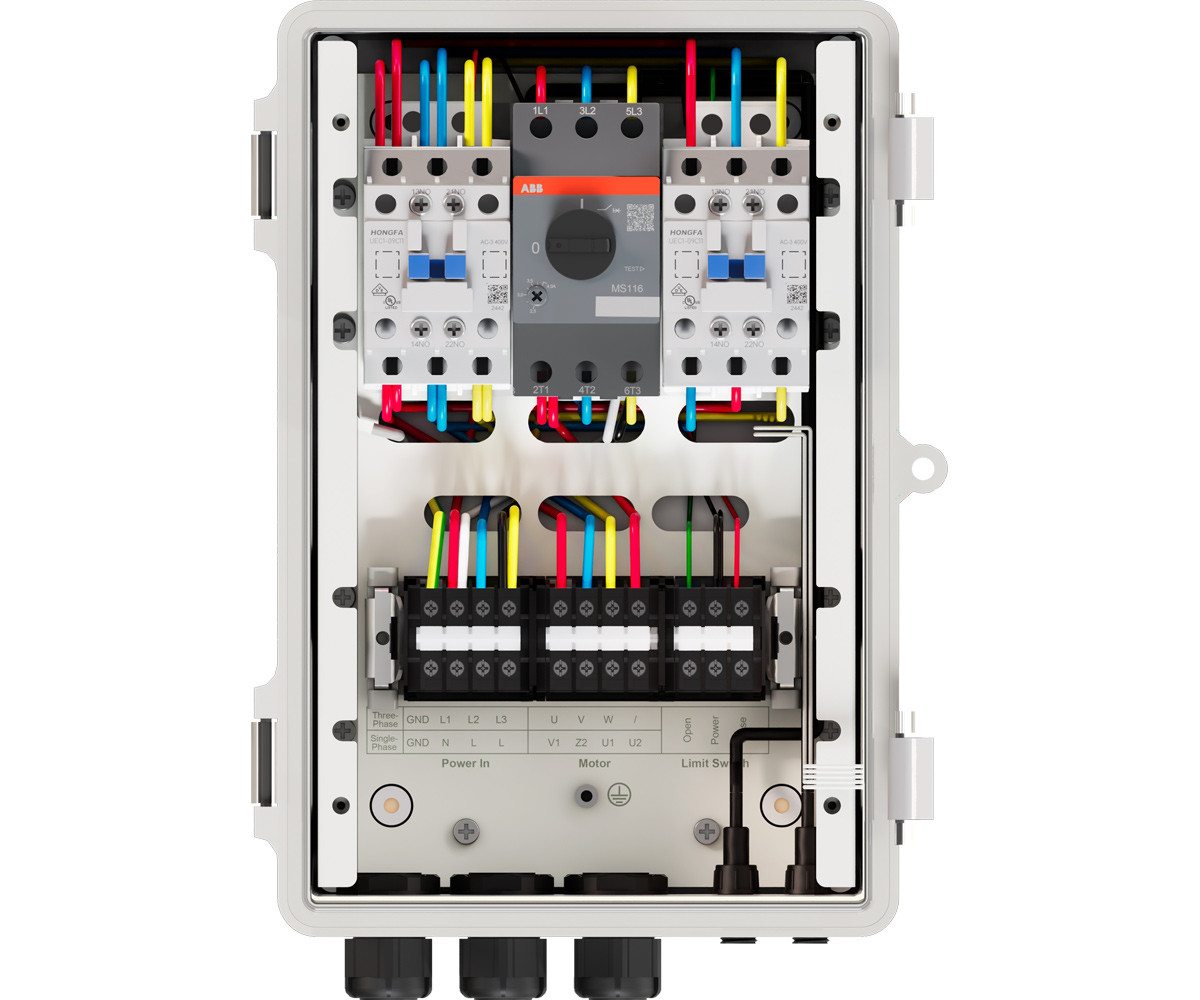

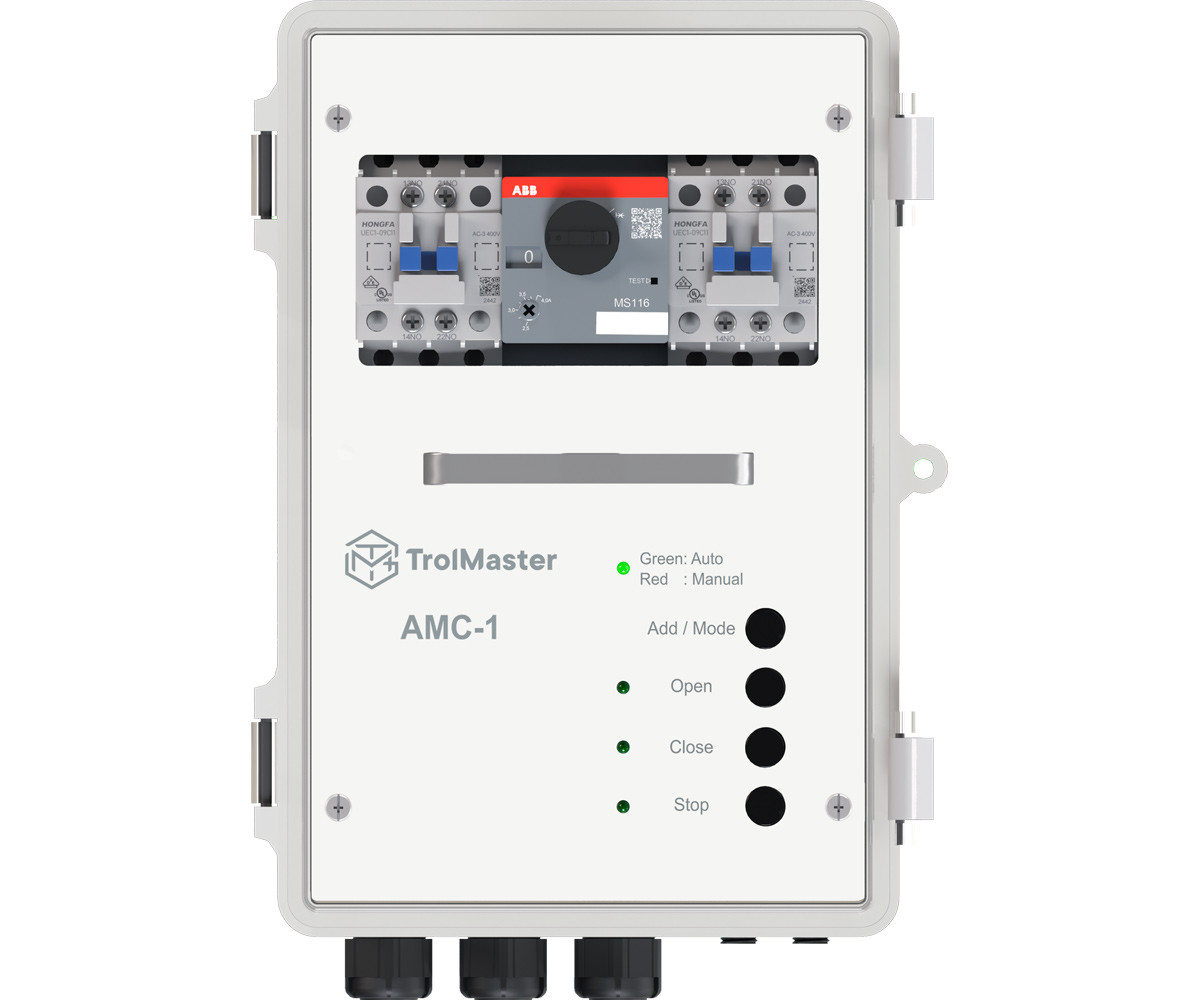

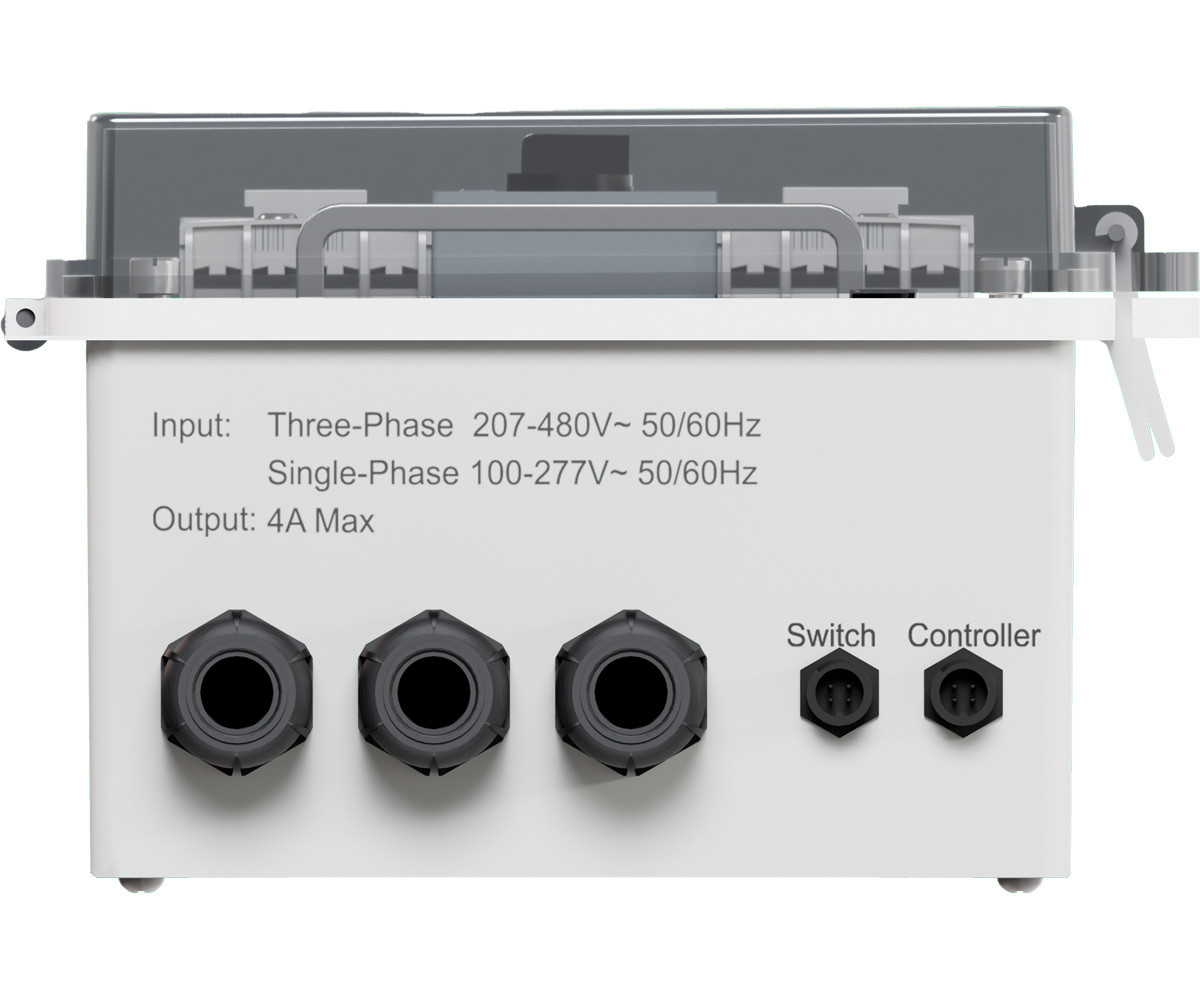

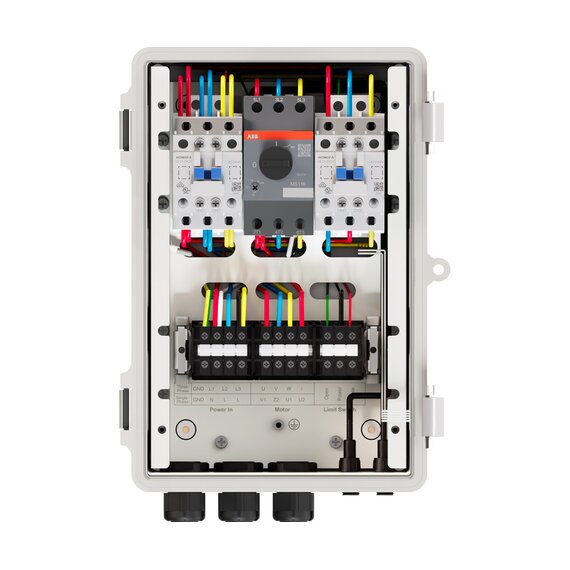

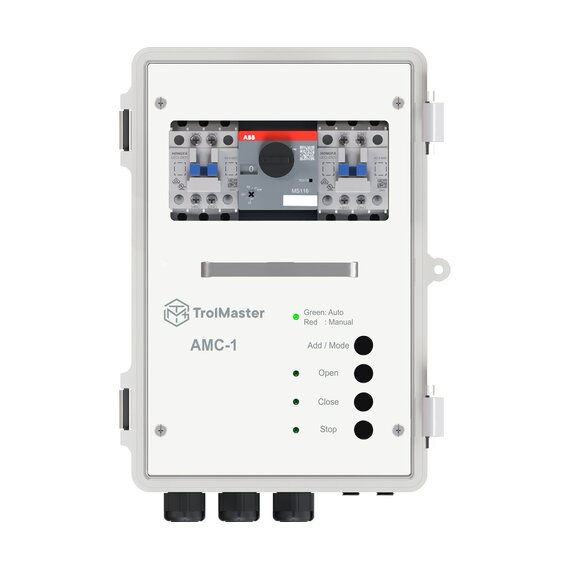

The AMC-1 is a wall-mounted curtain motor controller from TrolMaster. It accepts 100-277V single phase or 207-480V three phase input at 50/60Hz, with a maximum output current of 4A. It carries an IP54 waterproof rating and conforms to UL STD.508A and is certified to CSA STD.C22.2#286. The distributor lists a 3 year warranty.

Frequently Asked Questions

Q: What power can the AMC-1 run on?
A: It accepts 100-277V single phase or 207-480V three phase, both at 50/60Hz. Check your supply before wiring.

Q: Does it work with other control systems?
A: It is designed to integrate with the TrolMaster GCS-1 Green-X Greenhouse System. Compatibility with other systems is not stated, so confirm before buying.

Q: What does IP54 mean?
A: IP54 is an ingress protection rating for dust and water splashes. It is not a submersion rating.

Q: What is included?
A: One AMC-1 controller and one 12 ft RJ12 to 4-pin IP65 connector cable.

Q: Where can I mount it?
A: It is designed for wall mounting only. Confirm that the wall can support the unit's weight.

Q: What conditions can it operate in?
A: Ambient temperature of 32-104°F (0-40°C) and relative humidity up to 90%RH.
