Save 14%

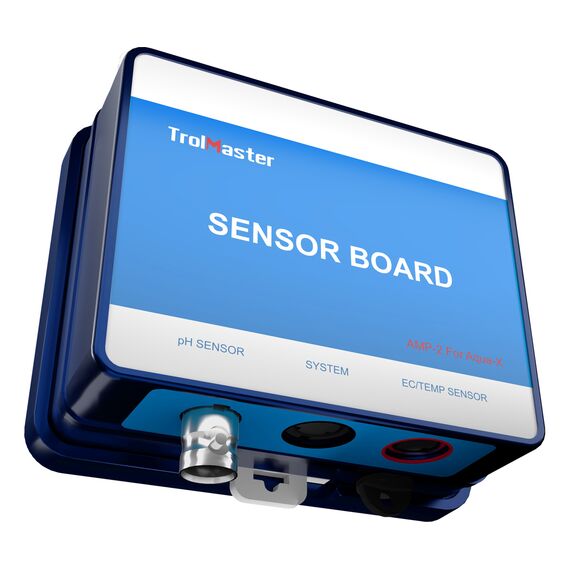

TrolMaster (AMP-2) Sensor Board for Aqua-X
TrolMaster's AMP-2 module connects the Aqua-X to a set of precision pH / EC & temperature probes to constantly measure the pH / EC & temperature of the water being sampled. The AMP-2 works with the TrolMaster PCT-1&2 and the PPH-1&2 probes. Once connected to the Aqua-X, the AMP-2 will display the sensor data on the Aqua-x and on the APP. The minimum and maximum âlimitsâ can be set on the Aqua-X providing 24/7 notification of pH / EC or temperatures that are out of limits.
Features & Benefits:
Package Content:
Specification:
TrolMaster's AMP-2 module connects the Aqua-X to a set of precision pH / EC & temperature probes to constantly measure the pH / EC & temperature of the water being sampled. The AMP-2 works with the TrolMaster PCT-1&2 and the PPH-1&2 probes. Once connected to the Aqua-X, the AMP-2 will display the sensor data on the Aqua-x and on the APP. The minimum and maximum âlimitsâ can be set on the Aqua-X providing 24/7 notification of pH / EC or temperatures that are out of limits.
Features & Benefits:
- Simple-to-Use DIN Type Bracket for Easy Installation
- BNC Terminal (left) allows Direct Connection to pH Sensor
- Mini-DIN Terminal (right) allows Direct Connection to EC/Temp Sensor
- Mini-DIN Terminal (middle) allows Direct Connection to Aqua-X Controller
Package Content:
- 1 x Sensor Board
- 1 x 2.5-Meter-Long Signal Cable
Specification:
- Working Temperature: 32-122°F
- Working Humidity: â¤90%
- Package Dimensions: 160mm(L) x 86mm(W) x 86mm(H)
Brand
TrolMaster
Height (in)
3.39
Length (in)
6.3
Voltage
12
Weight (lb)
0.49
Width (in)
3.39
GTIN
6970000000000
