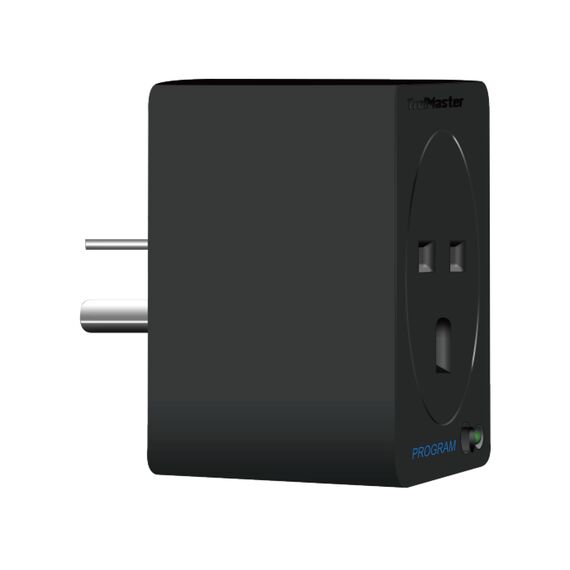

TrolMaster(DSP-2) 240V Hydro-X Program Device Station
The TrolMaster DSP-2 program device module (timer module) works as a multi-function timer. The DSP-2 allows the user to easily connect any device that needs to be controlled by TIME to the Hydro-x. Any device that is 10-amps at 240 volts or less can be controlled by the DSP-2.
The DSP-2 works as a multi-function irrigation timer on the Aqua-X. The DSP-2 can be set to activate at a specific time(s) of day or night and configured to function as a recycling timer with or without a maximum number of cycles setting. The DSP-2 can also be used as a âmaster pumpâ controller on the Aqua-x. A master pump would be plugged into the DSP-2. When connected to the Aqua-x 24vac module, the DSP-2 will automatically turn on the pump when any of the 24vac irrigation zones are activated.
Features & Benefits:
Package Content:
Specification:
The TrolMaster DSP-2 program device module (timer module) works as a multi-function timer. The DSP-2 allows the user to easily connect any device that needs to be controlled by TIME to the Hydro-x. Any device that is 10-amps at 240 volts or less can be controlled by the DSP-2.
The DSP-2 works as a multi-function irrigation timer on the Aqua-X. The DSP-2 can be set to activate at a specific time(s) of day or night and configured to function as a recycling timer with or without a maximum number of cycles setting. The DSP-2 can also be used as a âmaster pumpâ controller on the Aqua-x. A master pump would be plugged into the DSP-2. When connected to the Aqua-x 24vac module, the DSP-2 will automatically turn on the pump when any of the 24vac irrigation zones are activated.
Features & Benefits:
- LED Indicator
- Attaching Plug
- RJ12 Cable Socket
- Address Assignment
- Plug & Play
Package Content:
- 1 x Device Station
- 1 x 16ft RJ12 Cable
- 1 x 4ft RJ12 Cable
- 1 x RJ12 T-Splitter
Specification:
- Input Voltage : 100~240 VAC, 50/60Hz
- Output Current : 10A
- Output Voltage : 100~240 VAC, 50/60Hz
- Working Temperature : 32-122°F
- Working Humidity : â¤90%
- Package Dimensions : 85mm(L) x 80mm(W) x 90mm(H)
- G.W. per pack : 0.34kgs
Brand
TrolMaster
Height (in)
3.54
Length (in)
3.35
Voltage
240
Weight (lb)
0.73
Width (in)
3.15
GTIN
6970000000000
