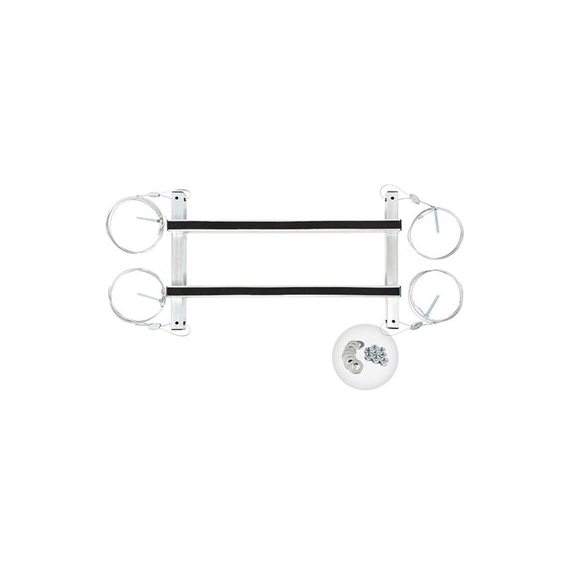

Anden Hanging Kit for A130(F) Dehumidifiers — 400lb Capacity 14ga Zinc Steel

Purpose-Built Overhead Mounting for the Anden A130 — 400lb Rated Commercial Hanging Kit

The Anden A130 is a significantly larger unit than the A70 or A100 — and it requires a hanging kit engineered to match its wider chassis dimensions and heavier operational weight. The Anden Hanging Kit A5691 is sized specifically for the A130(F), with suspension bar dimensions of 35 inches by 27 inches to properly distribute the unit's load across its chassis attachment points and provide the overhead installation geometry that the A130's airflow design requires.

With a 400-pound safe working load, the A5691 provides a strong safety margin above the A130's operational weight for long-term suspended installation in commercial grow facilities. Suspension bars are constructed from 14-gauge zinc-plated steel for corrosion resistance in high-humidity cultivation environments. The included 10-foot cables with cripple clamps, neoprene vibration isolation pads, and full hardware set provide everything needed for a complete installation — no separate purchases required.

Key Features & Benefits

• Sized for the Anden A130 Chassis — Frame dimensions of 35in L x 27in W match the A130's larger footprint, ensuring correct load distribution and proper attachment alignment that smaller hanging kits cannot provide for this unit.
• 400lb Safe Working Load — Load-rated well above the A130's operational weight, providing a substantial safety margin for permanent overhead installation in commercial cultivation environments.
• 14-Gauge Zinc-Plated Steel — Heavy-gauge suspension bars with corrosion-resistant zinc plating built to withstand the continuously high-humidity conditions of active grow rooms.
• Neoprene Vibration Isolation Pads — 1/4-inch thick neoprene between mounting hardware and the dehumidifier chassis reduces vibration transmission to overhead structure, minimizing noise in grow facilities.
• Complete Installation Hardware Included — 10ft cables with cripple clamps, 3.5in bolts, neoprene pads, flat washers, hex nuts, and gripple key — a full installation package with no separate hardware purchases required.

Who Should Use the Anden Hanging Kit A5691

This hanging kit is required for any Anden A130(F) operator choosing suspended overhead installation. It is appropriate for commercial grow facilities, professional grow rooms, and any installation where the A130 will be mounted above floor level. Do not use the A5660 (A70/A100 kit) with the A130 — the dimensional mismatch will result in improper load distribution and inadequate installation stability.

Product Specifications

Compatible Models: Anden A130(F) Dehumidifiers. Safe Working Load: Up to 400 lbs. Frame Dimensions: 35in L x 27in W. Inside Rail Width: 10.5in. Outside Rail Width: 13.5in. Material: 14-gauge zinc-plated steel. Includes: 10ft cables with cripple clamps, 3.5in bolts, 1/4in neoprene vibration pads, flat washers, hex nuts, gripple key. Product Code: #A5691.

Frequently Asked Questions

Why can't I use the A5660 hanging kit (for A70/A100) with the A130?

The A5660 features frame dimensions of 29.13in L x 18in W, while the A5691 for the A130 measures 35in L x 27in W. The A130 is a larger, wider unit that requires the wider frame to align with its chassis attachment points correctly. Using the smaller A5660 kit would result in the suspension bars not spanning the correct points on the A130 chassis, leading to uneven load distribution, potential hardware misfit, and a less stable installation.

What is the inside rail width and why does it matter?

The inside rail width (10.5in on the A5691) determines the span between the two suspension bars that run along the sides of the dehumidifier chassis. This dimension must match the chassis width of the compatible model to ensure the mounting bolts attach at the correct points. The A5691's 10.5in inside rail width is engineered specifically for the A130 chassis — this is why model-specific hanging kits are required rather than using a universal mounting solution.

Does this kit work with both the A130 and A130F models?

Yes. The A5691 is listed as compatible with the A130(F), covering both the standard A130 and the A130F variants. If you are unsure which variant you have, the product label and model number on your unit will confirm. Contact your distributor if you have questions about compatibility before installation.
