TrolMaster (AS-1) CO2 Alarm Station (audio/visual) with Cable Set

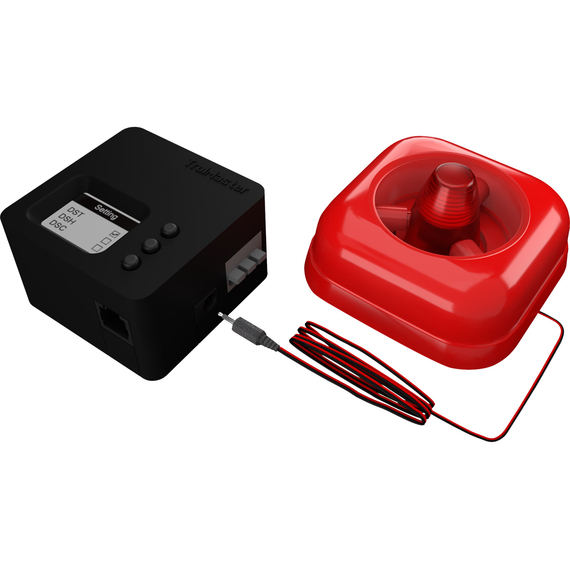

The AS-1 CO2 Alarm Station Set consists of the DSD-1 Dry contact station and the AS-5 audible-visual alarm. The AS-1 alarm set can be mounted inside or outside grow-rooms or grow facilities. It will sound both audible and visible alarms in the event where CO2 level goes above normal or safe levels.
When connected to the Devices RJ12 port and paired with the CDA-1 the AS-1 can be linked to either AL-1 or AL-2 CO2 sensors channel, or it can be linked to both sensors channels for complete redundancy.
Features & Benefits:
Package Content:
Specification:
The AS-1 CO2 Alarm Station Set consists of the DSD-1 Dry contact station and the AS-5 audible-visual alarm. The AS-1 alarm set can be mounted inside or outside grow-rooms or grow facilities. It will sound both audible and visible alarms in the event where CO2 level goes above normal or safe levels.
When connected to the Devices RJ12 port and paired with the CDA-1 the AS-1 can be linked to either AL-1 or AL-2 CO2 sensors channel, or it can be linked to both sensors channels for complete redundancy.
Features & Benefits:
- Plug and Play
- Extra Dry Contact output
Package Content:
- 1 x DSD-1
- 1x Alarm
- 1 x 16ft RJ12 Cable
- 1 x 4ft RJ12 Cable
- 1 x RJ12 T-Splitter
Specification:
- Input Voltage: 100~240 VAC, 50/60Hz
- Output Current: 24V 0.2A
- Siren: 85dB
- Strobe: Red, 120 FPM
- Dry Contact Output: 30VDC/250VAC,6A
- Working Environments: Temperature 32-122°F, Humidity<=90%
- Package Dimensions: 160mm(L) x 80mm(W) x 90mm(H)
Brand
TrolMaster
Height (in)
3.54
Length (in)
6.3
Voltage
120
Weight (lb)
1.12
Width (in)
3.35
GTIN
6970000000000
