DAB E.Sybox Max - The Most Compact and Integrated Booster Set for Commercial Irrigation Applications
Water Pressurization for Commercial Irrigation

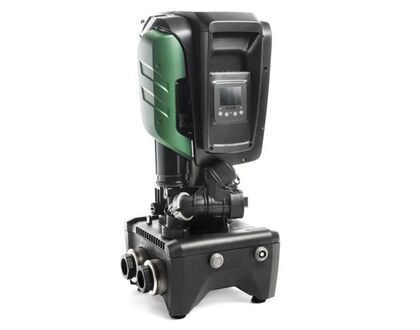

Esybox Max by Dab Pumps is an integrated water booster pumping system for water pressurization in Commercial Irrigation applications. Available in two power sizes, the Esybox Max consists of modular elements that allow different configurations to cover the needs of the application.
Modular Elements for Customizable Configurations

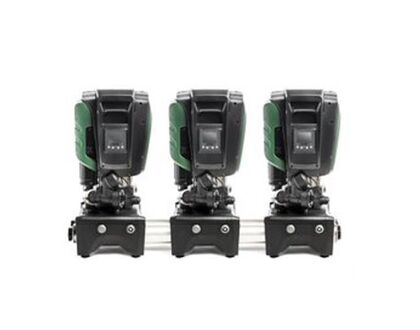

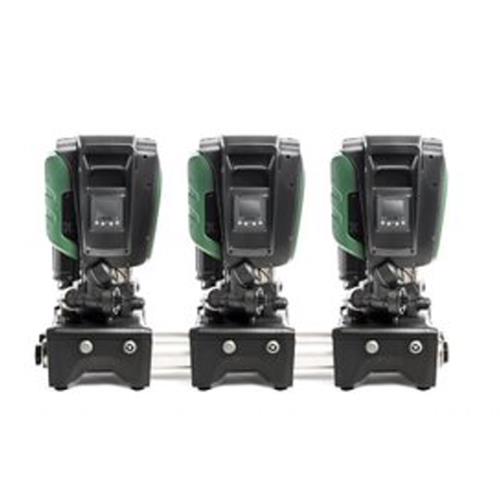

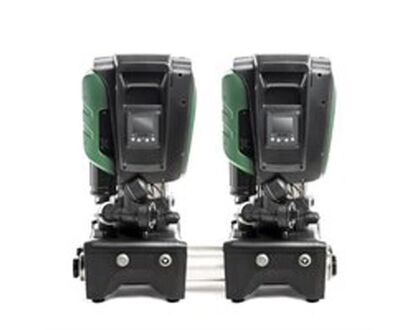

Use the DAB ESYDOCK double and triple, to combined multiple pumps into a single pump system, giving you the flexibility to configure the system to meet your specific needs.

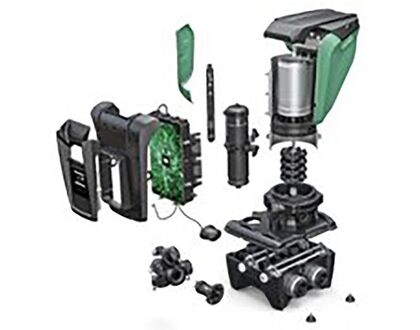

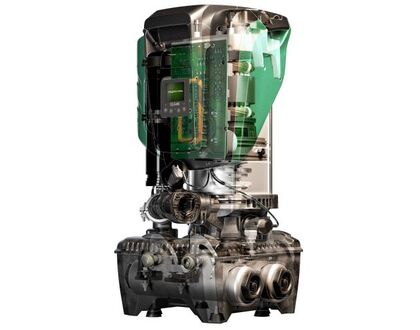

Esybox Max features an electronic vertical multi-impeller pump, with a display, pressure sensors on intake and delivery, non-return valve on delivery and an integrated expansion tank. The pump body and impellers are made of technopolymer with a steel jacket, while the water-cooled permanent magnet motor has a stainless steel motor jacket and AISI 303 stainless steel motor shaft.
The variable frequency drive keeps the pressure constant by varying the number of motor revolutions according to the request, providing consistent water pressure throughout the system.
Integration and Protection
The expansion module (esy I/O, available as an accessory) makes it possible to interface Esybox Max with the other elements of the system - (BMS). Integrated protections include protection from dry running, amperometric and abnormal voltages, overheating, freezing, anti-blocking, and anti-cycling.
Compact and Integrated

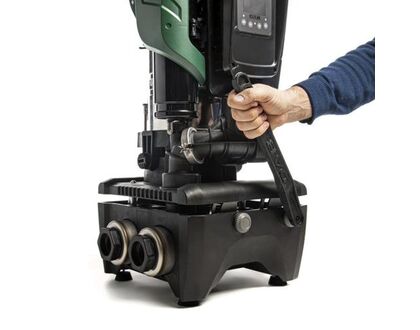

Esybox Max is the most compact and integrated booster set available on the market compared with any traditional solution. This system requires a Docking Station, available in single, double or triple.
Compliance and Certification
Esybox Max is compliant with CSA C22.2 No. 108-14- 5th Ed. – Liquid Pumps, UL 778 6th Ed. – Motor Operated Water Pumps, NSF 61 Drinking Water, and NSF 372 Drinking Water - Low Lead Content. These certifications ensure that the product meets industry standards and is safe for use in commercial irrigation applications.
Order Yours Today
Upgrade your commercial irrigation system with the DAB ESYBOX MAX electronic water pressure system. With its compact and integrated design, customizable configurations, high-performance features, and compliance with industry standards, it's the perfect solution for any irrigation application. Order yours now and experience the efficiency and reliability of the Esybox Max.
